Power Seat (Front RH Seat w/ Seat Position Memory): Notes

WARNING: This page is about a different car, the 2010 Lexus IS 350C and 2010 Lexus IS 250C. However, it is still accessible from the selected car via links, so may be relevant.

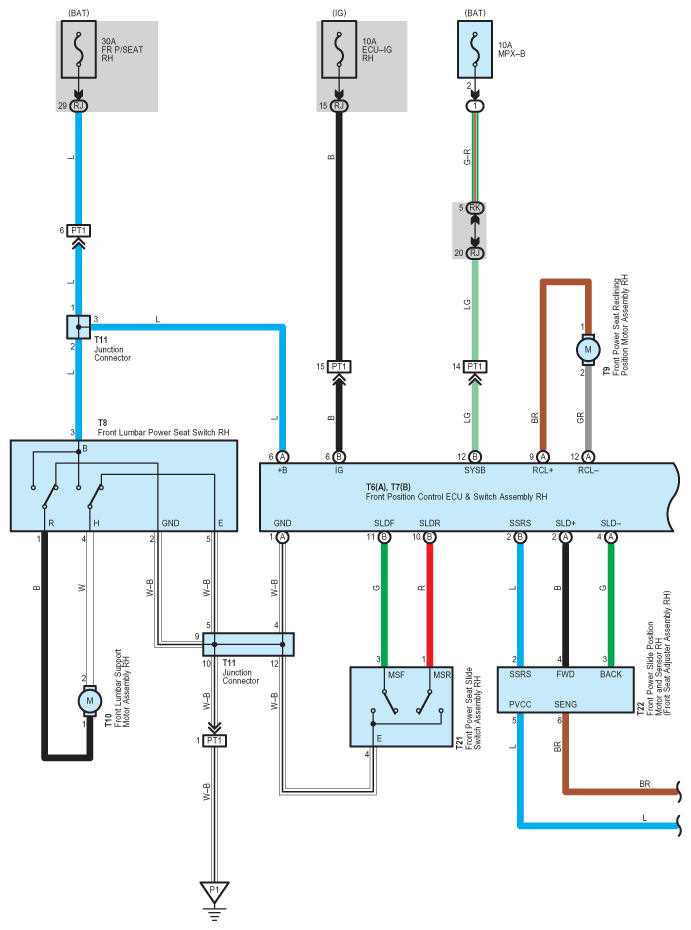

Fig 1: Power Seat (Front Rh Seat W/ Seat Position Memory) - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

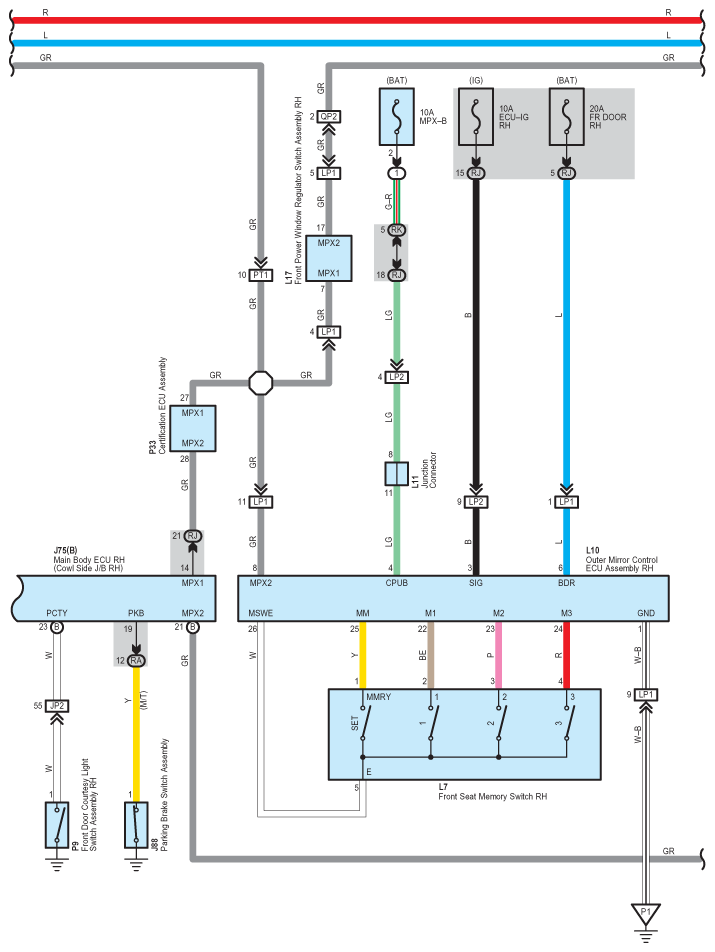

Fig 2: Power Seat (Front Rh Seat W/ Seat Position Memory) - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

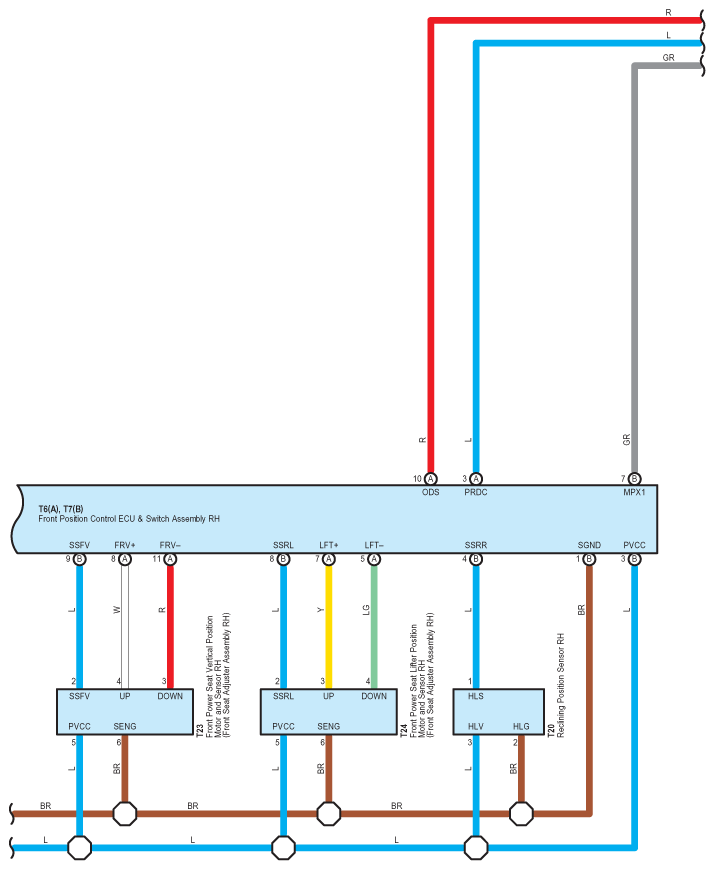

Fig 3: Power Seat (Front Rh Seat W/ Seat Position Memory) - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

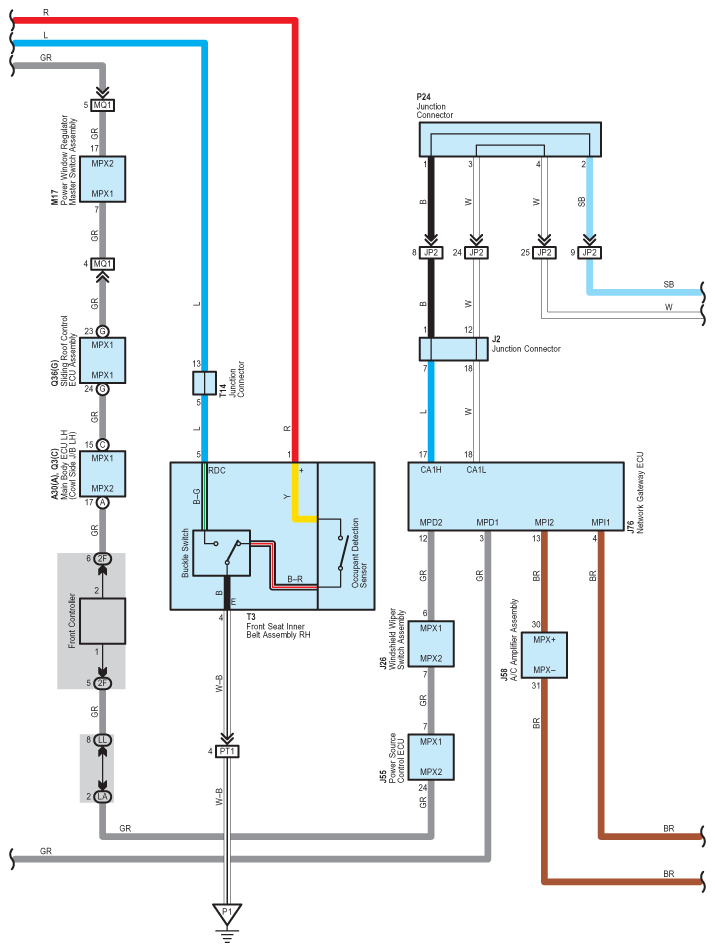

Fig 4: Power Seat (Front Rh Seat W/ Seat Position Memory) - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

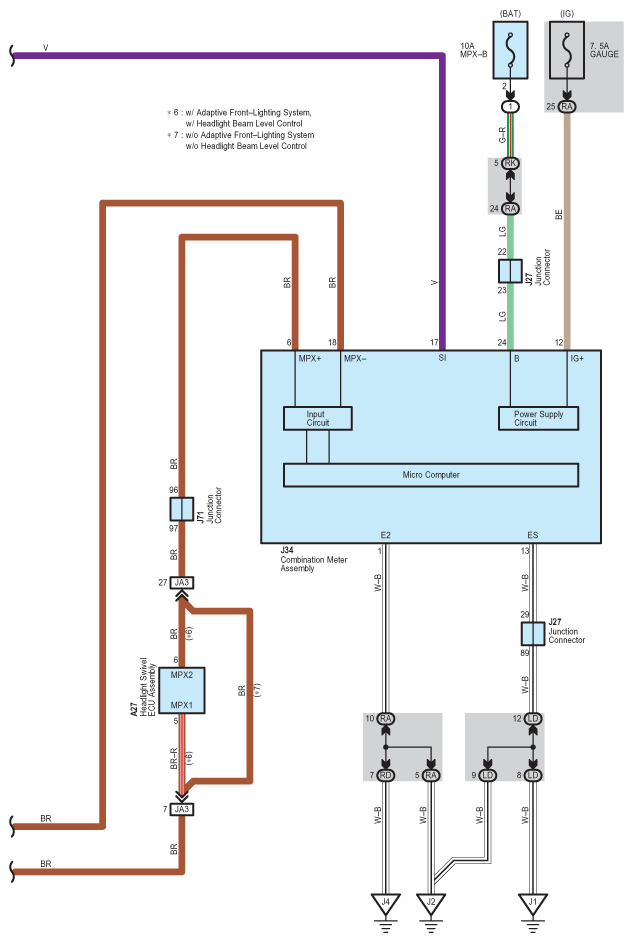

Fig 5: Power Seat (Front Rh Seat W/ Seat Position Memory) - Circuit Diagram (5 Of 7)

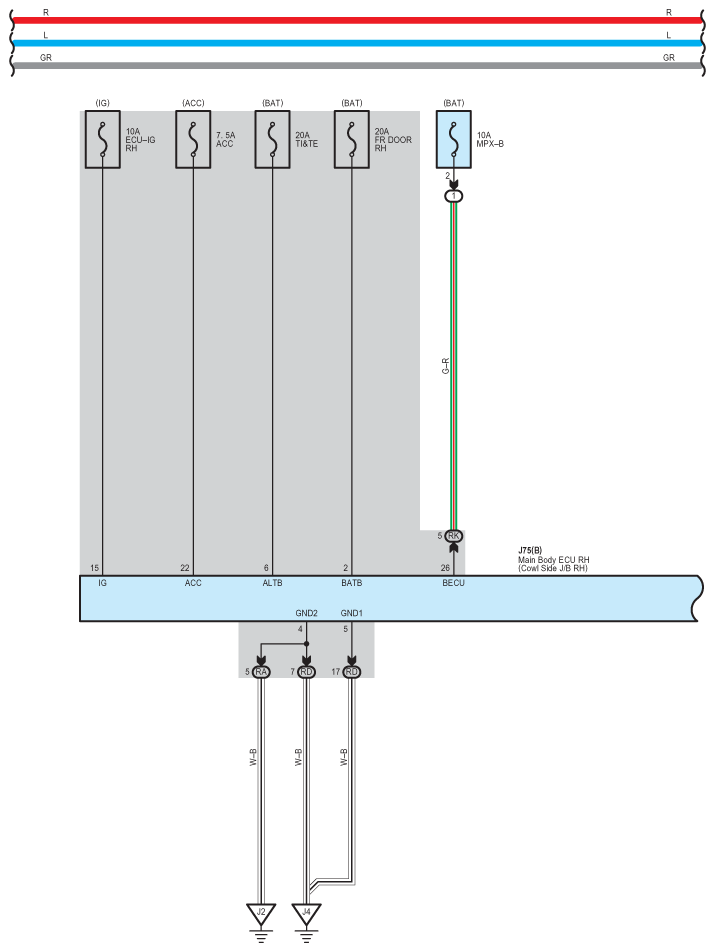

Fig 6: Power Seat (Front Rh Seat W/ Seat Position Memory) - Circuit Diagram (6 Of 7)

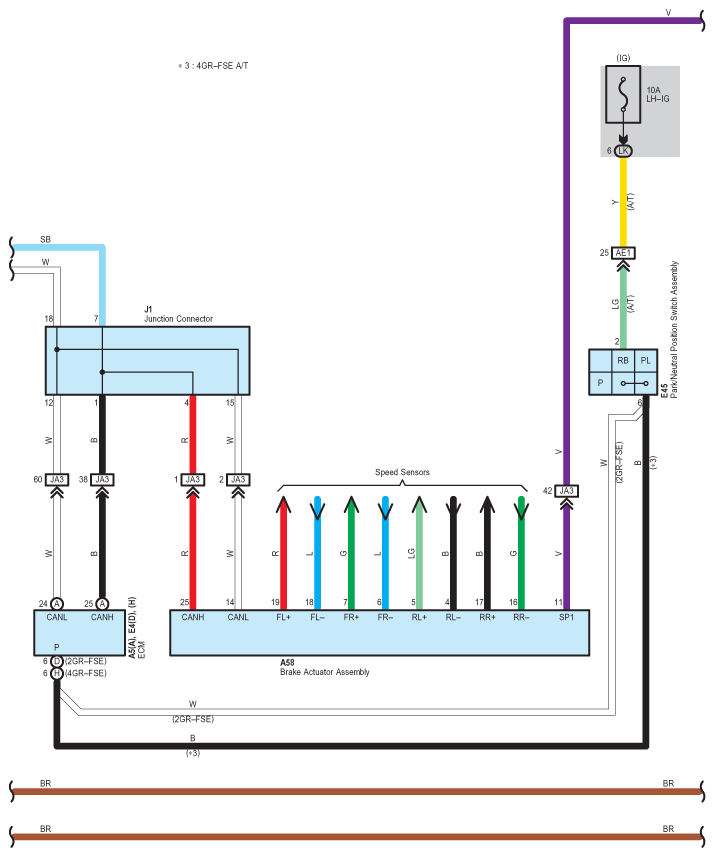

Fig 7: Power Seat (Front Rh Seat W/ Seat Position Memory) - Circuit Diagram (7 Of 7)
