Power Seat (Front RH Seat w/o Seat Position Memory): Notes
WARNING: This page is about a different car, the 2010 Lexus IS 350C and 2010 Lexus IS 250C. However, it is still accessible from the selected car via links, so may be relevant.

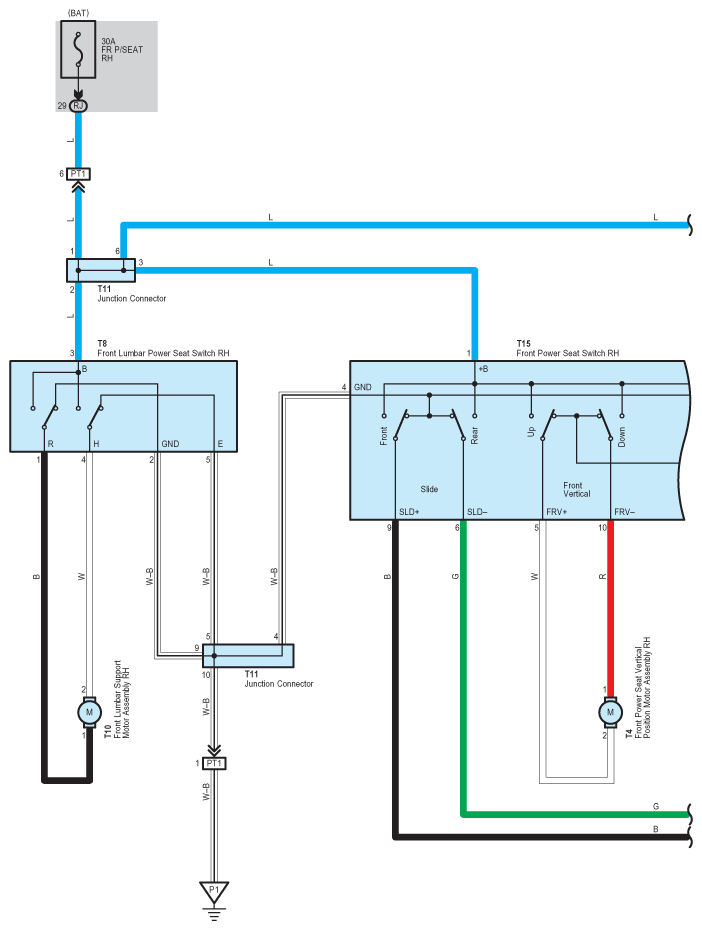

Fig 1: Power Seat (Front Rh Seat W/O Seat Position Memory) - Circuit Diagram (1 Of 2)
