IS 350 Base, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Smart Access System (Keyless Entry) (Diagnostic Codes & Circuit Tests)
>>
Smart Access System With Push-Button Start
>>
Circuit Tests
>>
Entry Lock Switch Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Entry Lock Switch Circuit: Wiring Diagram

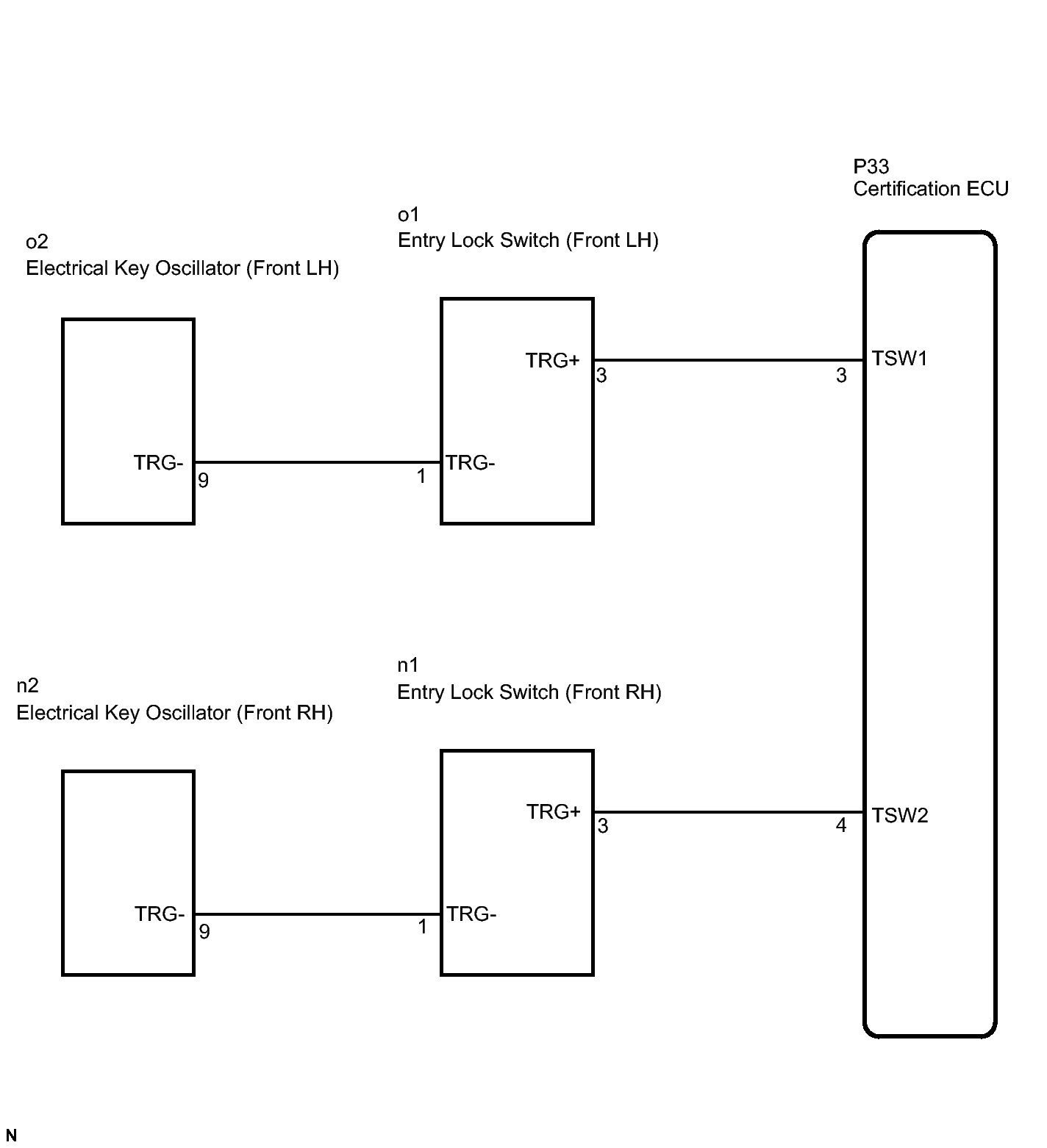

Fig 1: Entry Lock Switch Circuit - Wiring Diagram
