IG Power Source Circuit: Wiring Diagram

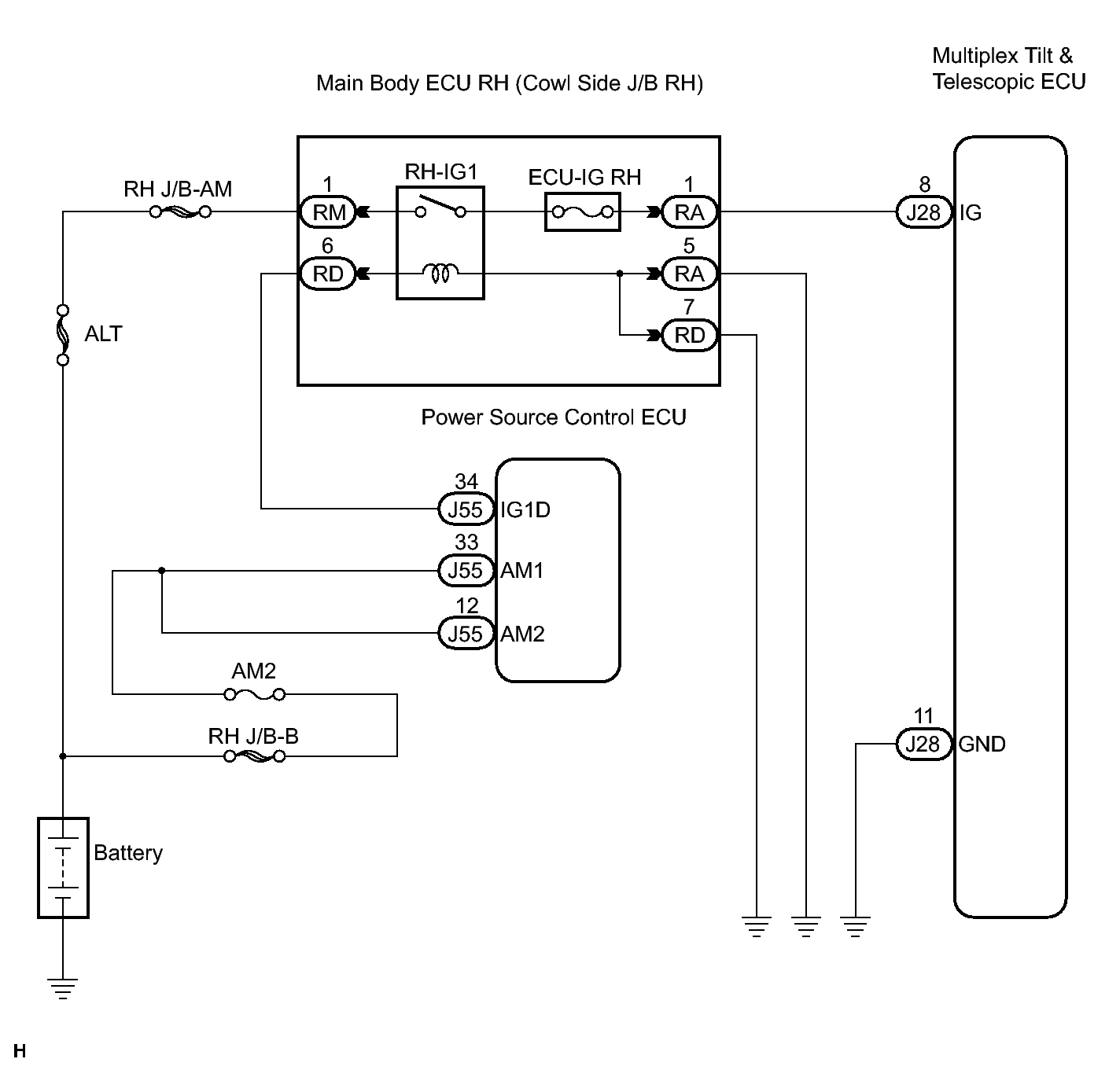

Fig 1: Power Source Control ECU - Wiring Diagram
GTY113521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
