DTC B2782: Power Source Control ECU Malfunction: Procedure

1. Measure the voltage according to the value(s) in the table below.
   Fig 1: Inspecting Steering Lock Actuator Assembly (Steering Lock ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   Tester connection (Symbols)	Condition	Specified condition
   J29-3 (IGE) - J29-1 (GND)	Specified condition is checked after performing the following: Engine switch off Turn the engine switch on (ACC or IG)	Motor activated: Below 1 V Motor not activated: 10 to 12 V
   J29-3 (IGE) - J29-1 (GND)	Specified condition is checked after performing the following: Shift the shift lever to the P position Turn the engine switch off Open the driver's door	Motor activated: Below 1 V Motor not activated: 10 to 12 V

   HINT:

   The steering lock ECU and steering lock actuator assembly are supplied as a unit.

OK → REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

NG: Go to next step

1. Disconnect the J29 connector from the steering lock actuator assembly.

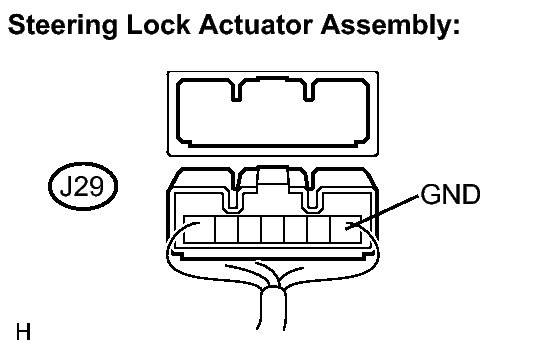

   Fig 2: Identifying Steering Lock Actuator Assembly J29 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester connection (Symbols)	Condition	Specified condition
   J29-1 (GND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the J55 connector from the power source control ECU.

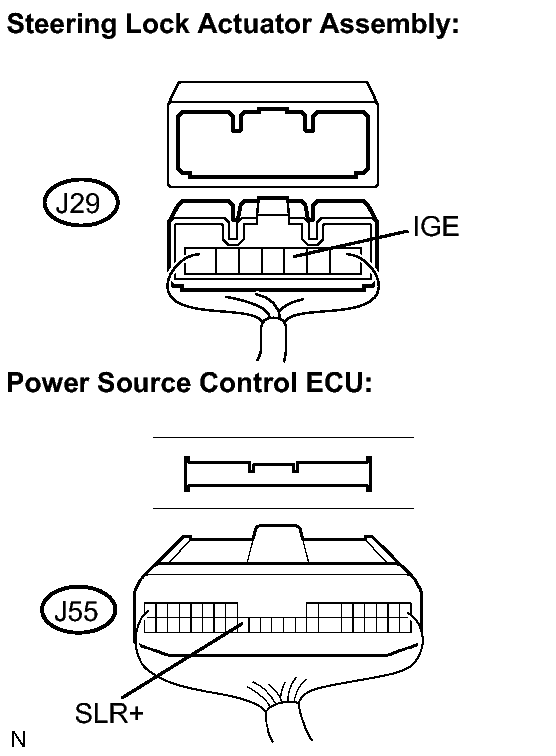

   Fig 3: Identifying Power Source Control ECU J55 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester connection (Symbols)	Condition	Specified condition
   J29-3 (IGE) - J55-32 (SLR+)	Always	Below 1 Ω
   J29-3 (IGE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE POWER SOURCE CONTROL ECU
