Crankshaft Position Sensor: Removal: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 1
  2. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 4
  3. REMOVE NO. 1 INLET AIR CLEANER  . Refer to REMOVAL - Step 19
  4. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM  . Refer to REPLACEMENT - Step 1
  5. REMOVE V-RIBBED BELT  . Refer to REMOVAL - Step 4
  6. REMOVE ENGINE UNDER COVER
  7. REMOVE REAR ENGINE UNDER COVER LH (for 2WD)  . Refer to REMOVAL - Step 12
  8. REMOVE OIL FILTER BRACKET (for 4WD)  . Refer to REMOVAL - Step 7
  9. REMOVE OIL FILTER BRACKET SUB-ASSEMBLY (for 4WD)  . Refer to REMOVAL - Step 8
  10. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE  . Refer to REMOVAL - Step 8
  11. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY  . Refer to REMOVAL - Step 9
  12. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for 2WD)  . Refer to REMOVAL - Step 10
  13. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for 4WD)  . Refer to REMOVAL - Step 11
  14. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

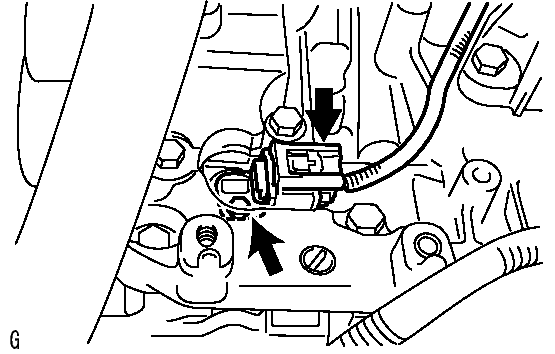

      Fig 1: Identifying Crankshaft Position Sensor
      GTY145405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor.
