Multi-display Power Source Circuit: Procedure
- CHECK HARNESS AND CONNECTOR (DISPLAY AND NAVIGATION MODULE DISPLAY - BATTERY AND BODY GROUND)
- Disconnect the L59 display and navigation module display connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition L59-10 (GND1) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage

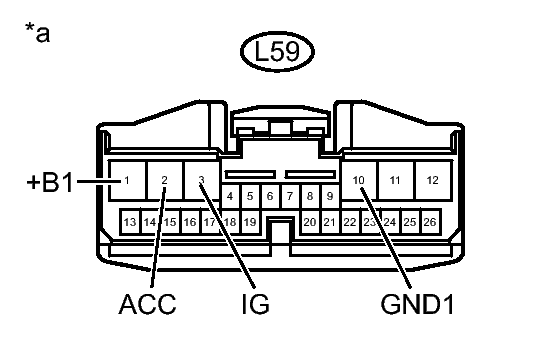

Tester Connection Condition Specified Condition L59-1 (+B1) - Body ground Always 11 to 14 V L59-2 (ACC) - Body ground Engine switch on (ACC) 11 to 14 V L59-3 (IG) - Body ground Engine switch on (IG) 11 to 14 V TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Display and Navigation Module Display)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 2
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
