Power Source Circuit: Procedure

  1. INSPECT FUSE (STR LOCK)
    1. Remove the STR LOCK fuse from the main body ECU.
    2. Measure the resistance of the fuse.

      Standard resistance

      Tester Connection Condition Specified Condition
      STR LOCK fuse Always Below 1 Ω

    NG → REPLACE FUSE

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR - BODY GROUND)

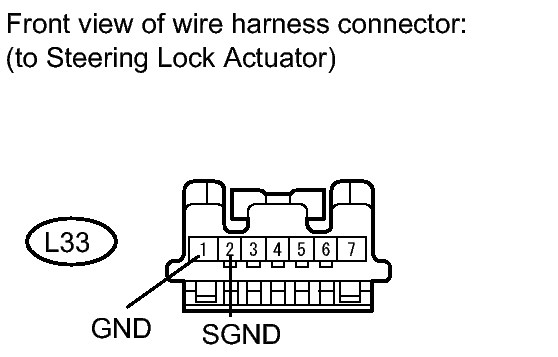

    Fig 1: Checking Harness And Connector (Steering Lock Actuator - Body Ground)
    GTY289235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L33 steering lock actuator connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      L33-1 (GND) - Body ground Always Below 1 Ω
      L33-2 (SGND) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (BATTERY - STEERING LOCK ACTUATOR)

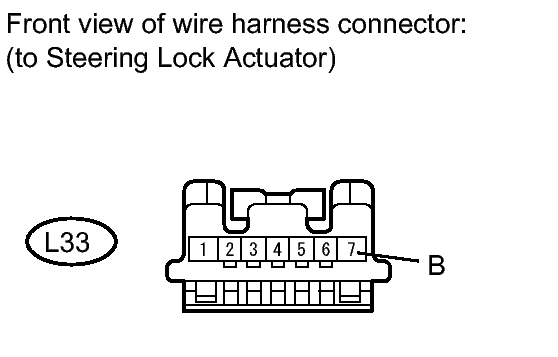

    Fig 2: Identifying L33 Steering Lock Actuator Connector Terminal
    GTY285670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L33 steering lock actuator connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Condition Specified Condition
      L33-7 (B) - Body ground Always 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   4

  4. PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
