DTC C1595/55: Lost Communication with Steering Angle Sensor Module; DTC C15C4/68: Steering Angle Signal (Test Mode DTC): Procedure

  1. CHECK DTC (CAN COMMUNICATION SYSTEM)
    1. Check for DTCs in the CAN communication system. Refer to DIAGNOSIS SYSTEM .
      RESULT

      Result Proceed to
      DTC is not output A
      DTC is output B

    B → See step   7

    A: Go to next step

  2. CHECK STEERING ANGLE SENSOR
    1. Check if a steering angle sensor that complies with the vehicle specifications is installed.

      OK

      A steering angle sensor that complies with the vehicle specifications is installed.

    NG → See step   6

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (STEERING CONTROL ECU - STEERING ANGLE SENSOR)

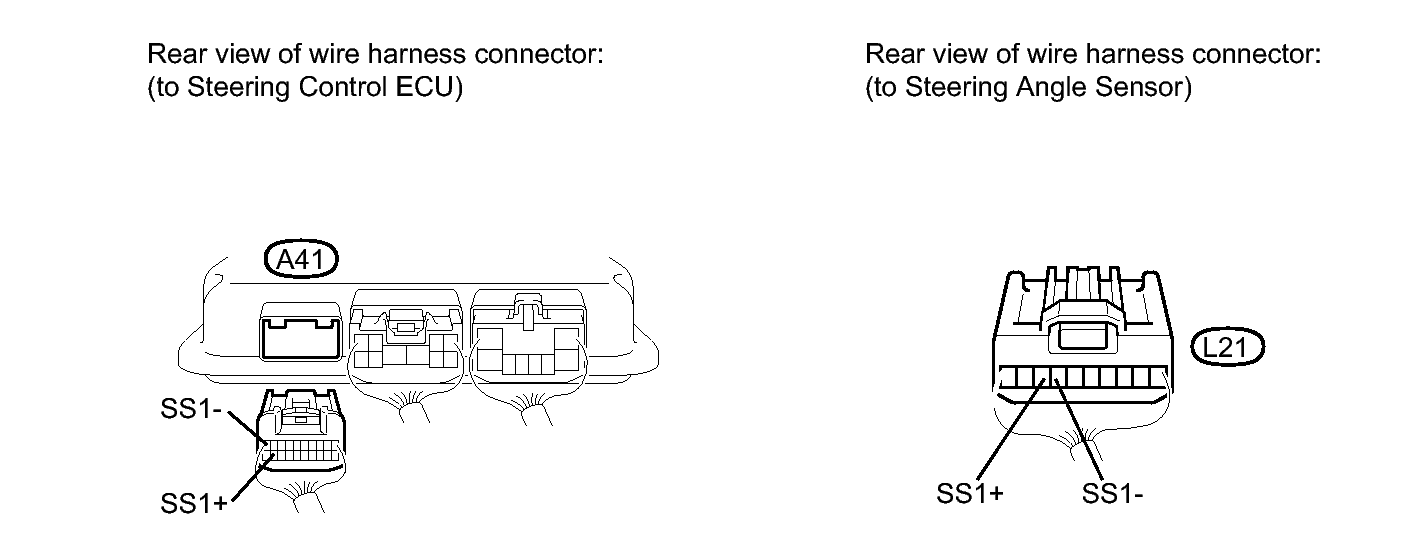

    Fig 1: Checking Harness And Connector (Steering Control ECU - Steering Angle Sensor)
    GTY110925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A41 steering control ECU connector.
    2. Disconnect the L21 steering angle sensor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      A41-10 (SS1-) - L21-7 (SS1-) Always Below 1 Ω
      A41-19 (SS1+) - L21-8 (SS1+) Always Below 1 Ω
      A41-19 (SS1+) - Body ground Always 10 kΩ or higher
      A41-10 (SS1-) - Body ground Always 10 kΩ or higher
      A41-19 (SS1+) - A41-10 (SS1-) Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK STEERING ANGLE SENSOR
    1. Disconnect the A41 steering control ECU connector.

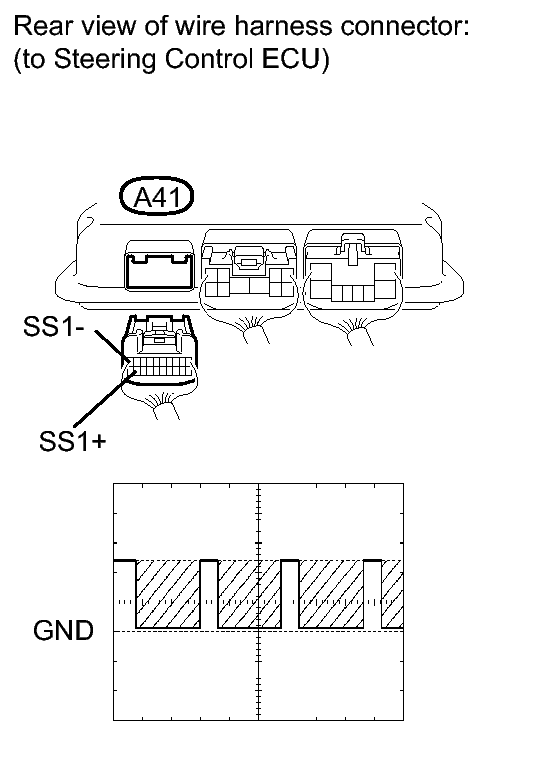

      Fig 2: Identifying A41 Steering Control ECU Connector Terminals
      GTY110893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The resistance must be measured after the steering angle sensor connector is connected.

    2. Adjust the shift lever to neutral.
    3. Jack up the vehicle.
    4. Turn the engine switch on (IG).
    5. Check the waveform of the steering angle sensor using an oscilloscope.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      A41-19 (SS1+) -
      A41-10 (SS1-)
      Engine switch on (IG), rotate steering wheel slowly Pulse generation
      (0 to 5 V)

      HINT:

      The output voltage should fluctuate up and down similarly to the diagram when the wheel is turned slowly.

    NG → See step   6

    OK → See step   5

  5. REPLACE STEERING CONTROL ECU. Refer to  REMOVAL
  6. REPLACE STEERING ANGLE SENSOR. Refer to  REMOVAL
  7. GO TO CAN COMMUNICATION SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING). Refer to  HOW TO PROCEED WITH TROUBLESHOOTING
