System Description

WARNING:

If using a pacemaker, be sure to read the manual of the pacemaker before using the key, as the radio waves of the key may affect the pacemaker.

SMART ACCESS SYSTEM WITH PUSH-BUTTON START DESCRIPTION
1. In addition to conventional mechanical key and wireless door lock control functions, the smart access system with push-button start enables door locking/unlocking, steering lock releasing, engine control system starting and back door opening without operating the key. The only requirement is that the key is in the possession of the user.
  - This system is controlled by the certification ECU (smart key ECU assembly). When the certification ECU (smart key ECU assembly) detects the presence of the key in one of the detection areas, it identifies and checks the ID code, and outputs operation signals to the related ECU in accordance with their functions.
  - The detection areas are formed by 4 oscillators and 4 antennas (4 door oscillators, the back door antenna and 3 indoor antennas).

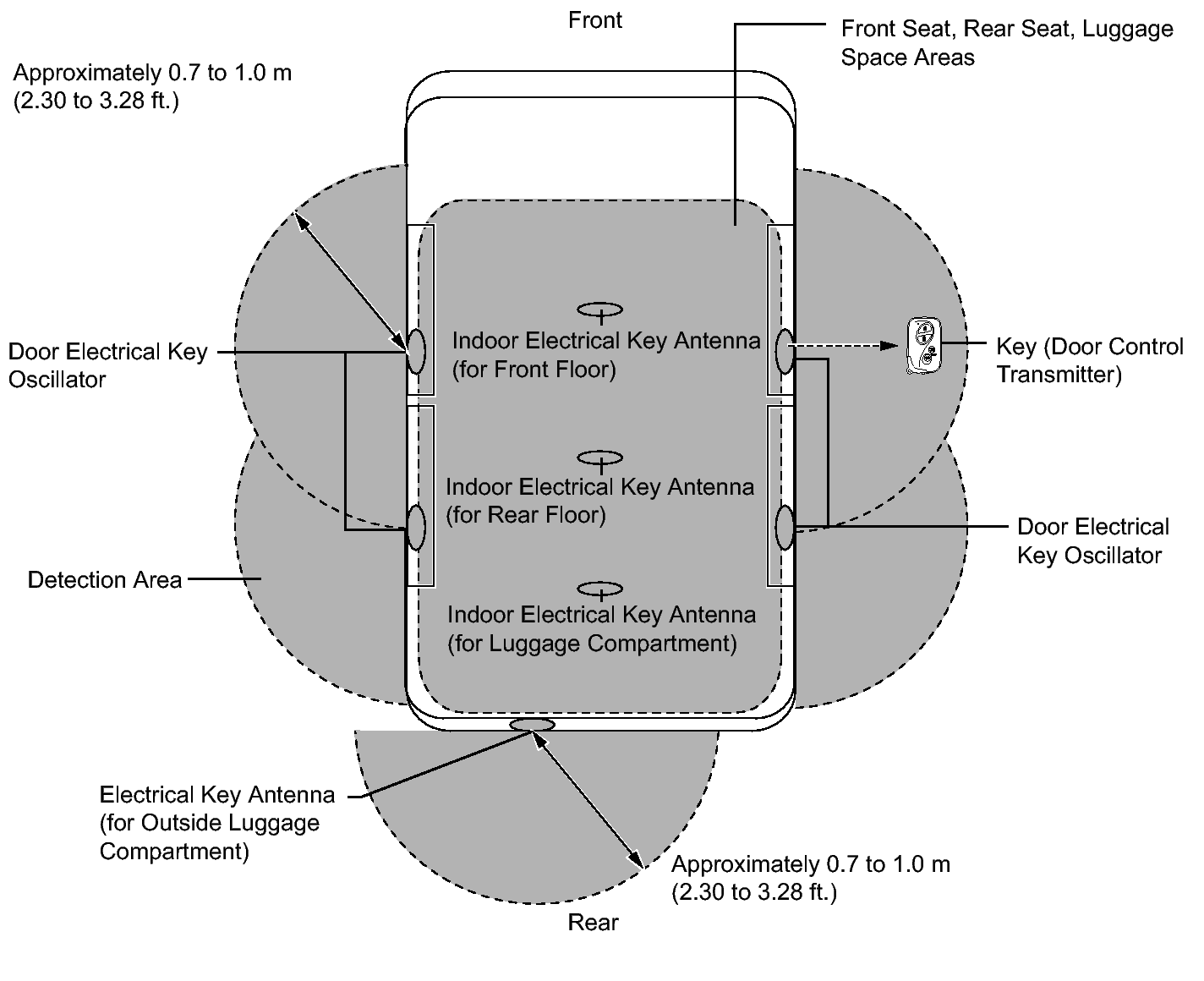

DETECTION AREA

Fig 1: Identifying Detection Area
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Precautions for the entire system:
  - Be sure to carry the key during inspection of the smart access system with push-button start.
  - As weak radio waves are used to detect the key, the key detection area may decrease, or the key may not be detected correctly in the following situations.
    1. The key battery is depleted.
    2. Any facilities that generate strong radio waves, such as a TV tower, power plant, broadcast station or gas station, are located near the inspection site.
    3. A wireless device, such as a cell phone, is carried with the key.
    4. The key is in contact with or covered with metal.
    5. Electric wave type keyless entry systems are being operated nearby.
    6. The key is located near a device that generates high voltage or noise.
    7. Film with some metallic content is stuck to the back glass.
      HINT:

      In this case, remove the cause or unlock the door using the mechanical key.
  - Even if the key is in the vehicle exterior key detection area, the key may not operate properly due to the vehicle body design.
  - The key may not be detected correctly if it is around the vehicle windows, the door handle or center of the bumper, even when it is in the detection area outside the vehicle.
  - The key may not be detected correctly if it is on the instrument panel, rear package tray or floor, or in the glove box, even when it is in the detection area inside the vehicle.
  - The key may not operate if the key is not held properly.
  - The smart access system with push-button start does not operate in the following conditions:
    1. The smart access system with push-button start is canceled.
    2. The key battery is completely depleted (the indicator does not blink when pushing any of the switches on the key).

FUNCTION OF MAIN COMPONENTS

Component	Function	Installation Position
Certification ECU (Smart key ECU assembly)	Controls the smart access system with push-button start in accordance with signals from each oscillator, various switches, ECUs and the key. Performs key verification. Performs vehicle interior/exterior transmission. Performs occupant sensor control. Sends lock/unlock commands during entry function. Sends steering lock/unlock commands. Sends immobilizer set/unset commands. Records verification codes.	Lower right of steering wheel
Main body ECU	Controls the power source mode function in accordance with signals from various switches, ECUs and the combination meter. Controls the ACC/IG power source by turning it on/off. Sends an engine start command to the ECM. Controls the indicator and word illumination of the engine switch. Activates starter relay.	Rear side of glove box
ID code box (Immobilizer code ECU)	Receives a command from the certification ECU (smart key ECU assembly), and sends an immobilizer set/unset command to the ECM. Records verification codes.	Rear of A/C unit
Indoor electrical key antenna (for front floor, rear floor and luggage compartment)	Receives a request signal from the certification ECU (smart key ECU assembly), and forms the detection area in the vehicle interior.	Front Floor: Below center console rear Rear Floor: Below rear no. 1 seat Luggage Compartment: Below rear no. 2 seat
Door control receiver	Receives the ID code from the key in the actuation area and transmits it to the certification ECU (smart key ECU assembly).	D pillar
Electrical key antenna (for outside luggage compartment)	Receives a request signal from the certification ECU (smart key ECU assembly), and forms the actuation area around the back door.	Inside rear bumper
Back door opener switch	Transmits a back door open request signal to the main body ECU.	Right side of license garnish
Back door lock switch	Transmits a back door lock request signal to the certification ECU (smart key ECU assembly).	Right side of license garnish
Door electrical key oscillator (for driver, front passenger, rear LH, rear RH side doors)	Receives a request signal from the certification ECU (smart key ECU assembly), and forms the detection area around each door.	Inside door
Outside door handle (for driver, front passenger, rear LH, rear RH side doors) (antenna)	Transmits request signals.	Inside door handle
Outside door handle (for driver, front passenger, rear LH, rear RH side doors) (touch sensor)	Detects when a person touches the inside of the outside handle.	Inside door handle
Outside door handle (for driver, front passenger, rear LH, rear RH side doors) (lock switch)	Transmits door lock request signals to the certification ECU (smart key ECU assembly).	Surface of door handle
Key	When an LF wave1 that is output from the vehicle interior/exterior antenna is received, RF wave2 format conversion is performed on the key ID, vehicle ID and other information, and an RF wave2 is then output. When the lock/unlock switch on the key is pressed, the signal is converted to an RF wave2 and is then output. When the wave output from the engine switch immobilizer amplifier is received, the key ID, vehicle ID and other information is output through immobilizer communication. The key is equipped with a mechanical key for unlocking doors when the battery is fully depleted.	-
Wireless door lock buzzer Combination meter Multi-information Display Buzzer	When the certification ECU (smart key ECU assembly) detects human errors such as those below, it warns the driver by sounding the wireless door lock buzzer, displays information and sounds the buzzer in accordance with the request signal from the ECU. Example: Key is taken outside the vehicle. Driver leaves the vehicle while the engine is still running. Driver leaves the vehicle while the shift lever is in a position other than P.	Inside engine compartment

HINT:

*1: LF waves (134 kHz) check if the key is in the vehicle interior or not.
*2: RF waves (314.35 MHz) are emitted from the key in response to the LF waves, and are sent to the door control receiver.

CONSTRUCTION AND OPERATION
1. Key:
  A total of 7 keys can be registered.
  1. Electrical key transmitter:
    The electrical key transmitter consists of a mechanical key, a transmitter function for the wireless door lock control and a transceiver for the smart access system with push-button start.
    - The transceiver function for the smart access system with push-button start receives the signals from the oscillators and sends the ID code to the door control receiver.
    - The transmitter function for the wireless door lock control has a lock switch, unlock switch and panic switch.
    - This mechanical key can lock or unlock all the doors. To lock or unlock the doors, remove the cap from the driver door outside handle, insert the key into the door key cylinder, and then turn it to the lock or unlock position.

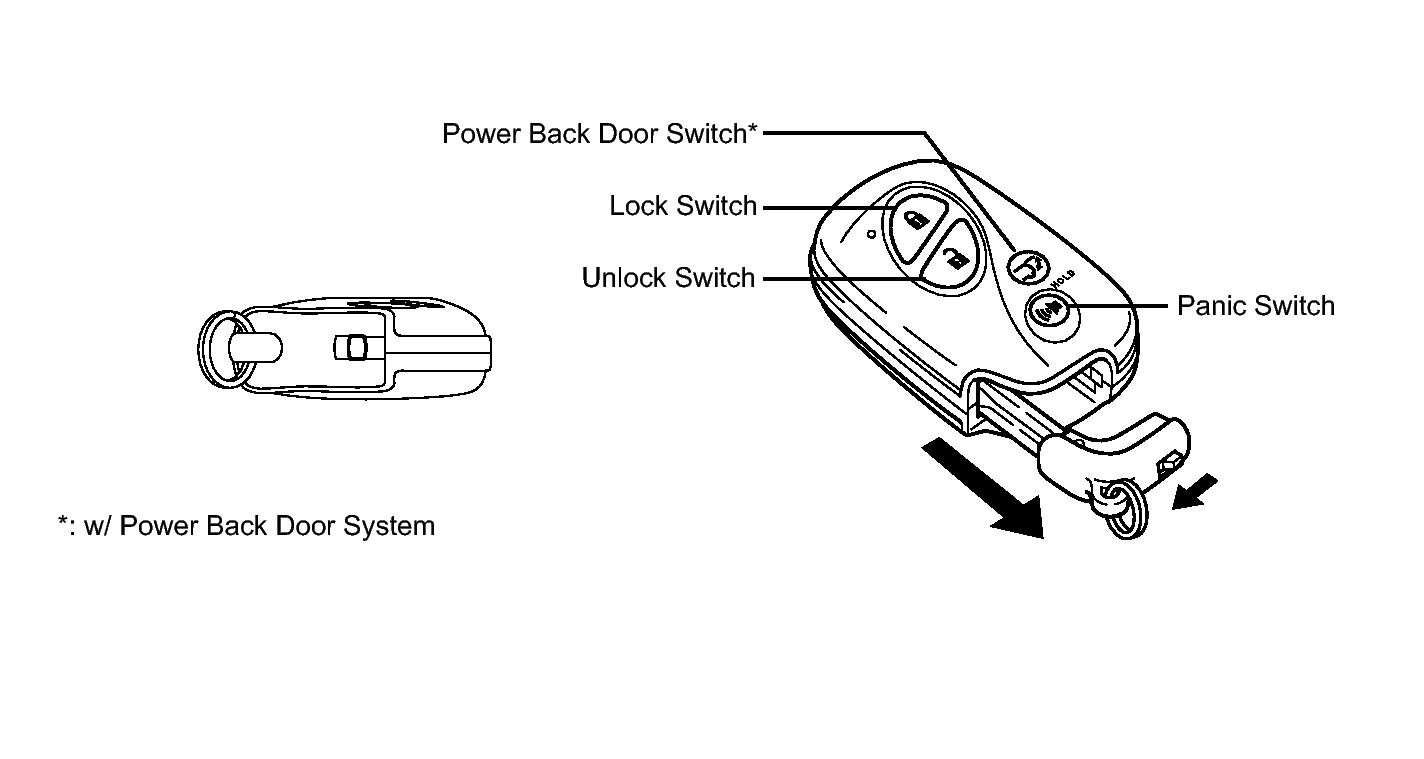

    Fig 2: Identifying Electrical Key Transmitter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Card type key:

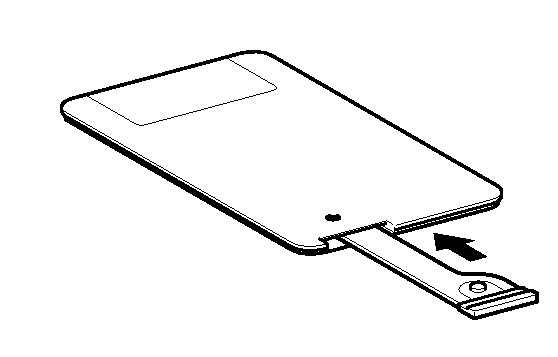

    Fig 3: Identifying Card Type Key
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    The card type key consists of a mechanical key and a transceiver for the smart access system with push-button start.
    - The transceiver function for the smart access system with push-button start receives the signals from the oscillators and sends the ID code to the door control receiver.
    - This mechanical key works for the driver door and glove box, but cannot start the engine.
2. Oscillator (each door oscillator, front floor, rear floor and luggage compartment indoor antenna, and back door antenna)
  Each oscillator transmits the request signal received from the certification ECU (smart key ECU assembly), and forms a key detection area to detect the presence of a key. The detection area formed by each door oscillator and back door outside antenna is approximately 0.7 to 1.0 m (2.30 to 3.28 ft.) from the outside handle of each door or the center of the rear bumper.

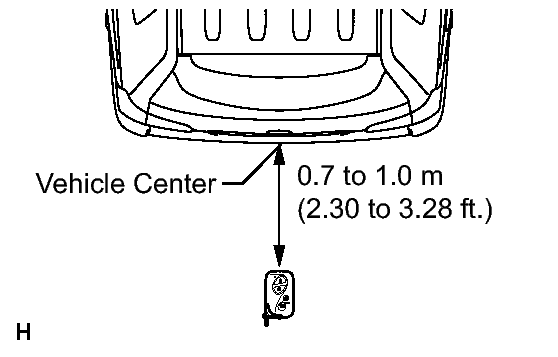

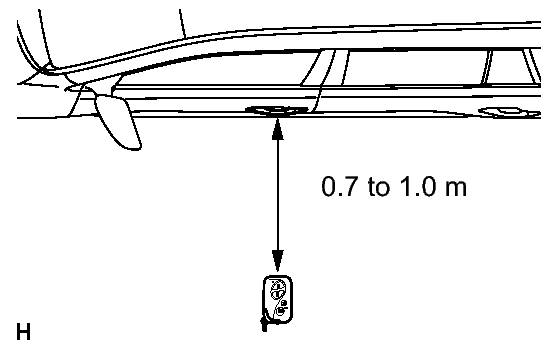

  - The detection area of each door oscillator is formed by transmitting a request signal every 0.25 seconds while the engine switch is off and each door is locked. In this way, it detects the proximity of a key. During entry lock, the detection area is formed with the lock switch on.
  - The detection area of the back door antenna is formed when the back door opener switch is on.
  - The detection area of the indoor antenna (for front floor, rear floor and luggage compartment) is formed when the driver door is opened or closed, during starting, when a warning is activated, or when the lock switch is on.

ENTRY FUNCTION OPERATION

The smart access system with push-button start has the following functions.

Function	Outline
Mechanical Key	Operation is the same as a conventional mechanical key.
Wireless Door Lock Control	This function remotely locks and unlocks all doors and the back door. Operation is the same as the wireless door lock control system. However, the receiver in the certification ECU (smart key ECU assembly) uses the entry door control receiver to control locking and unlocking.
Entry Illumination	When a person carrying the key enters the detection area, the door will enter unlock standby mode and the room light and door mirror foot light will illuminate.
Entry Unlock	When the key is located in the detection area of the door oscillator, the door will unlock by touching the inside of the outside door handle.
Entry Unlock Mode Switching. Refer to CUSTOMIZE PARAMETERS	Changes the doors that can be unlocked with the entry unlock function between 2 modes. Driver door unlock mode All door unlock mode
Entry Lock	When the key is located in the detection area of the door oscillator and the engine switch is off, the door can be locked by pressing the lock switch on the outside door handle.
Entry Back Door Open	When the key is in the detection area of the back door antenna (outside), the back door opens by pressing the back door opener switch.
Memory Call	This function operates the driving position memory system in accordance with the key ID code.
Power Window Close Function Sliding Roof Close Function	Pressing the door handle entry lock switch for approximately 3 seconds or more causes all power windows and the sliding roof to close while sounding the wireless buzzer.
Key Lock-in Prevention	Prevents lock-in of the key if the door is locked using the outside door handle while the key is still inside the vehicle.
Warning	When any of the situations below occur, the smart access system with push-button start causes the certification ECU (smart key ECU assembly) to sound the buzzer in the combination meter and the wireless door lock buzzer, and display information in order to alert the driver. Shift lever not in P (power source cut reminder) vehicle exit warning Key reminder warning Shift lever in P (power source cut reminder) vehicle exit warning Entry door ajar warning Passenger has brought key out of vehicle warning Key is not within detection area warning Key lock-in prevention function buzzer Key battery low warning
Battery Saving	If the key is constantly located within the actuation area of the door oscillator, the system maintains periodic communication with the key. Therefore, if the vehicle remains parked in that state for a long time, the key battery and vehicle battery could be drained. For this reason, the vehicle has controls for saving battery power.
Key Cancel. Refer to CUSTOMIZE PARAMETERS	The following key functions can be canceled: Entry Unlock/Lock Entry Ignition Memory Call Entry Back Door Open Key Lock-in Prevention Warning

WIRELESS DOOR LOCK AND UNLOCK AND PANIC AND POWER BACK DOOR* FUNCTION
Push the lock/unlock/panic/power back door* switch on the key to operate each function.

*: w/ Power Back Door System
ENTRY UNLOCK FUNCTION
1. The detection area is formed by communication between a door oscillator and the certification ECU (smart key ECU assembly) when the door is locked in order to detect the person carrying the key.
2. When the person carrying the key enters the detection area around the vehicle, the matching of the ID codes for a door oscillator and key will automatically be performed. After the matching is completed, the door will enter unlock standby mode.
3. In unlock standby mode, the antenna built into the outside handle starts sensing. If the outside handle is held (the back side of the handle is touched), the door unlock operation will be performed. At this time, the hazard warning light blinks twice and the wireless door lock buzzer sounds twice.
4. If any of the doors are not opened after a door unlock operation, all doors will automatically lock after 60 seconds.
ENTRY LOCK FUNCTION
1. After leaving the vehicle carrying the key, push the lock switch on the outside handle when all the doors are closed.
2. The certification ECU (smart key ECU assembly) determines whether the key is located inside or outside of the cabin based on the information from a door oscillator and indoor antenna. Then matching of the ID codes is performed.
3. When the matching result shows that the ID codes of the key and indoor antenna do not match and the ID codes of the key and door oscillator match, the door lock function will operate. At this time, the hazard warning lights blink once and the wireless door lock buzzer sounds once.
4. If the key is located inside of the cabin, the door lock function will not operate and the alarm buzzer (beep sound) will sound for 2 seconds.
ENTRY BACK DOOR OPEN FUNCTION
Stand in front of the back door with the key and push the back door opener switch to start the matching of the ID codes for the back door antenna. If the ID codes match, the back door open operation will be performed.
PREVENTION OF KEY LOCK-IN FUNCTION
1. If you attempt to lock the door through keyless operation (move the lock knob to the lock position and then close the door) with the key in the cabin, the system determines that the key is located in the cabin and unlocks the door.
2. If the back door is closed with the key in it, the alarm will sound and the back door can be opened only when all the doors are locked in order to prevent key lock-in in the vehicle.
ENTRY ILLUMINATION FUNCTION
In order to improve ease of entering and exiting the vehicle at night, the room lights illuminate when the key is brought near the vehicle.
ENTRY POWER WINDOW FUNCTION
1. Pressing the door handle lock switch for 3 seconds or more operates the door window close operation of all of the windows and the sliding roof close operation.
2. If the entry power window function is operating and the door handle lock switch is released, the entry power window operation will stop.
  HINT:

  For more information about the entry power window function, refer to the Power Window Control System. Refer to OPERATION CHECK .
MEMORY CALL FUNCTION
1. After unlocking the driver door using the key ID and opening the driver door, the seat automatically moves to the position associated with the key ID.
  HINT:

  For more information about the memory call function, refer to the Front Power Seat Control System. Refer to OPERATION CHECK .

WARNING FUNCTION

General:

When any of the situations below occur, the smart access system with push-button start responds to alert the driver.

Warning Function Operation Condition	Situation
Shift lever not in P (power source cut reminder) vehicle exit warning	A
Key reminder warning	B
Shift lever in P (power source cut reminder) vehicle exit warning	C
Entry door ajar warning	D
Passenger has brought key out of vehicle warning	E
Key is not within detection area warning	F
Key lock-in prevention function buzzer	G
Key battery low warning	H

Situation A:

Shift lever not in P (power source cut reminder) vehicle exit warning

With shift lever not in P, door is opened and vehicle exit (while holding key) is attempted

Reason for warning: Sudden vehicle start prevention, vehicle theft prevention, vehicle roll-away prevention
Warning start condition: Shift lever is not in P, engine switch is on (ACC) or on (IG), driver side door is opened and vehicle speed is 5 km/h or less (3.107 mph)
Warning stop condition: Engine switch is off, shift lever is in P, vehicle speed is above 0 km/h (0 mph), or driver side door is closed
Warning description	Combination meter buzzer	Multi-buzzer	Sounds continuously (beep)
	Combination meter display	Combination meter information	"Shift to P Range"
	Wireless buzzer	None
Recommended user action		Move shift lever to P

With shift lever not in P, door is opened, key is brought out of vehicle, door is closed, and movement away from vehicle is attempted

Reason for warning: Sudden vehicle start prevention, vehicle theft prevention, vehicle roll-away prevention
Warning start condition: Shift lever is not in P, engine switch is on (ACC) or on (IG), opened driver side door is closed, vehicle speed is 0 km/h (0 mph) and key is not in detected in vehicle interior and luggage interior
Warning stop condition: Key is detected in vehicle interior and luggage interior: Buzzer stops and "Shift to P Range" is displayed on combination meter Vehicle speed is more than 0 km/h (0 mph): Buzzer stops, "Key is not detected" - "Check key position" is displayed on combination meter Engine switch off: All warnings are turned off
Warning description	Combination meter buzzer	Multi-buzzer	Sounds continuously (beep)
	Combination meter display	Combination meter information	Information below is displayed alternately on combination meter "Shift to P Range" "Key is not detected" - "Check key position"
	Wireless buzzer	Sounds continuously (beep)
Recommended user action		Move shift lever to P

Situation B:

Key reminder warning

Steering lock/unlock set, driver door is opened and movement away from vehicle is attempted

Reason for warning: Vehicle theft prevention, required by law
Precondition: Remote start is not operating
Warning start condition: One of following conditions is met Engine switch on (ACC) or off, and driver door opened Engine switch off, steering lock/unlock set and driver door opened
Warning stop condition: One of following conditions is met Engine switch is on (IG) or driver door is closed Engine switch on (ACC) or off, and steering lock/unlock is set
Warning description	Combination meter buzzer	Multi-buzzer	Sounds intermittently (several "pon" sounds)
	Combination meter display	Combination meter information	None
	Wireless buzzer	None
Recommended user action		If engine switch is on (ACC) or on (IG), turn engine switch off and close driver door

Situation C:

Shift lever in P (power source cut reminder) vehicle exit warning

With shift lever in P, driver door is opened, key is brought out of vehicle, driver door is closed, and movement away from vehicle is attempted

Reason for warning: Vehicle theft prevention, "Engine control system cannot be restarted" prevention, battery depletion prevention
Warning start condition: Shift lever is in P, engine switch is on (ACC) or on (IG), opened driver side door is closed and key is not in detected in vehicle interior and luggage interior
Warning stop condition: Engine switch on (ACC) or off, or key is detected in vehicle interior and luggage interior
Warning description	Combination meter buzzer	Multi-buzzer	Sounds once (1 "pon" sound) (when key is not detected continuously, sounds again when vehicle is first driven)
	Combination meter display	Combination meter information	"Key is not detected" - "Check key position"
	Wireless buzzer	Sounds 3 times (short beeps)
Recommended user action		Turn engine switch off and exit vehicle while holding key

With shift lever in P and either engine switch on (ACC) or steering lock/unlock set, driver door is opened, user moves away from vehicle, and door handle lock switch is pressed in an attempt to perform entry lock operation

Reason for warning: Vehicle theft prevention, battery depletion prevention
Precondition: Change door control lock switch from off to on
Warning start condition: Shift lever is in P, engine switch is on (ACC) or on (IG), all doors are closed, key is detected in vehicle exterior, key is not detected in vehicle interior and vehicle speed is 0 km/h
Warning stop condition: One of following conditions is met Engine switch off. Key is detected in vehicle interior and luggage interior. Vehicle speed is more than 0 km/h. Shift lever is not in P.
Warning description	Combination meter buzzer	Multi-buzzer	None
	Combination meter display	Combination meter information	None
	Wireless buzzer	Sounds for 60 seconds (long beep)
Recommended user action		Turn engine switch off and perform entry lock operation

Situation D:

Entry door ajar warning

With one vehicle door open, entry lock operation is attempted

Reason for warning: Vehicle theft prevention
Precondition: Engine switch on (ACC) or off, and one door open
Warning start condition: After preconditions are met, entry lock operation is performed
Warning stop condition: Engine switch is on (ACC) or on (IG), all doors are closed, wireless unlock is performed, entry unlock operation is performed or 10 seconds have passed after warning start
Warning description	Combination meter buzzer	Multi-buzzer	None
	Combination meter display	Combination meter information	None
	Wireless buzzer	Sounds for 10 seconds (long beep)
Recommended user action		Close all doors and perform entry lock operation

Situation E:

Passenger has brought key out of vehicle warning

With engine switch in condition other than off, key is brought out of vehicle by passenger

Reason for warning: "Engine control system cannot be started" prevention
Warning start condition: Engine switch is on (ACC) or on (IG), opened door other than driver side door is closed, vehicle speed is 0 km/h (0 mph) and key is not in detected in vehicle interior and luggage interior
Warning stop condition: Engine switch on (ACC) or off, or key is detected in vehicle interior and luggage interior or vehicle speed is more than 0 km/h (0 mph)
Warning description	Combination meter buzzer	Multi-buzzer	Sounds once (1 "pon" sound) (when key is not detected continuously, sounds again when vehicle is first driven)
	Combination meter display	Combination meter information	"Key is not detected" - "Check key position"
	Wireless buzzer	Sounds 3 times (short beeps)
Recommended user action		Check if the passenger who exited the vehicle has the key or not

Situation F:

Key is not within detection area warning

With key not in vehicle cabin or key battery depleted, engine switch on (ACC) or on (IG) operation is attempted

Reason for warning: User confusion prevention
Warning condition: Engine switch is not off and key is not detected in vehicle interior
Warning description	Combination meter buzzer	Multi-buzzer	Sounds once (1 "pon" sound)
	Combination meter display	Combination meter information	"Key is not detected" - "Check key position" is displayed for 10 seconds, then display ends
	Wireless buzzer	None
Recommended user action		Check if the key is within the detection area of the vehicle cabin If key is within the vehicle interior, built-in battery may be depleted If wireless door lock switch on key is pressed, check if indicator on key illuminates If indicator does not illuminate, replace the built-in battery It is recommended that battery be bought at dealer, but battery can be replaced according to user preference

Situation G:

Key lock-in prevention function buzzer (for cabin)

With key in vehicle cabin, vehicle is exited and door handle lock switch is pressed in an attempt to perform entry lock operation

Reason for warning: Key reminder vehicle theft warning prevention
Warning condition: Engine switch off, all doors closed, door handle lock switch on and key is detected in vehicle interior
Warning description	Combination meter buzzer	Multi-buzzer	None
	Combination meter display	Combination meter information	None
	Wireless buzzer	Sounds for 2 seconds (long beep)
Recommended user action		Pick up key that is in vehicle interior and perform entry lock operation again

Situation H:

Key battery low warning

Key with almost depleted battery is used to drive vehicle

Reason for warning: Helpful function
Warning condition: After engine switch not off condition continues for 20 minutes or more, engine switch is changed from not off to off, key battery is low and key is detected in vehicle interior
Warning description	Combination meter buzzer	Multi-buzzer	Sound once (1 "pon" sound)
	Combination meter display	Combination meter information	"Low Key Battery" - "Have your vehicle checked by a dealer" is displayed for 10 seconds, then display ends
	Wireless buzzer	None
Recommended user action		Replace key built-in battery with new one It is recommended that battery be bought at dealer, but battery can be replaced according to user preference

BATTERY SAVING

Vehicle battery saving function:

In the smart access system with push-button start, signals are emitted outside of the vehicle at a prescribed interval (0.25 seconds) when the doors are locked. Therefore, the vehicle battery could be drained if the vehicle remains parked for a long time. For this reason, the controls listed below exist.

Condition	Control
Both conditions below are met for 10 days: Key is not in detection area Touch sensor or lock switch operation is not performed	Signal transmission interval is extended from 0.25 to 0.75 seconds
Both conditions below are met for 15 days: Key is not in detection area Touch sensor or lock switch operation is not performed	Signal transmission interval is extended from 0.75 to 2.25 seconds
Both conditions below are met for 30 days: Key is not in detection area Touch sensor or lock switch operation is not performed	Automatically deactivates the smart access system with push-button start

Reinstatement Conditions:

A wireless door lock control signal (lock, unlock) is input and the ID matches.
A user carries the key and pushes a lock switch on an outside door handle.
The driver door is locked or unlocked by the mechanical key.

Key battery and vehicle battery saving function:
In the smart access system with push-button start, if the key is constantly located within the vehicle exterior detection area of the doors, the system maintains periodic communication with the key. Therefore, if the vehicle remains parked in that state for a long time, the key battery and the vehicle battery could be drained. For this reason, if this state continues for more than 10 minutes, the smart access system with push-button start automatically becomes deactivated.

Reinstatement Conditions:
- A wireless door lock control signal (lock, unlock) is input and the ID code matches.
- A user carries the key and pushes a lock switch on an outside handle.
- The driver door is locked or unlocked by the mechanical key.

KEY DIAGNOSTIC MODE (Using the Techstream)

HINT:

Key diagnostic mode checks if the electrical key transmitter within a selected oscillator/antenna detection area is operating normally. The results are output through the wireless door lock buzzer (in the right front fender).

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Smart Access / Smart Communication Check.

Check the values by referring to the table below.

SMART ACCESS

Tester Display	Inspection Range
Overhead + Driver Side*1	Door electrical key oscillator (for Driver Side)
Overhead + Passenger Side*2	Door electrical key oscillator (for Front Passenger Side)
Overhead + Driver Side Rear*3	Door electrical key oscillator (for Driver Side Rear)
Overhead + Passenger Side Rear*4	Door electrical key oscillator (for Passenger Side Rear)
Overhead + Front Room*5	Indoor electrical key antenna (for Front Floor)
Overhead + Rear Room*6	Indoor electrical key antenna (for Rear Floor)
Overhead + Back Door (inside)*7	Indoor electrical key antenna (for Luggage Compartment)
Overhead + Back Door (outside)*8	Electrical key antenna (for Outside Luggage Compartment)

When the electrical key transmitter is brought near the selected oscillator/antenna, check that the wireless door lock buzzer sounds.
1. *1: Door electrical key oscillator (for Driver Side)

  Fig 4: Identifying Distance Range Of Key Lock Entry
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Hold the key at the same height as the door outside handle (0.7 to 1.0 m (2.30 to 3.28 ft.)). Pay attention to the direction of the key in the illustration.
  - *2: Perform the same inspection above for the door electrical key oscillator (front passenger seat outside transmitter).
  - *3: Perform the same inspection above for the door electrical key oscillator (driver side rear seat outside transmitter).
  - *4: Perform the same inspection above for the door electrical key oscillator (passenger side rear seat outside transmitter).
2. *5: Indoor electrical key antenna (front floor inside transmitter)
  HINT:

  Place the electrical key transmitter on the driver or front passenger seat cushion.
3. *6: Indoor electrical key antenna (rear floor inside transmitter)
  HINT:

  Place the electrical key transmitter on the rear no. 1 seat cushion.
4. *7: Indoor electrical key antenna (for luggage compartment inside transmitter)
  HINT:

  Place the electrical key transmitter on the rear no. 2 seat cushion.
5. *8: Electrical key antenna (for outside luggage compartment)

  Fig 5: Identifying Distance Range Of Diagnostic Mode - For Outside Luggage Compartment (Electrical Key Antenna)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Hold the electrical key transmitter at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, as shown in the illustration.
