DTC C1595/55: Lost Communication with Steering Angle Sensor Module; DTC C15C4/68: Steering Angle Signal (Test Mode DTC) (08/2010 - 08/2011): Wiring Diagram

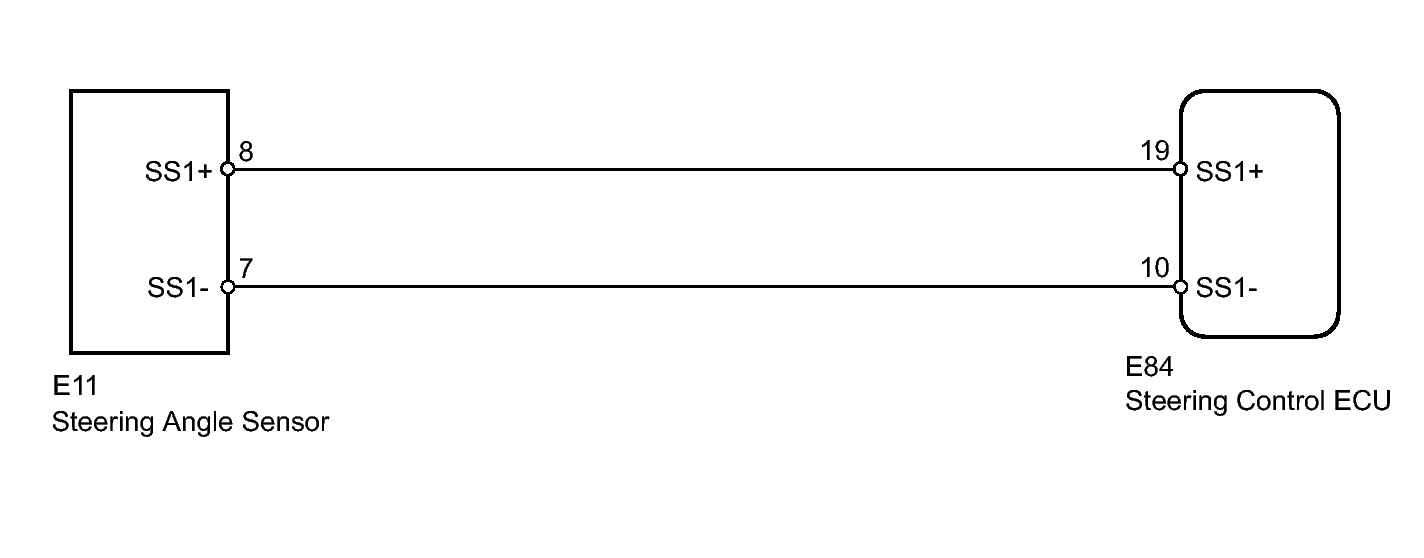

Fig 1: Steering Control ECU And Steering Angle Sensor Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
