DTC B2274: ACC Monitor Malfunction: Wiring Diagram

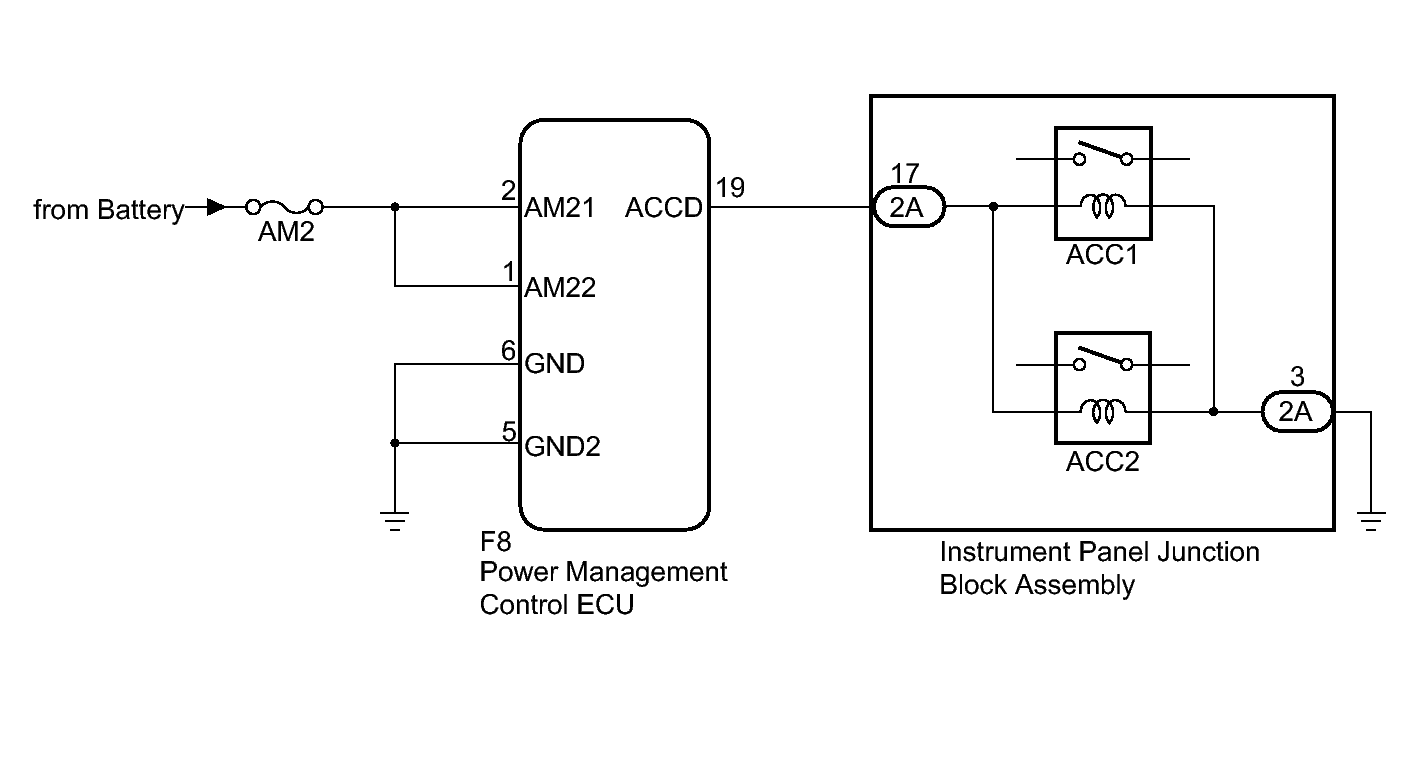

Fig 1: Identifying ACC Monitor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
