Engine Room Relay Block Assembly And Engine Room Junction Block Assembly Inner Circuit

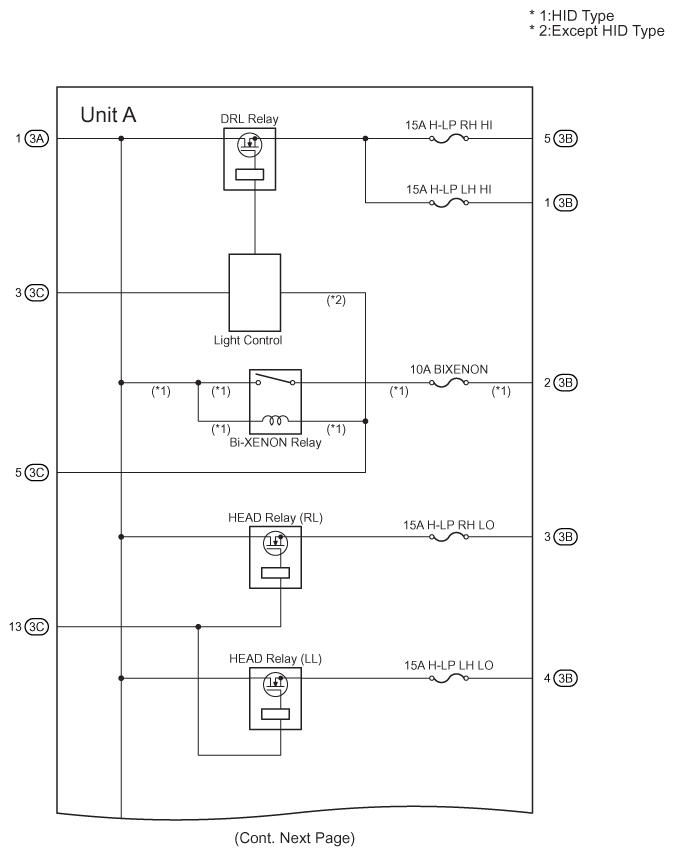

Fig 1: Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit Diagram (1 Of 2) With Relays
ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| DRL Relay |
| Bi-XENON Relay |
| Head Relay (RL) |
| Head Relay (LL) |

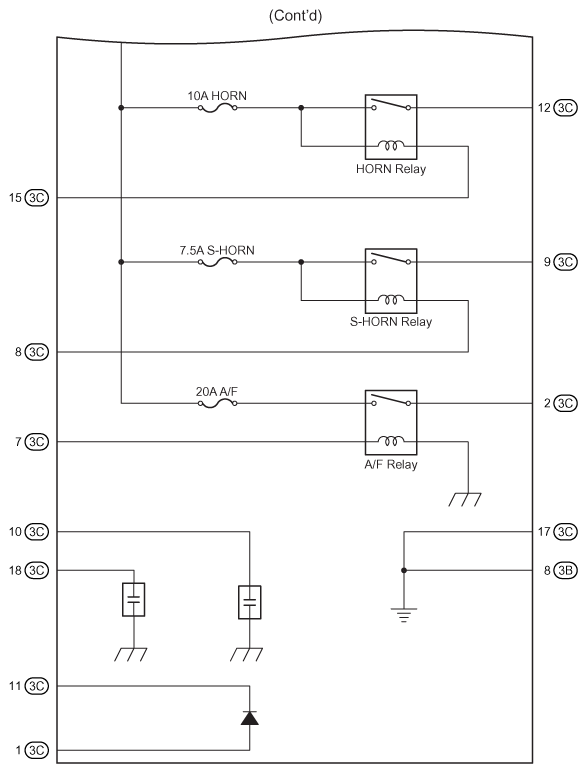

Fig 2: Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit Diagram (2 Of 2) With Relays
ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Horn Relay |
| S-Horn Relay |
| A/F Relay |
