Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC): Notes

WARNING: This page is about a different car, the 2010 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

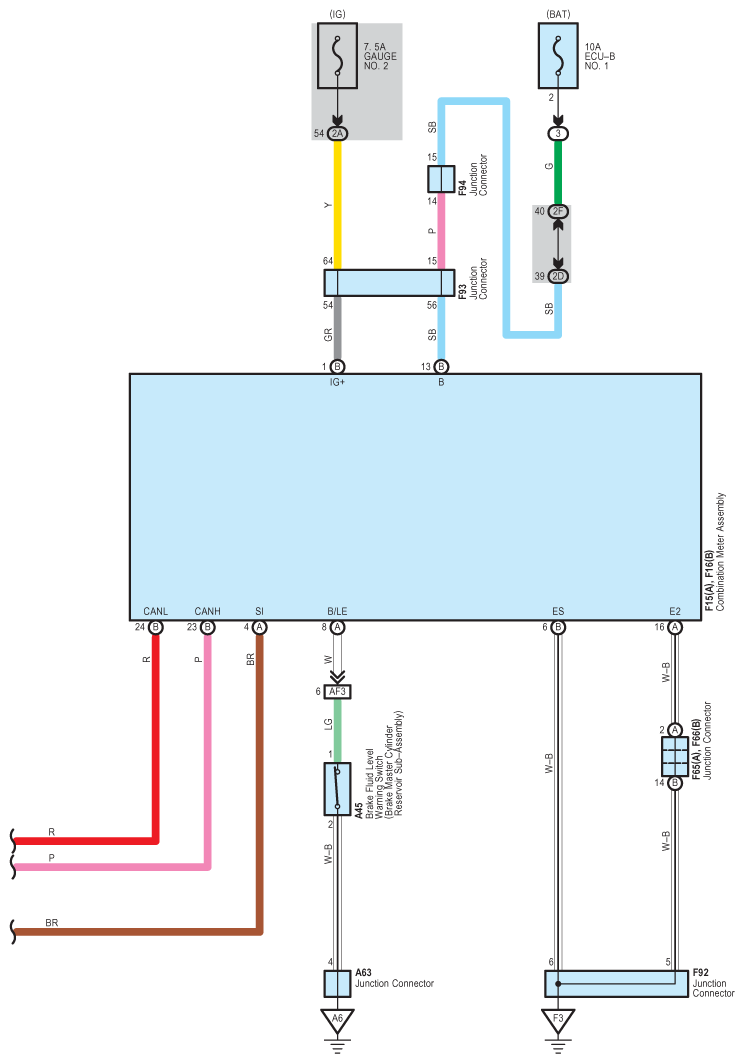

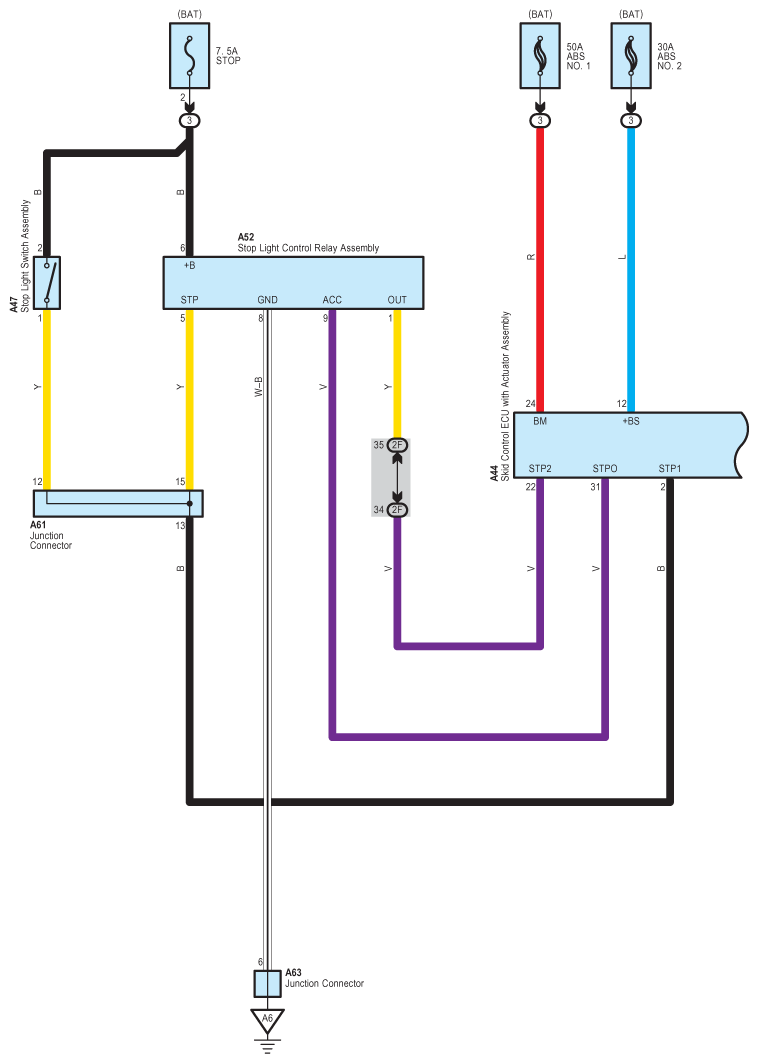

Fig 1: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

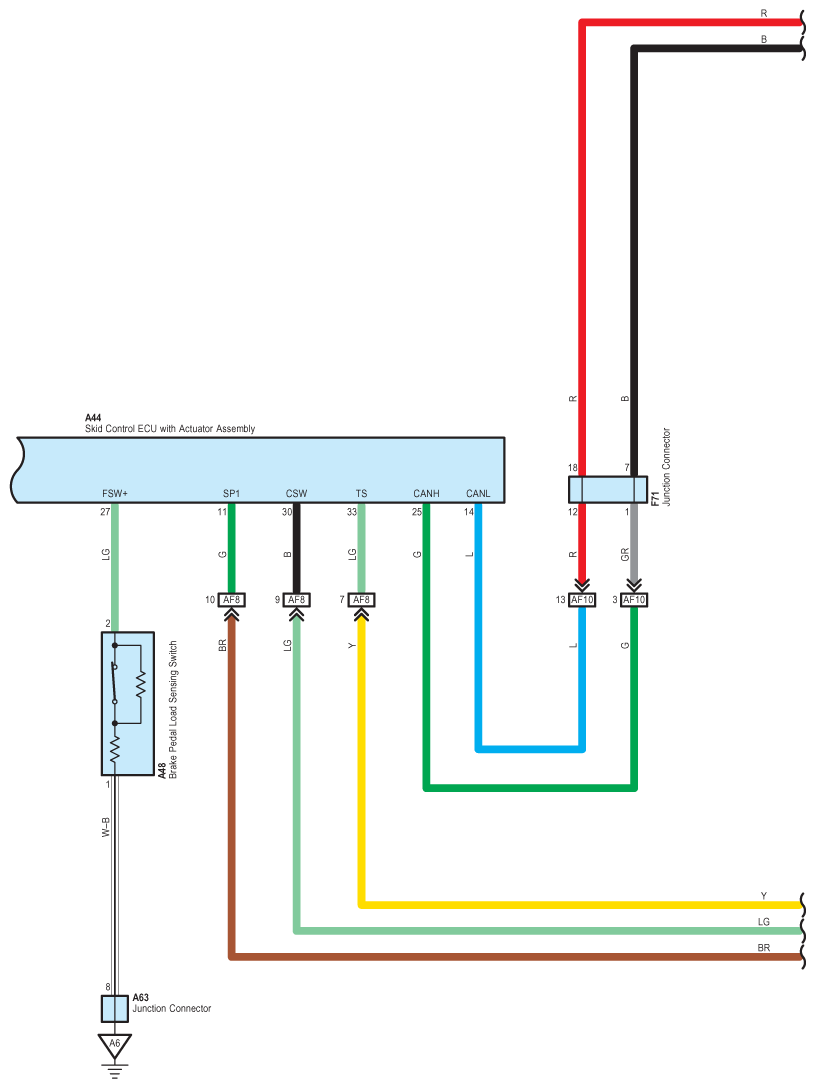

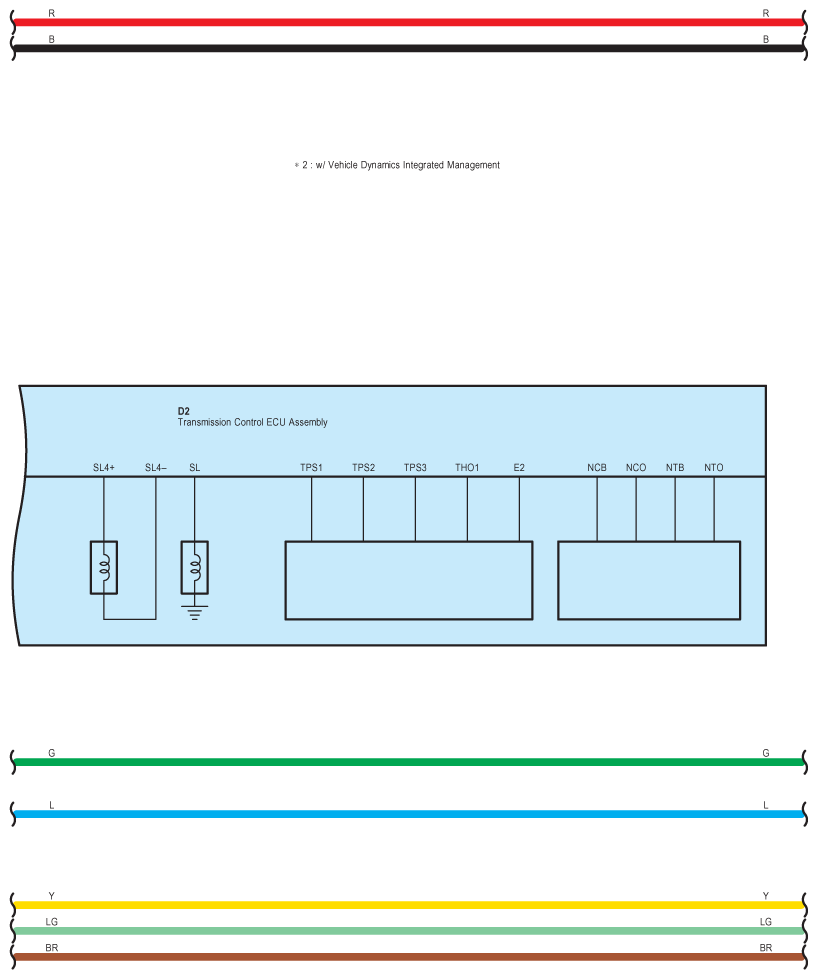

Fig 2: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

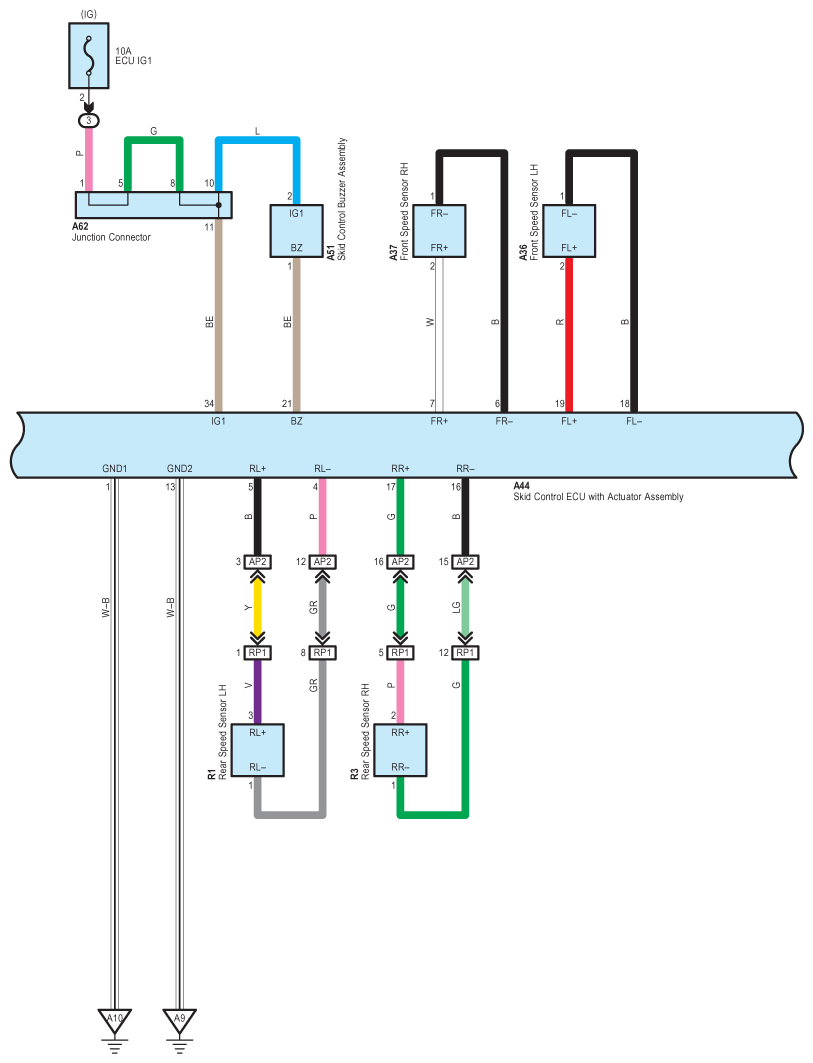

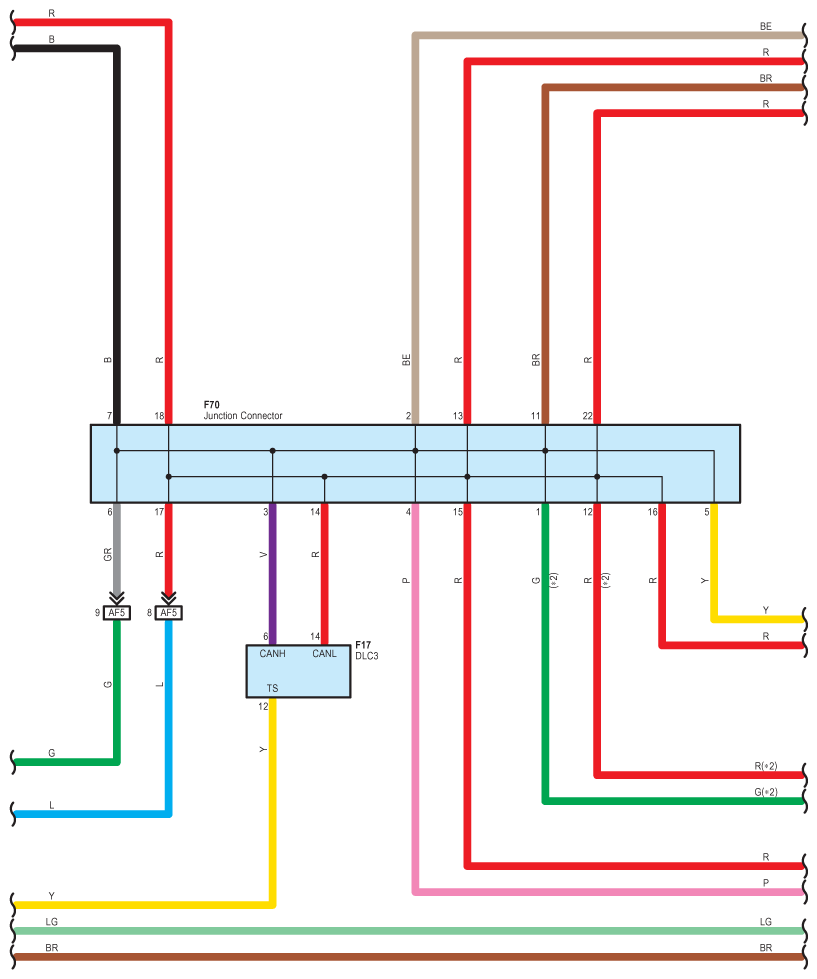

Fig 3: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

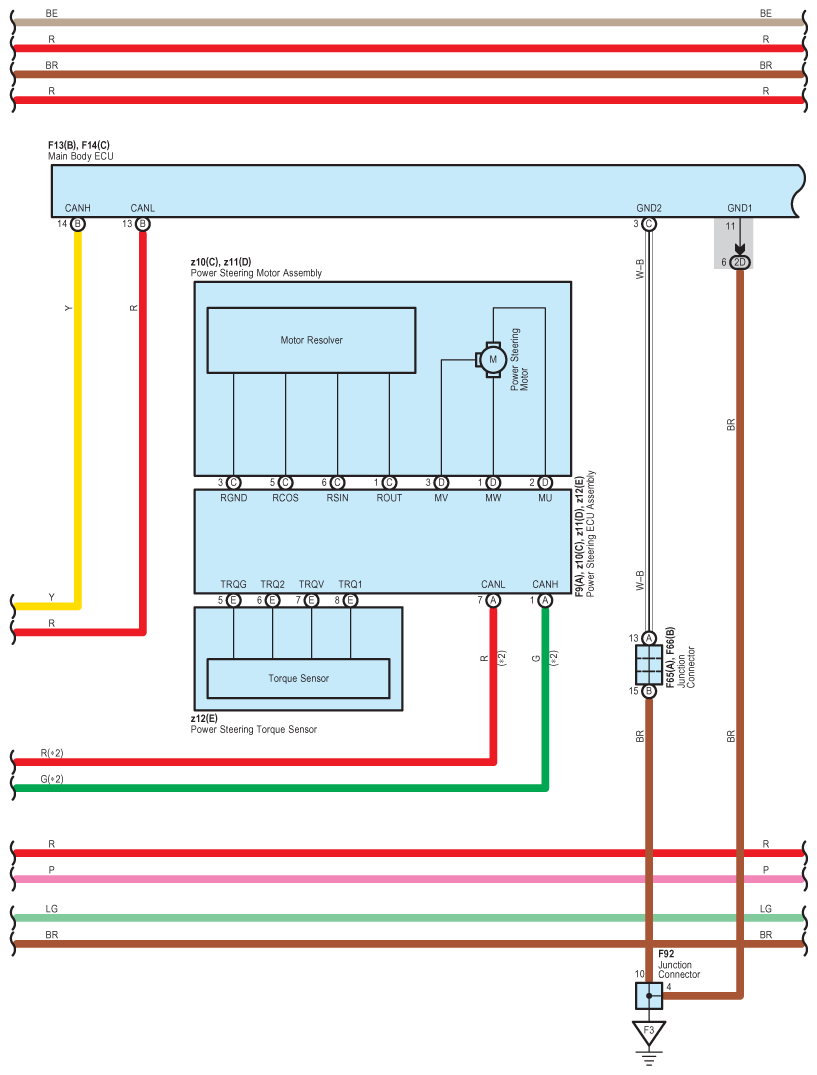

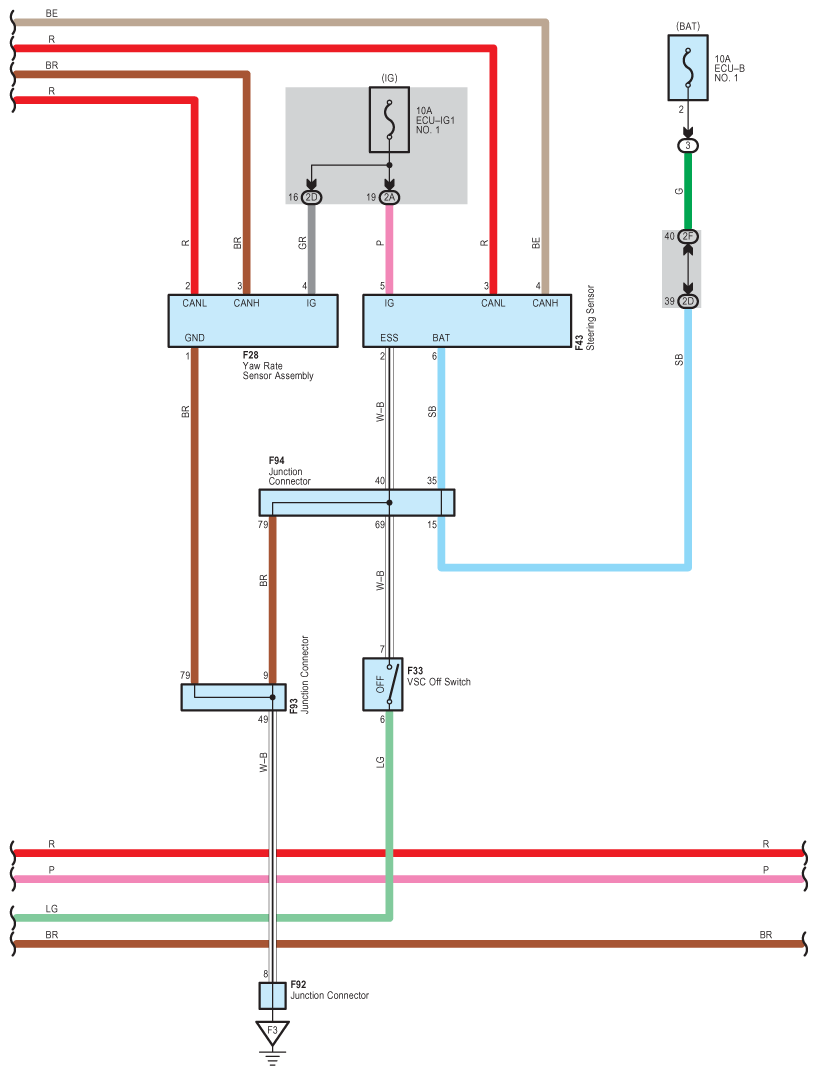

Fig 4: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

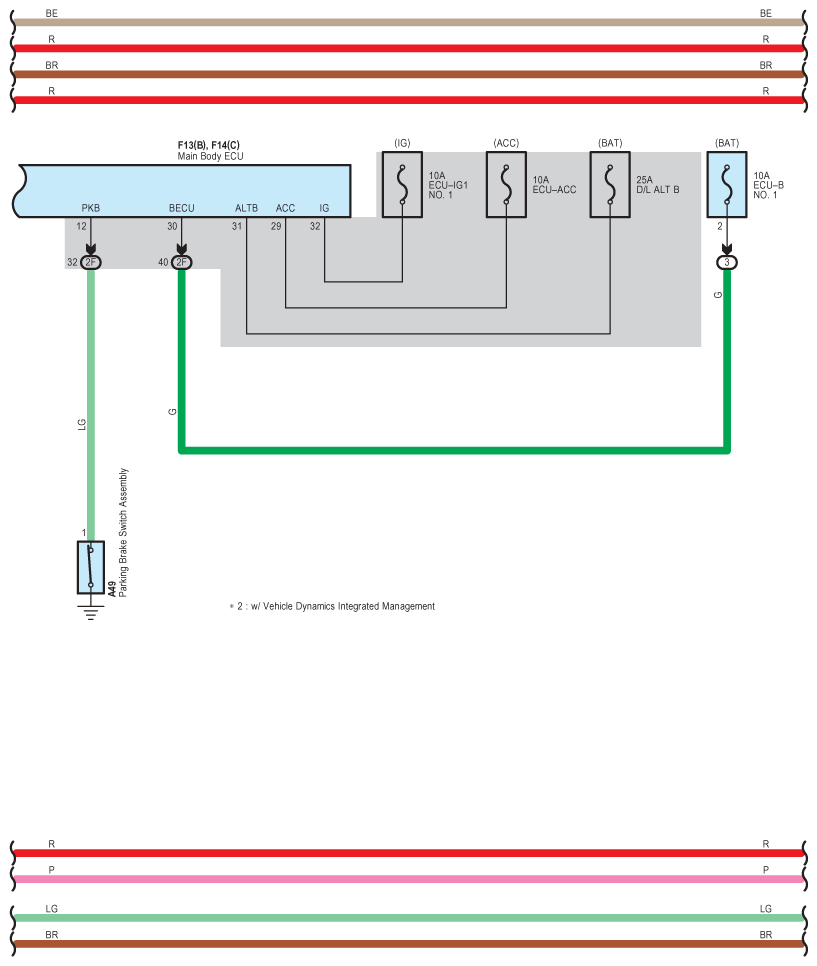

Fig 5: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

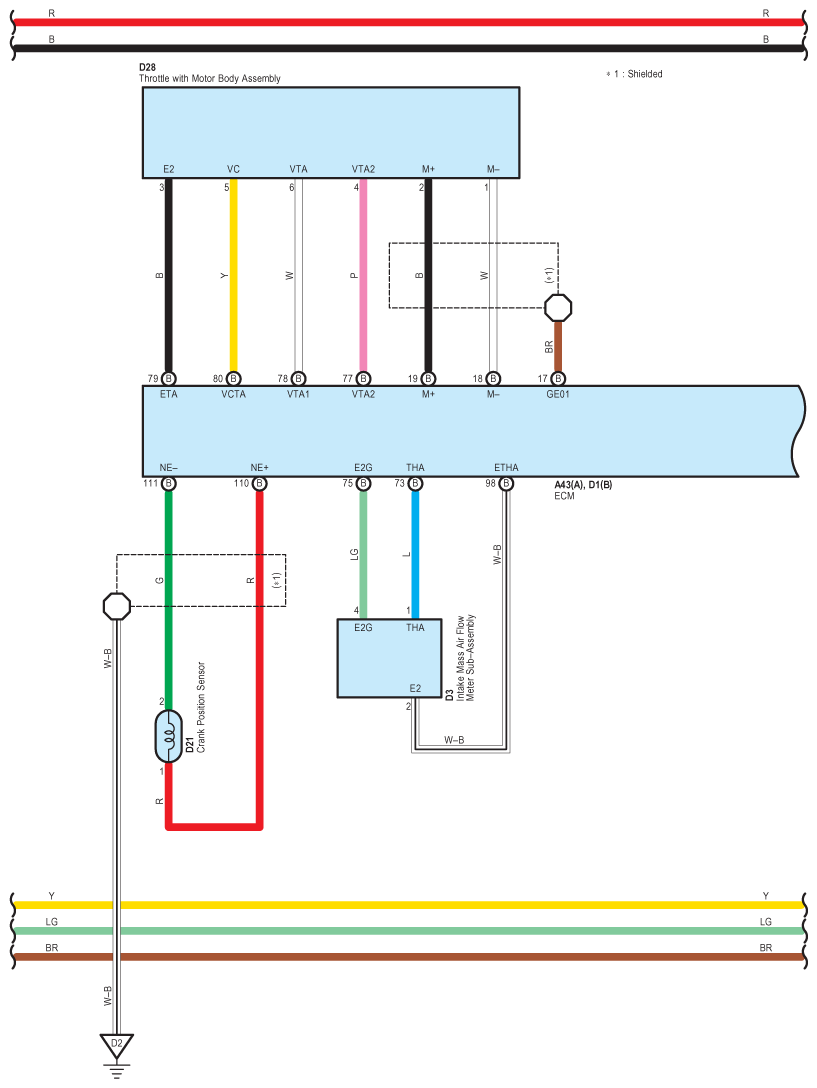

Fig 6: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

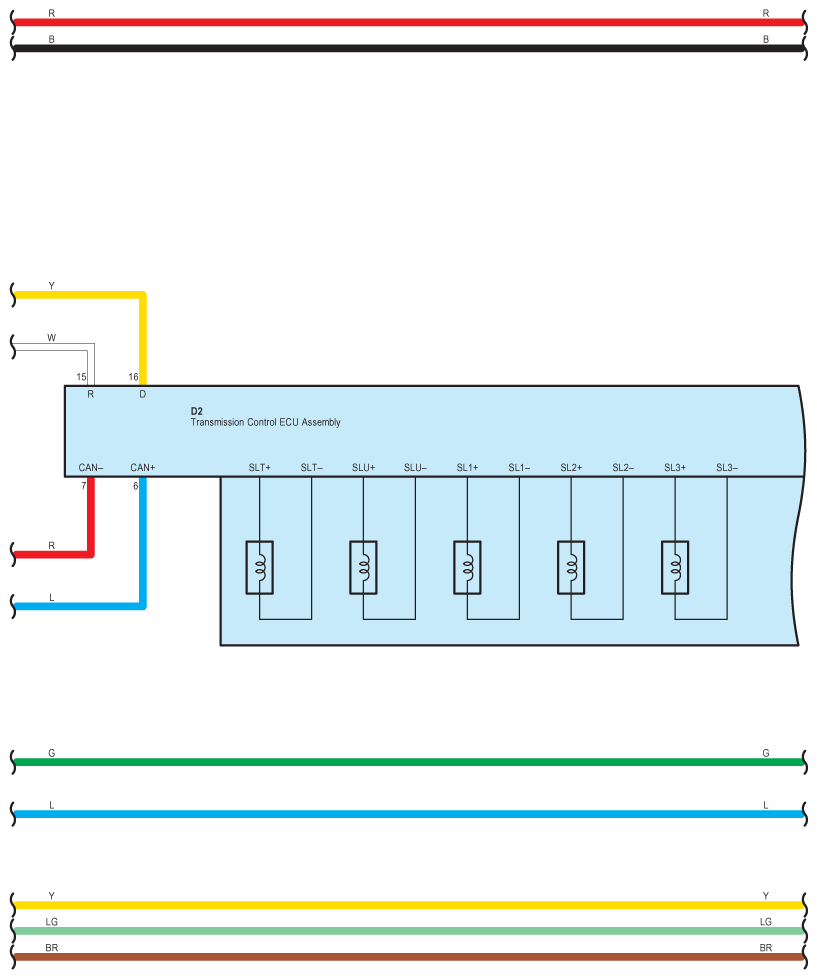

Fig 7: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

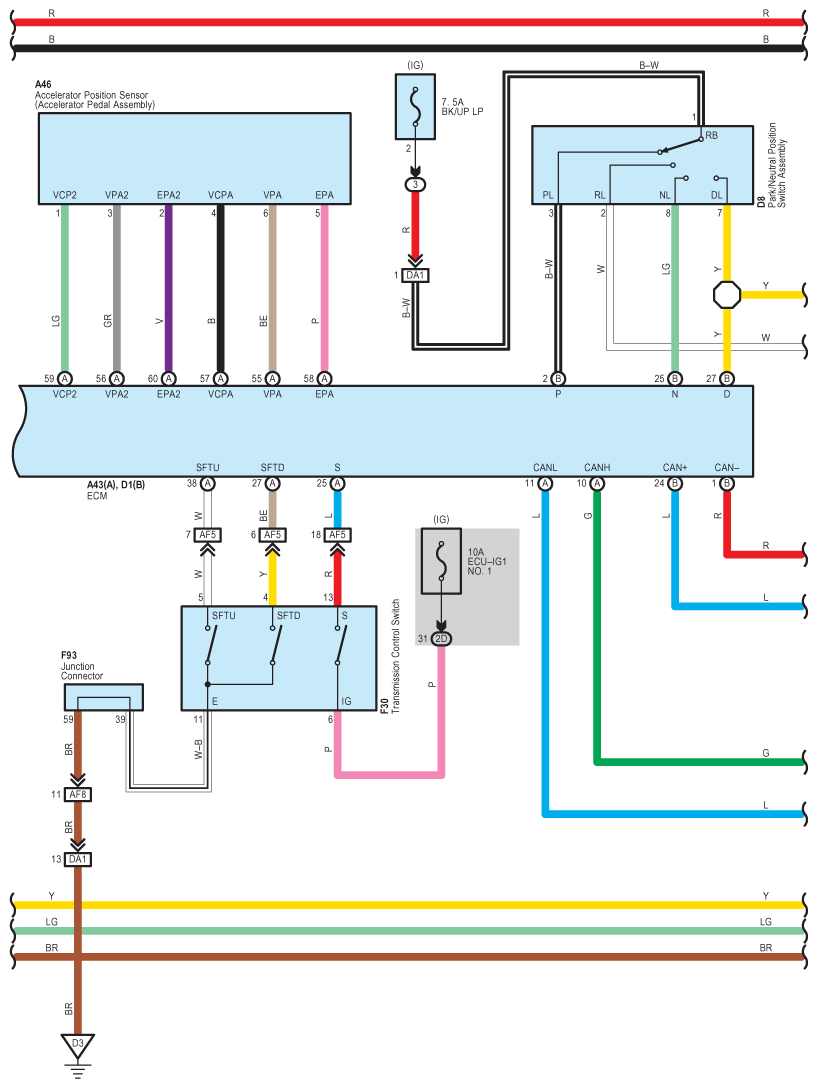

Fig 8: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (8 Of 12)

Fig 9: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (9 Of 12)

Fig 10: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (10 Of 12)

Fig 11: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (11 Of 12)

Fig 12: Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC And VSC) - Circuit Diagram (12 Of 12)
