Seats: Specifications





SERVICE SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

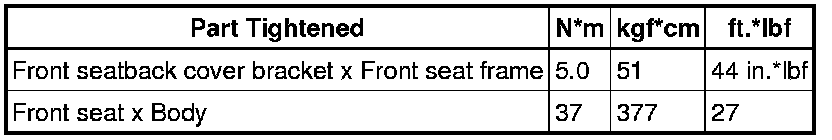

FRONT SEAT

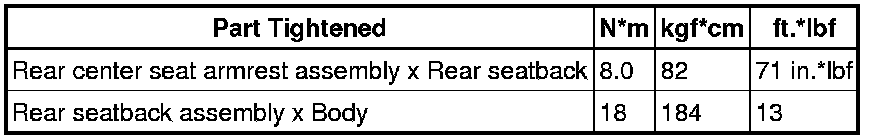

REAR SEAT





SEAT CLIMATE CONTROL BLOWER (for Seat Cushion)
