Installation

1UR-FE ENGINE CONTROL: KNOCK SENSOR: INSTALLATION

1. INSTALL KNOCK SENSOR

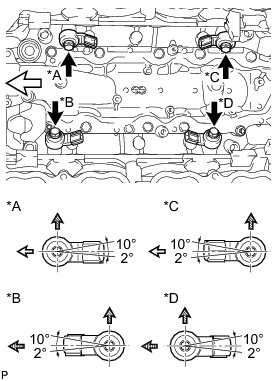

(a) Install the 4 knock sensors with the 4 bolts so that the knock sensors are angled as shown in the illustration.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

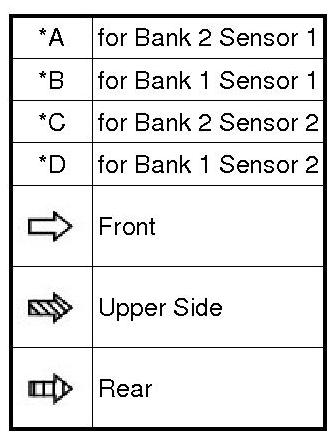

Text in Illustration





(b) Connect the 4 knock sensor connectors.

2. INSTALL SEPARATOR CASE

(a) Install the separator case with the 4 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

3. INSTALL EGR COOLER ASSEMBLY

(a) Install the EGR cooler Installation.
