Torque Specifications

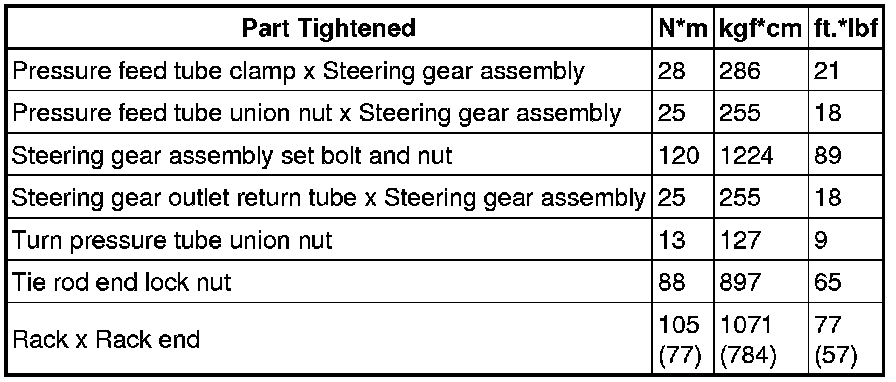

SPECIFICATIONS: STEERING GEAR / LINKAGE: TORQUE SPECIFICATIONS

Steering Linkage





( ): For use without SST
