DTC U0073/94, U0123/62, U0124/95, U0126/63, U0293/59: Control Module Communication Bus OFF; Lost Communication with Yaw Rate Sensor Module; Lost Communication with Lateral Acceleration Sensor Module; Lost Communication with Steering Angle Sensor Module; Communication Error from HV ECU: Wiring Diagram

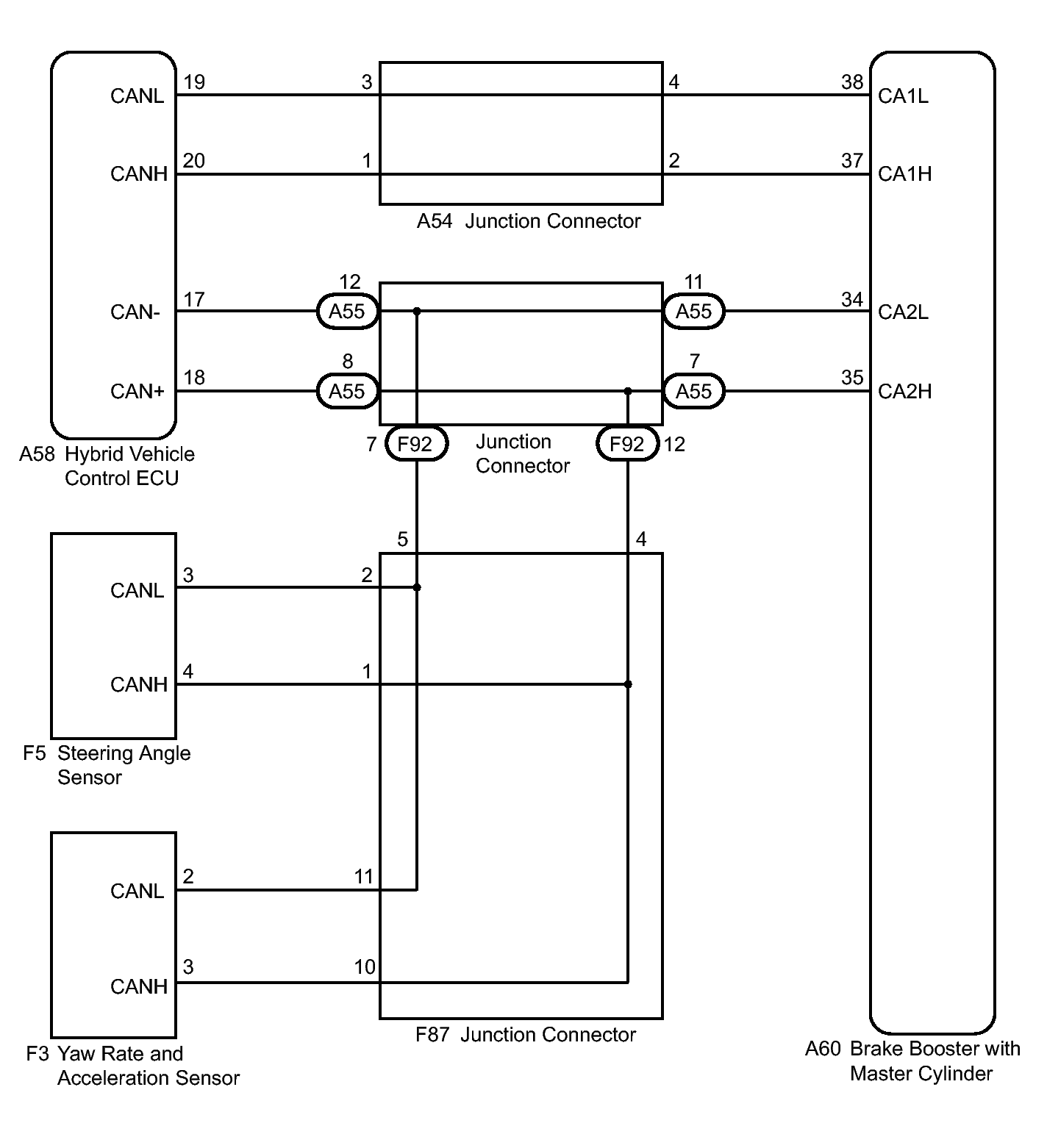

Fig 1: Steering Angle Sensor Module Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
