Audio System (w/LEXUS Navigation System), LEXUS ENFORM, LEXUS Navigation System and Parking Assist (Rear View Monitor) (w/o Wide-View Front Monitor): Notes

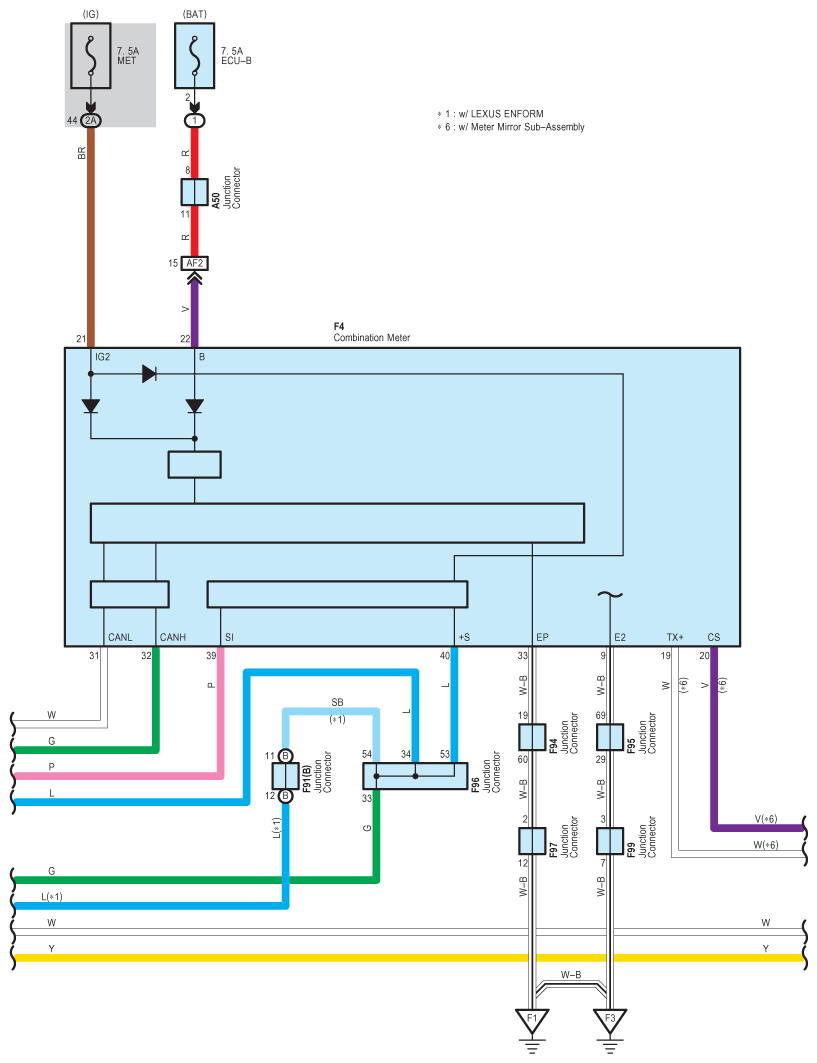

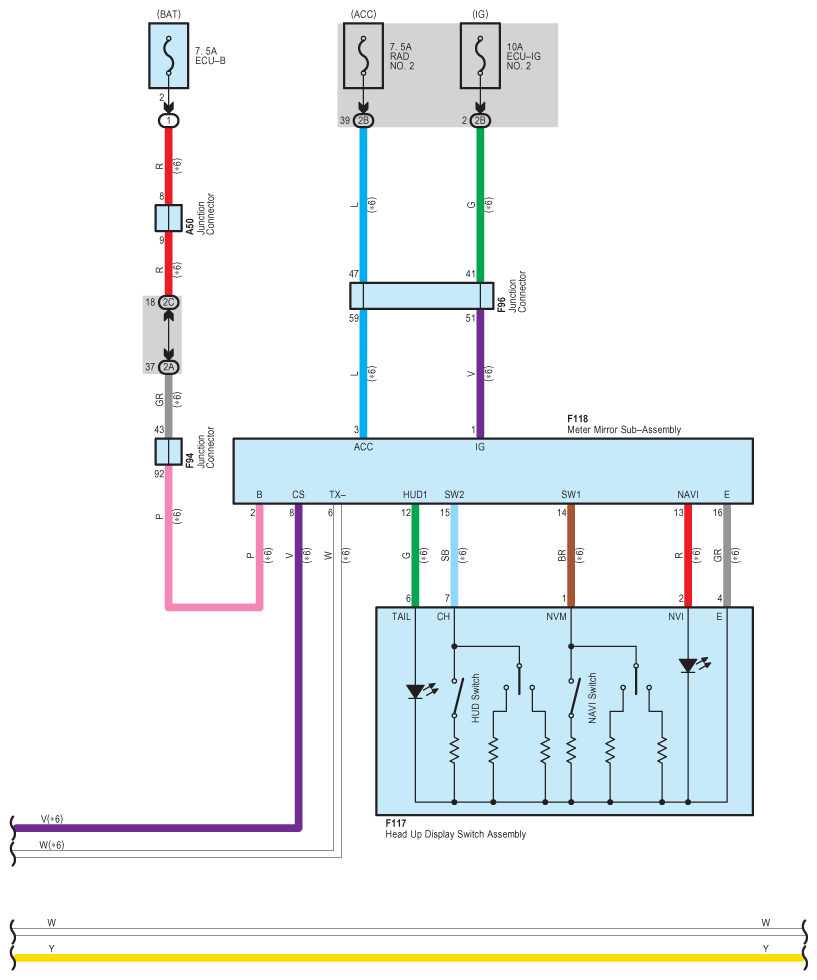

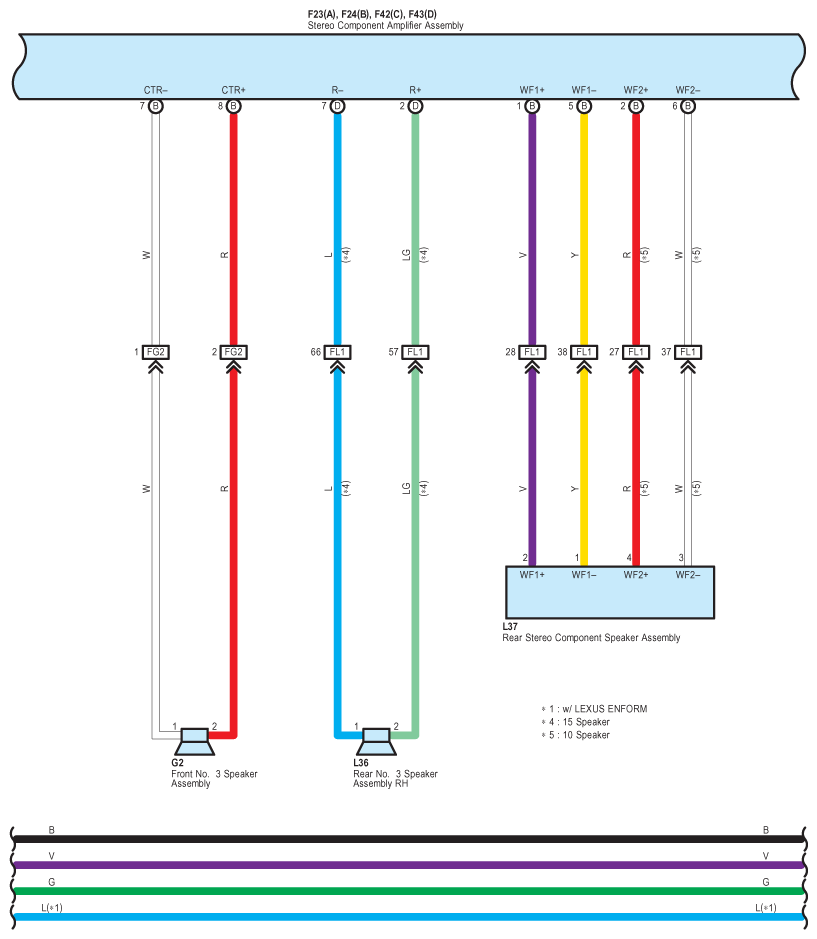

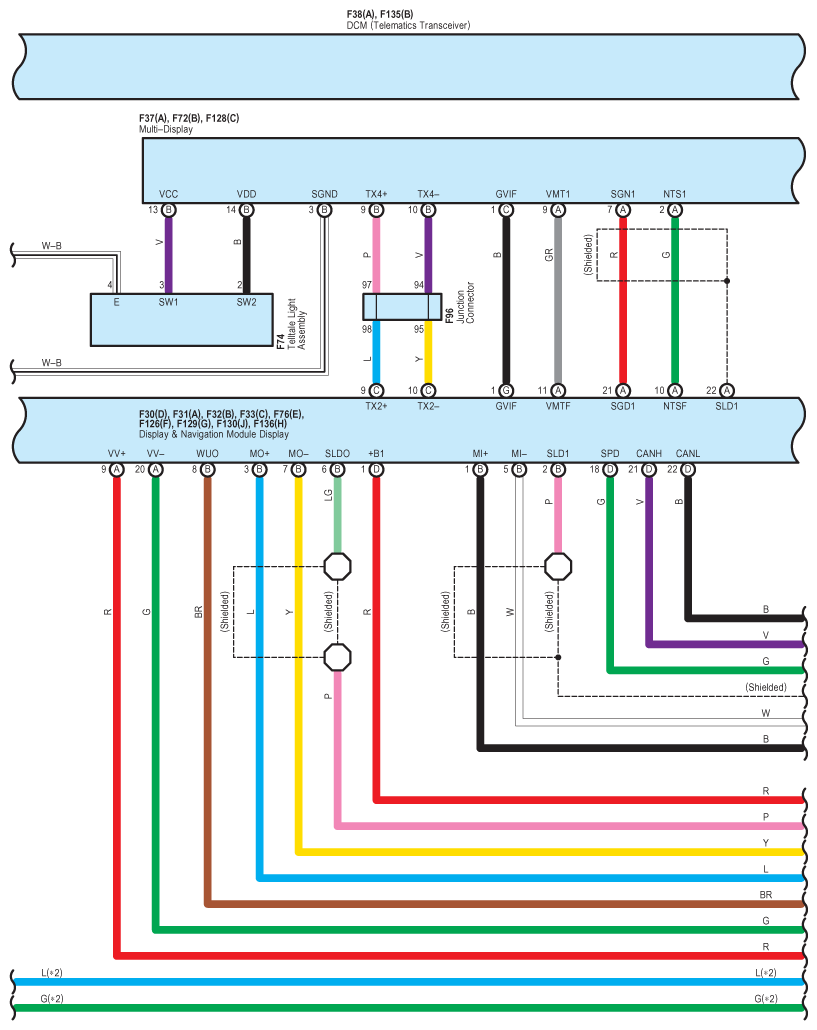

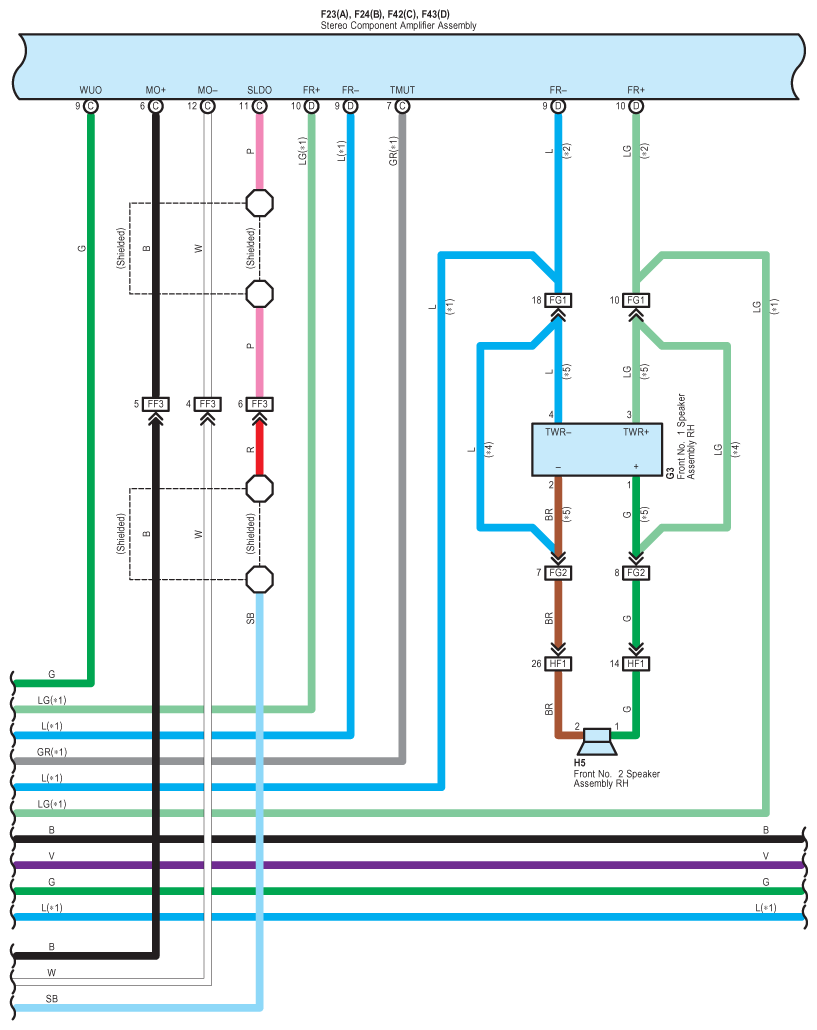

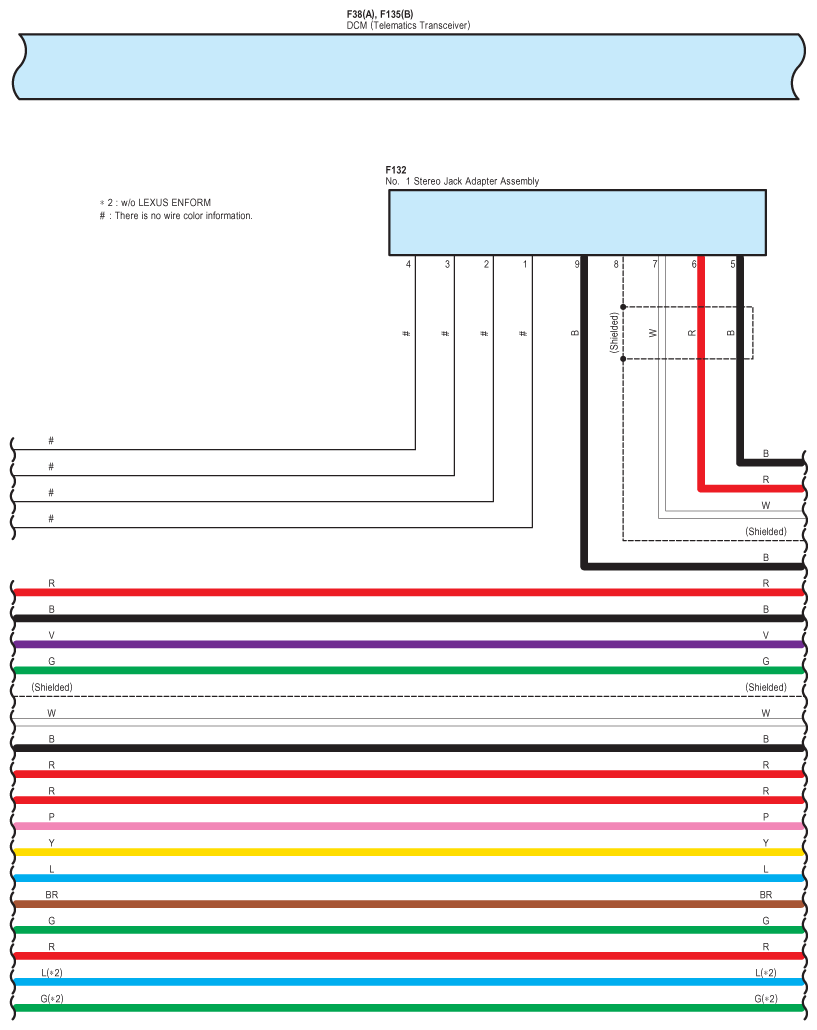

Fig 1: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (1 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

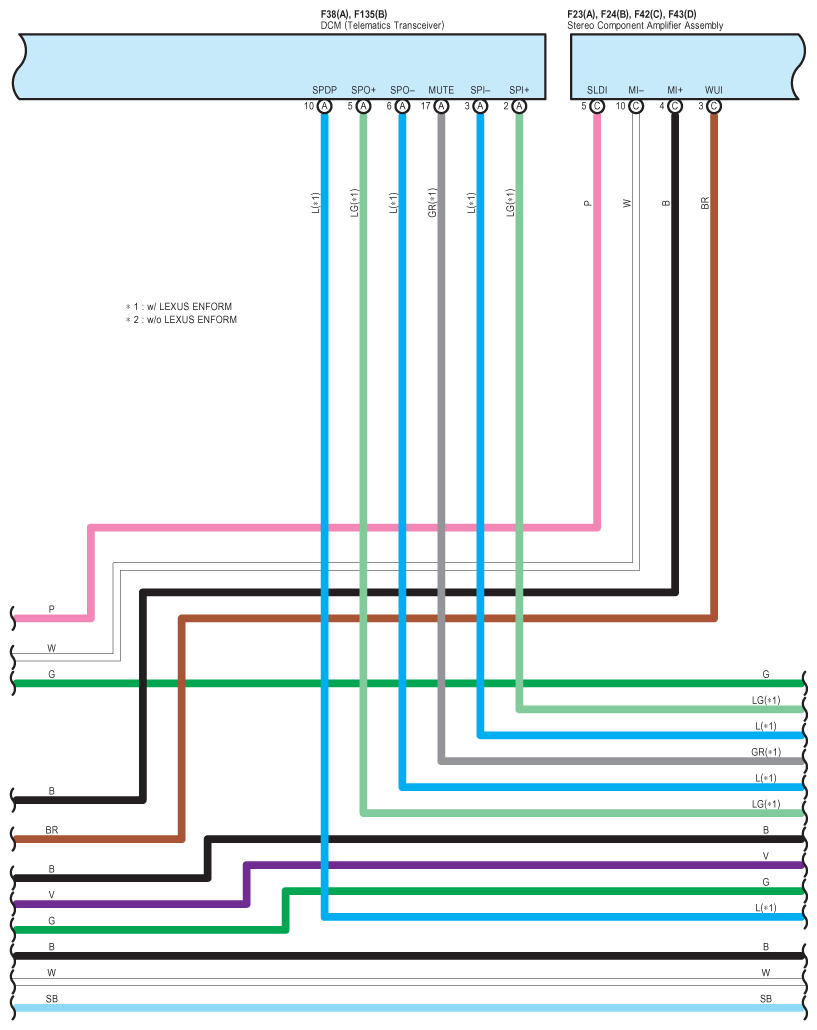

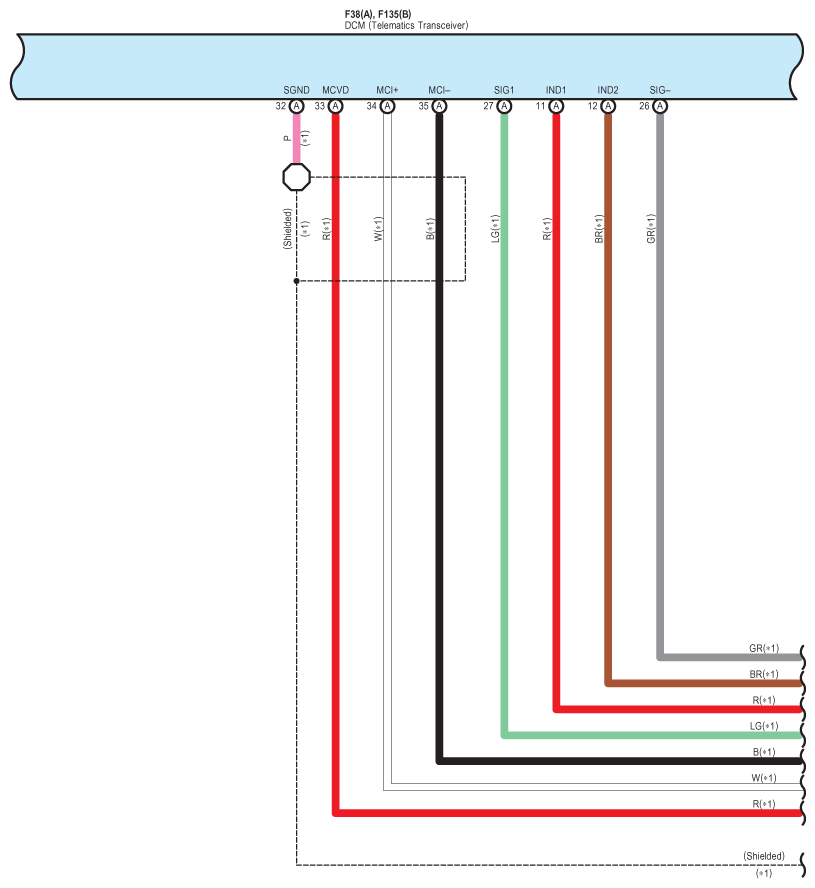

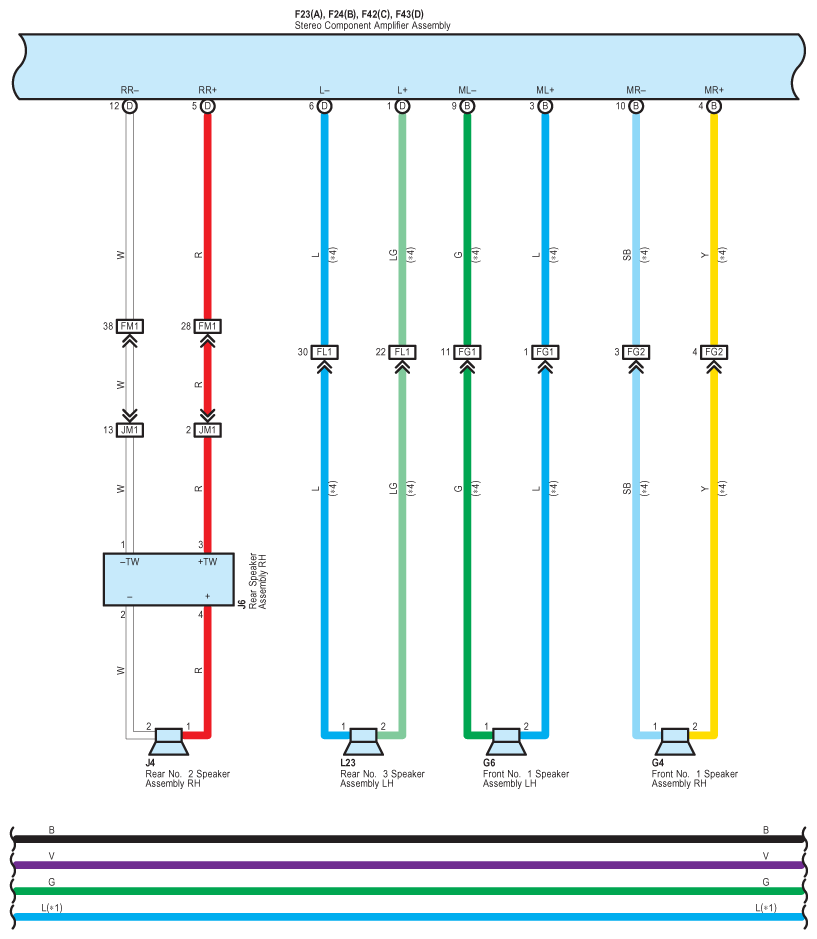

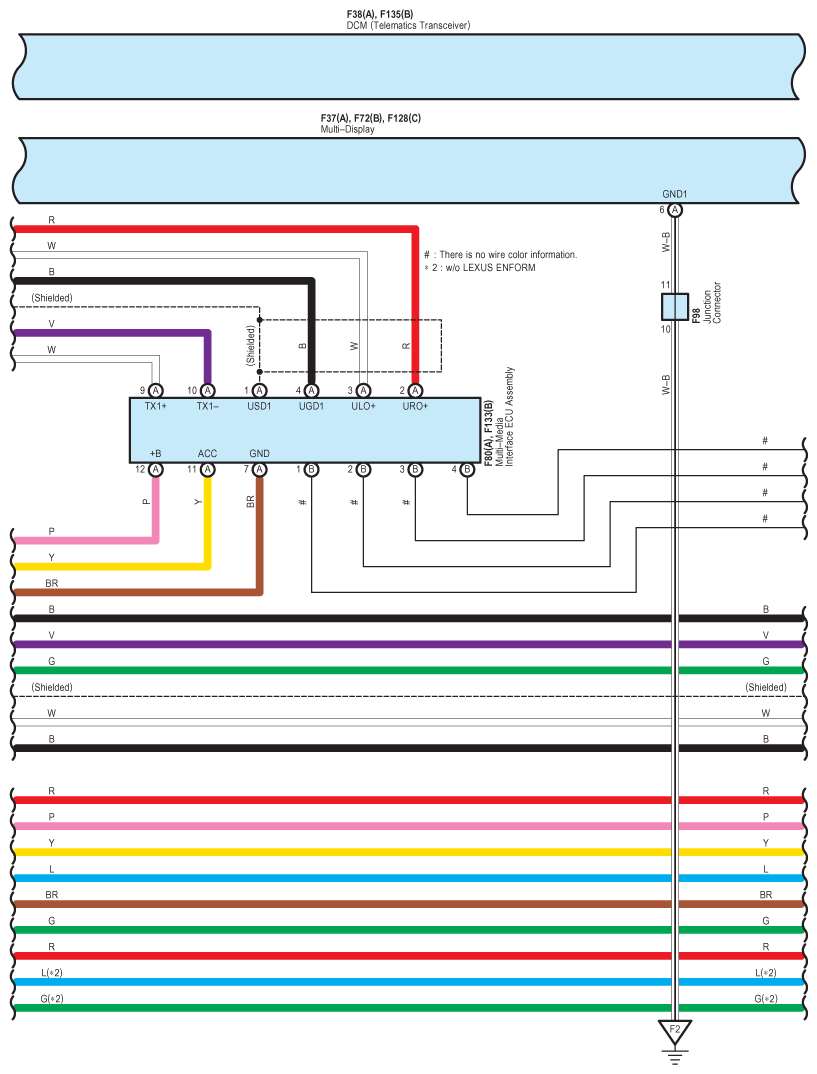

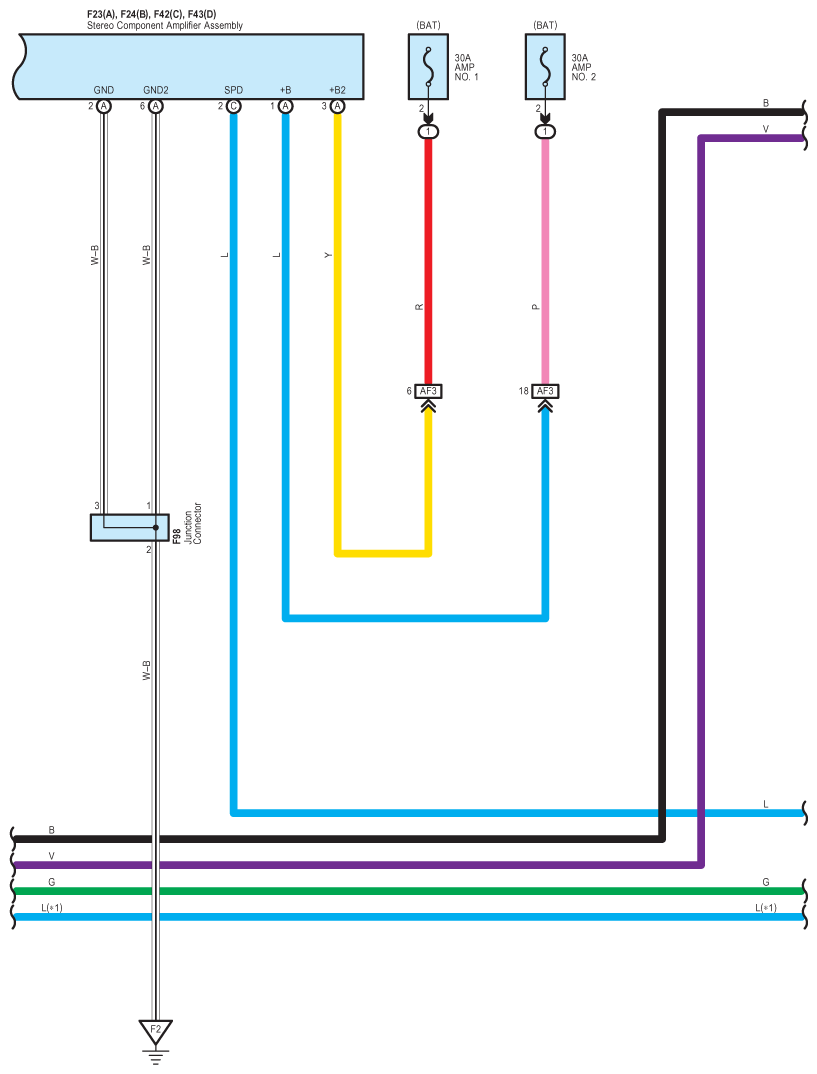

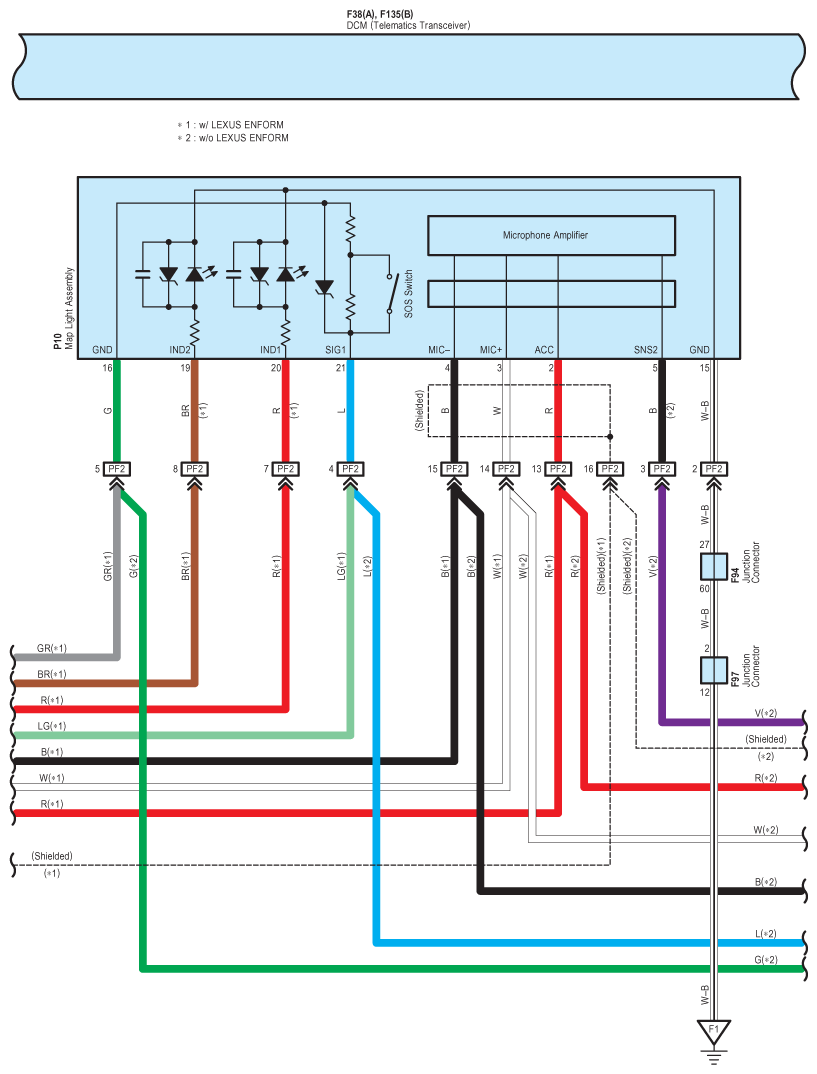

Fig 2: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (2 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

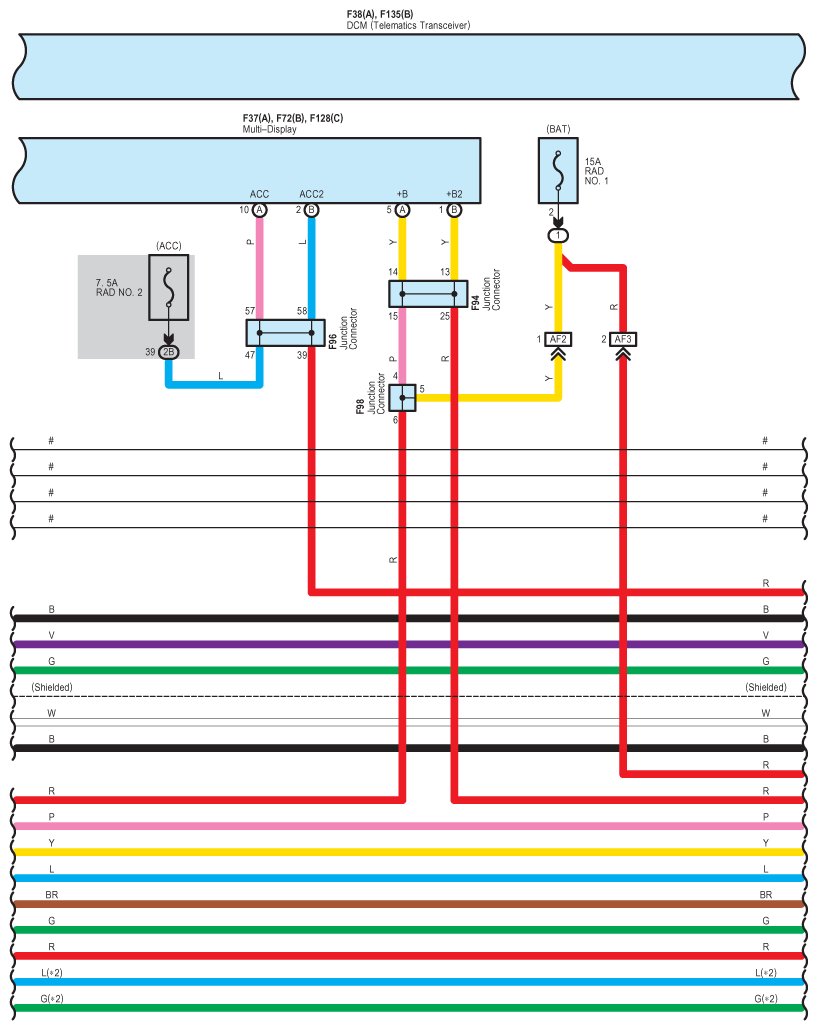

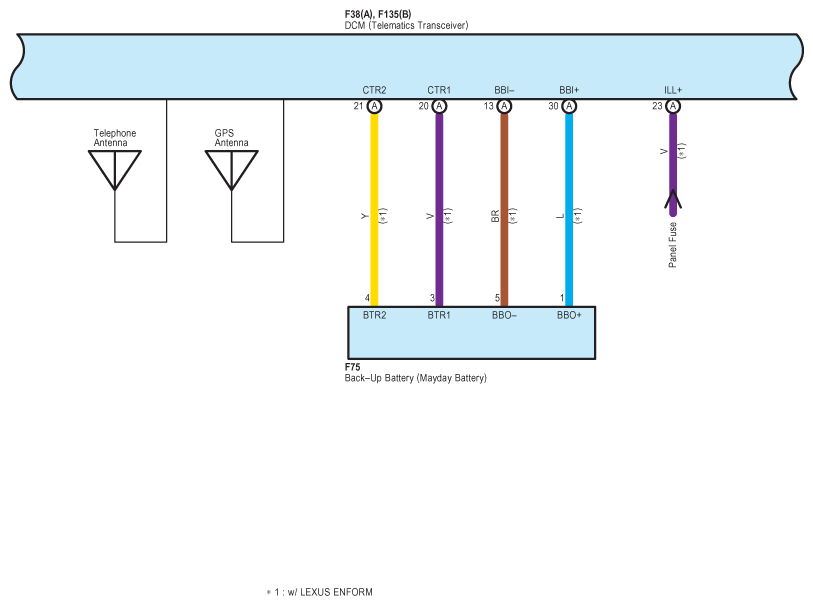

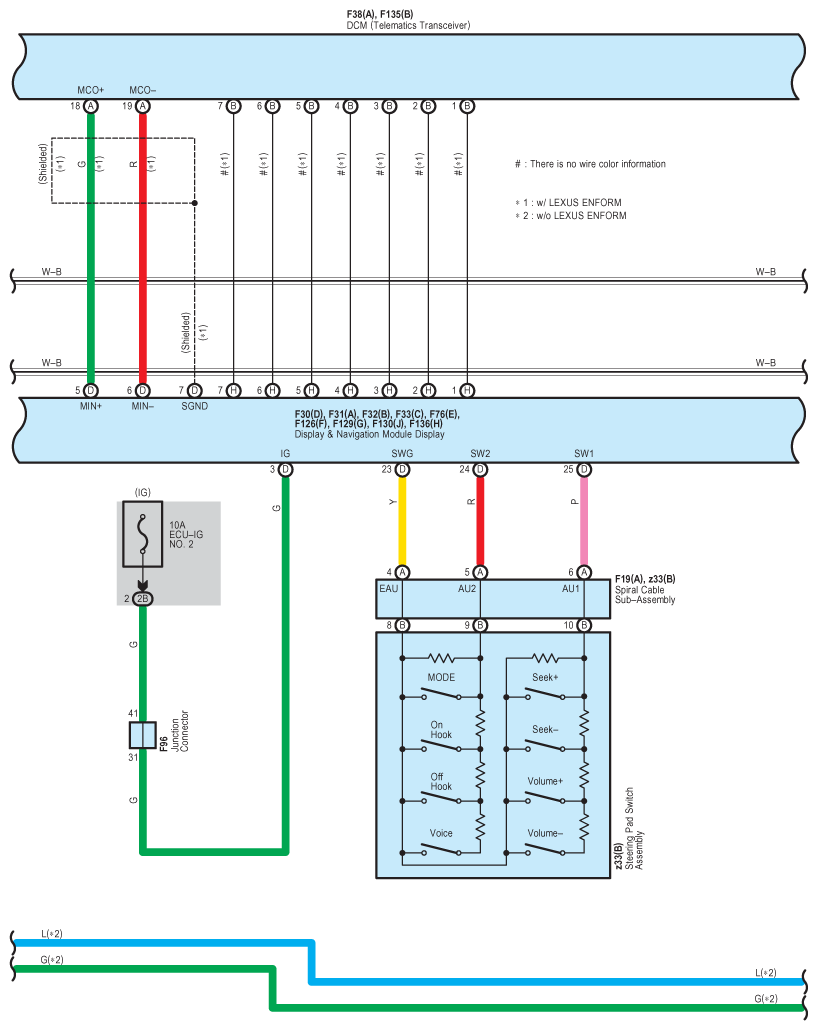

Fig 3: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (3 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

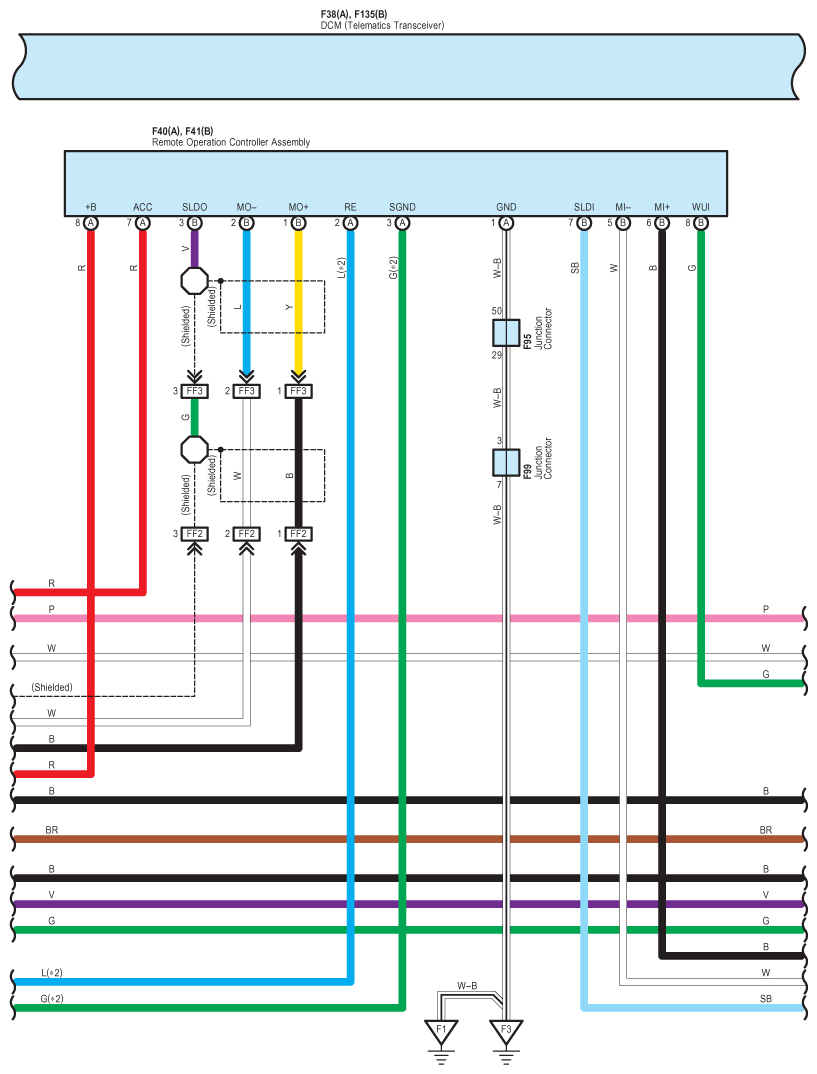

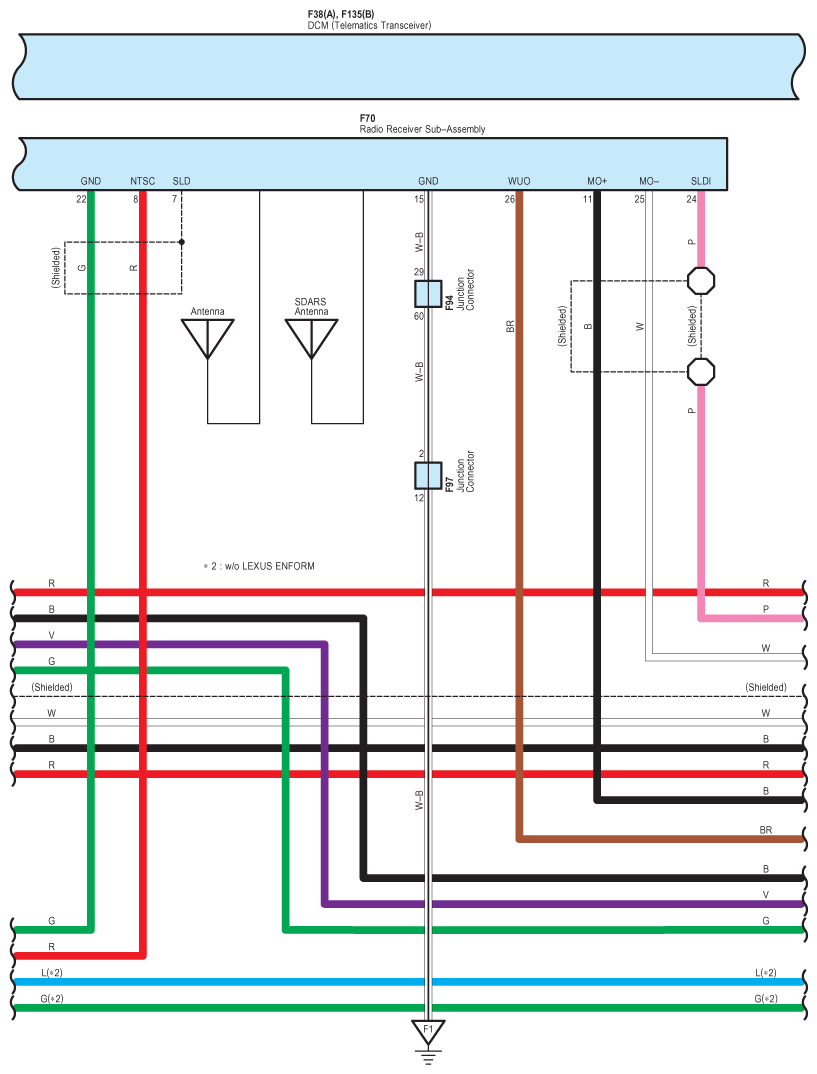

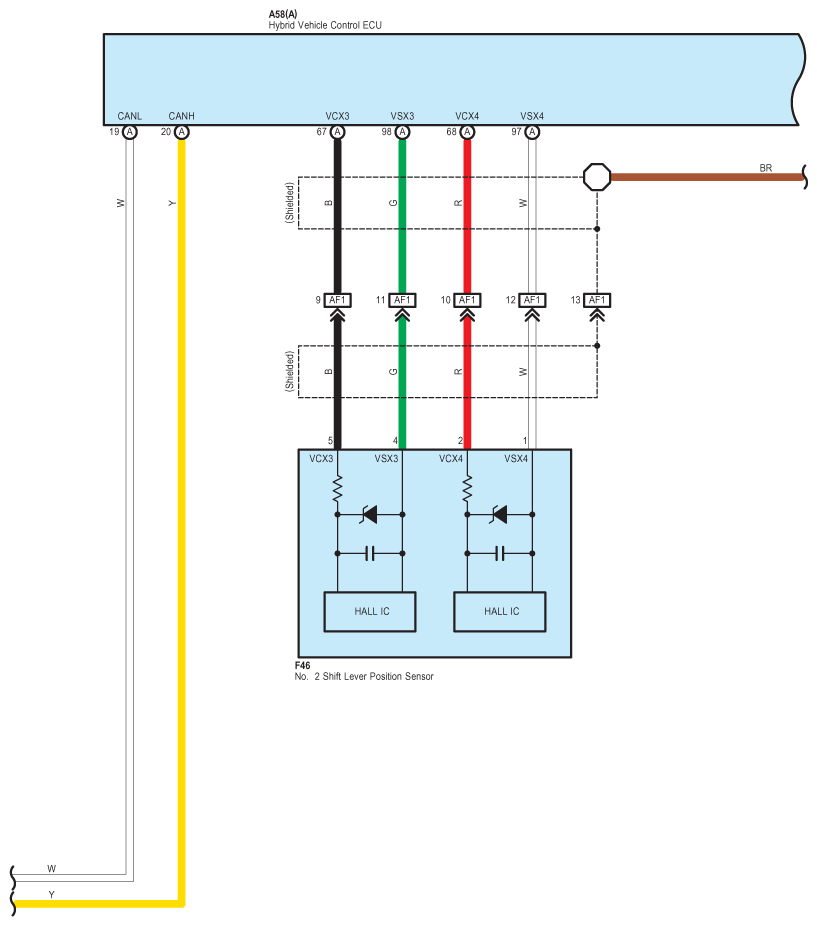

Fig 4: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (4 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

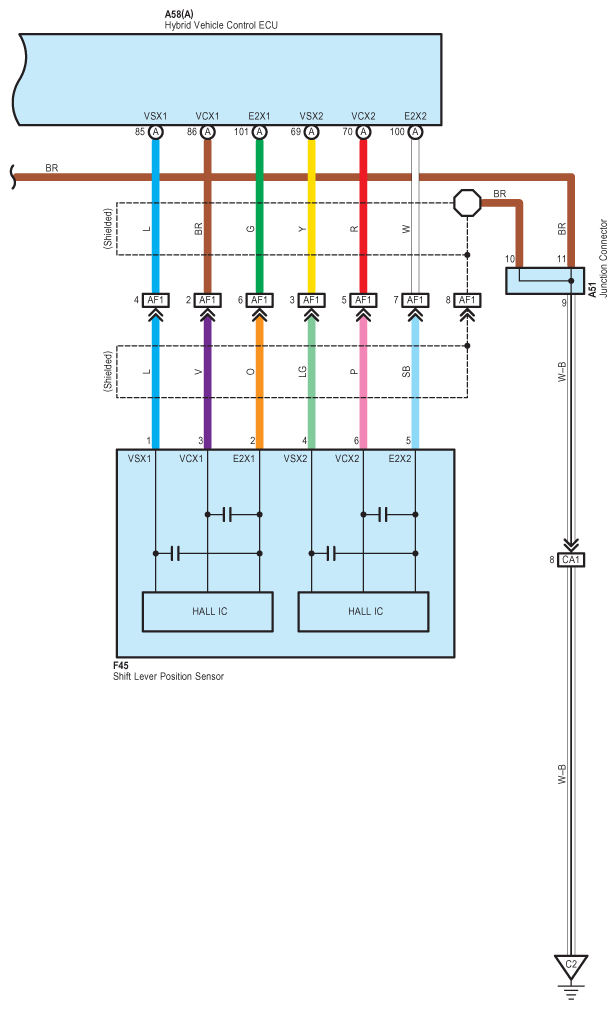

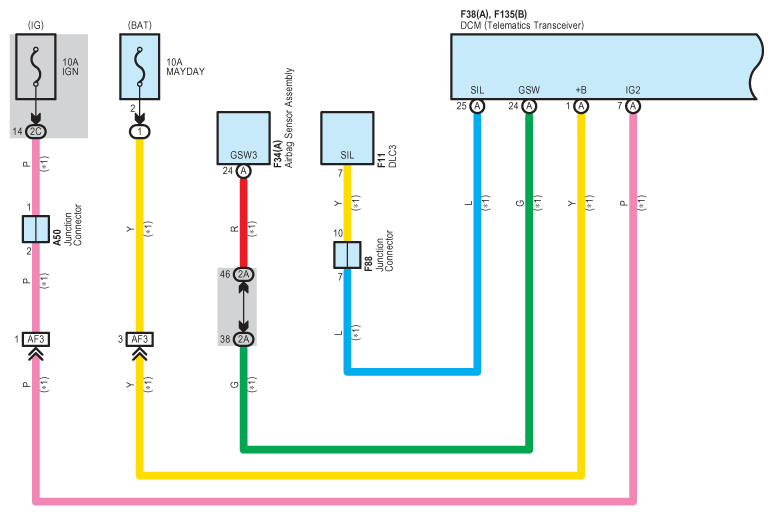

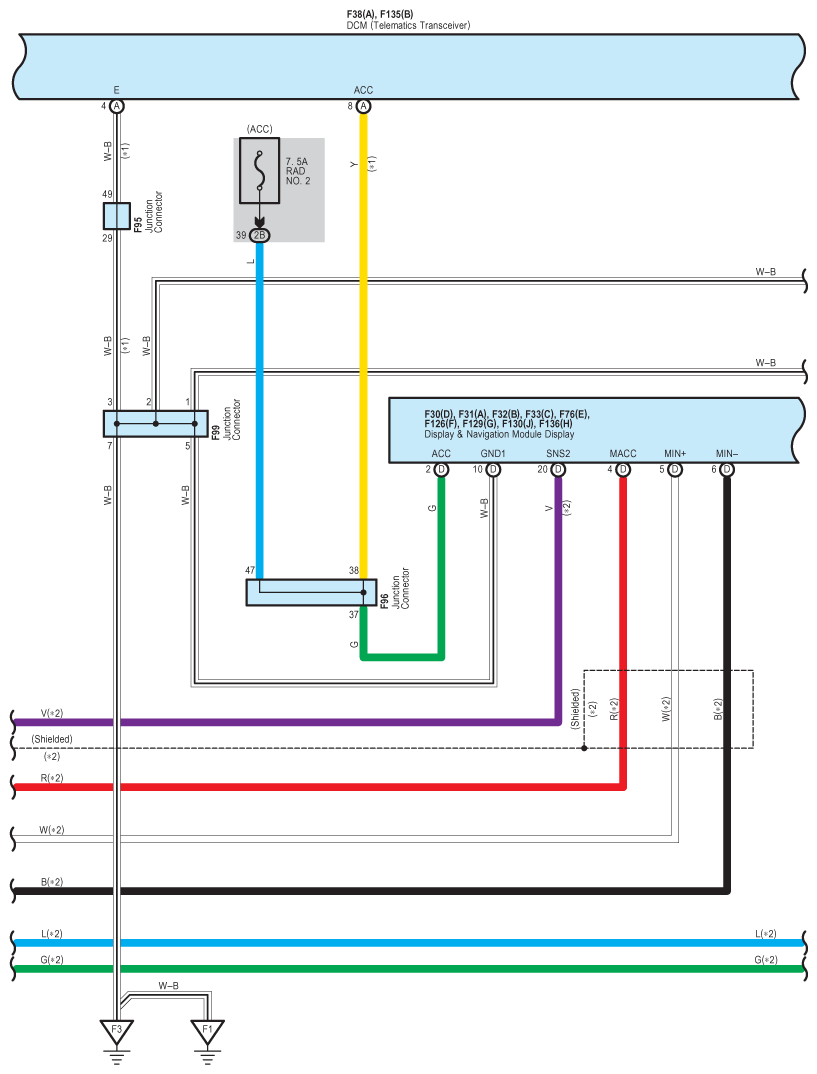

Fig 5: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (5 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

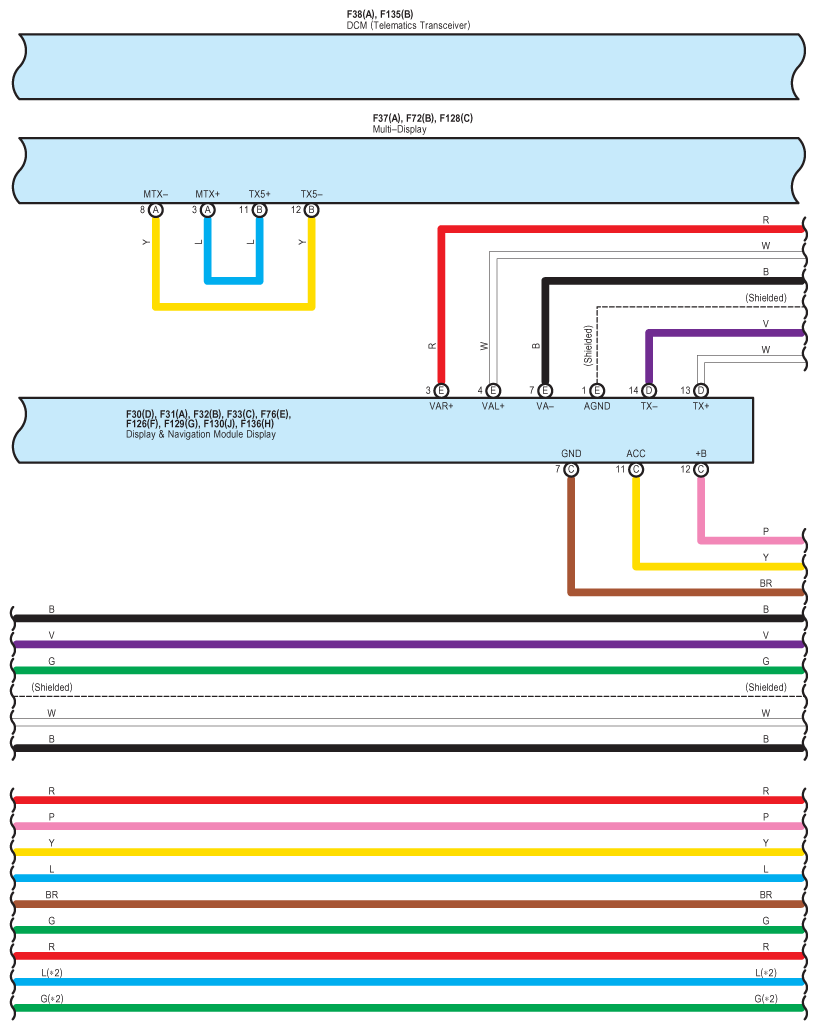

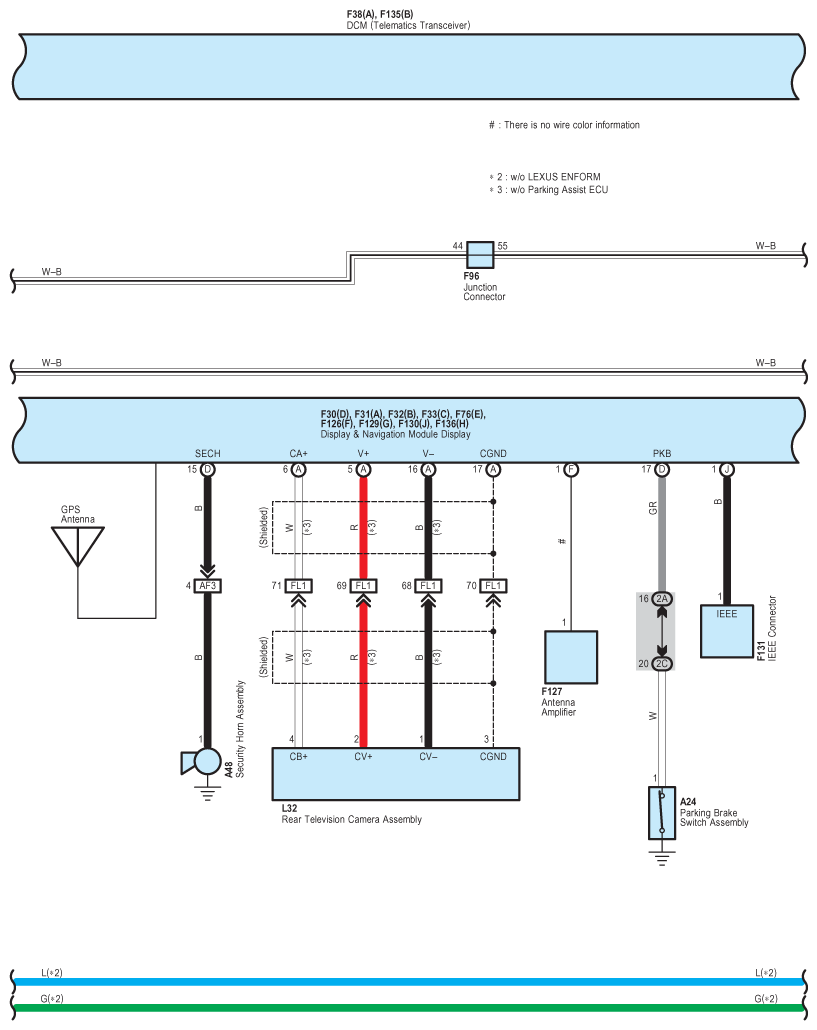

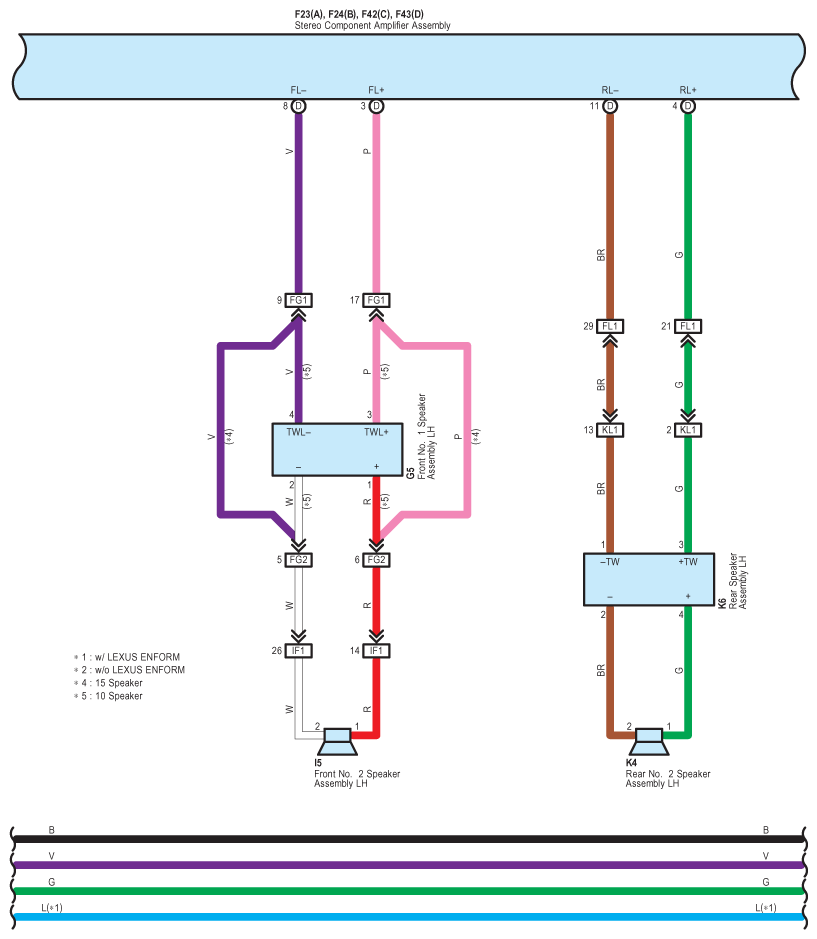

Fig 6: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (6 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

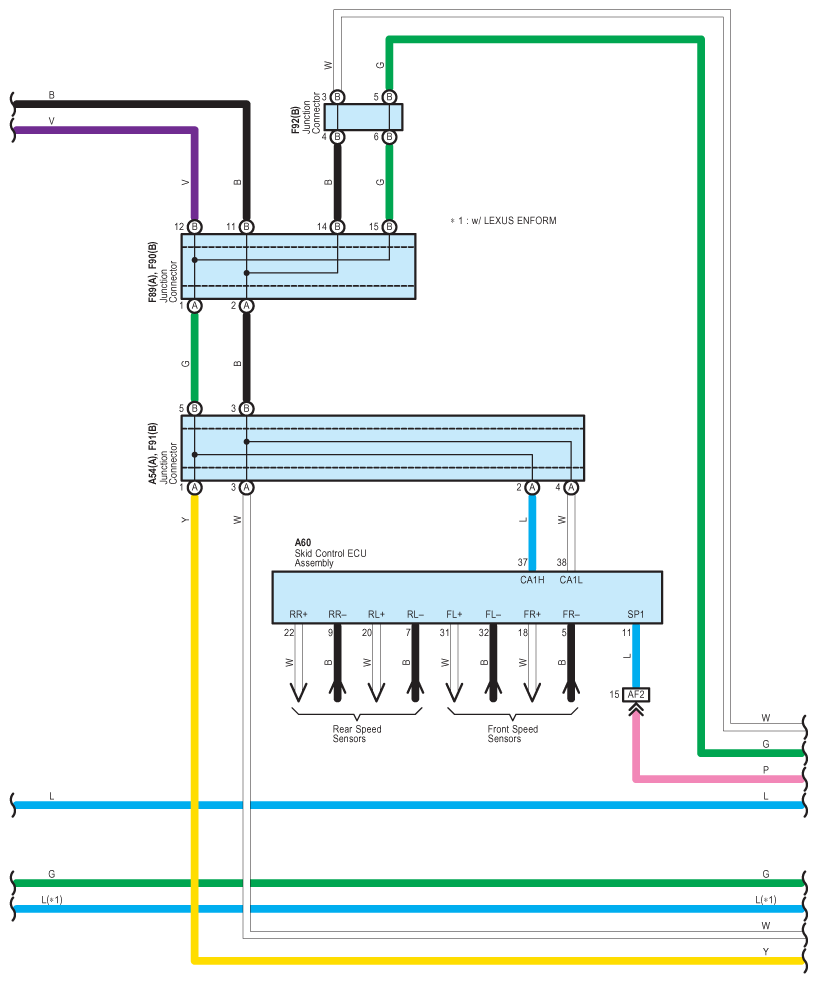

Fig 7: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (7 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

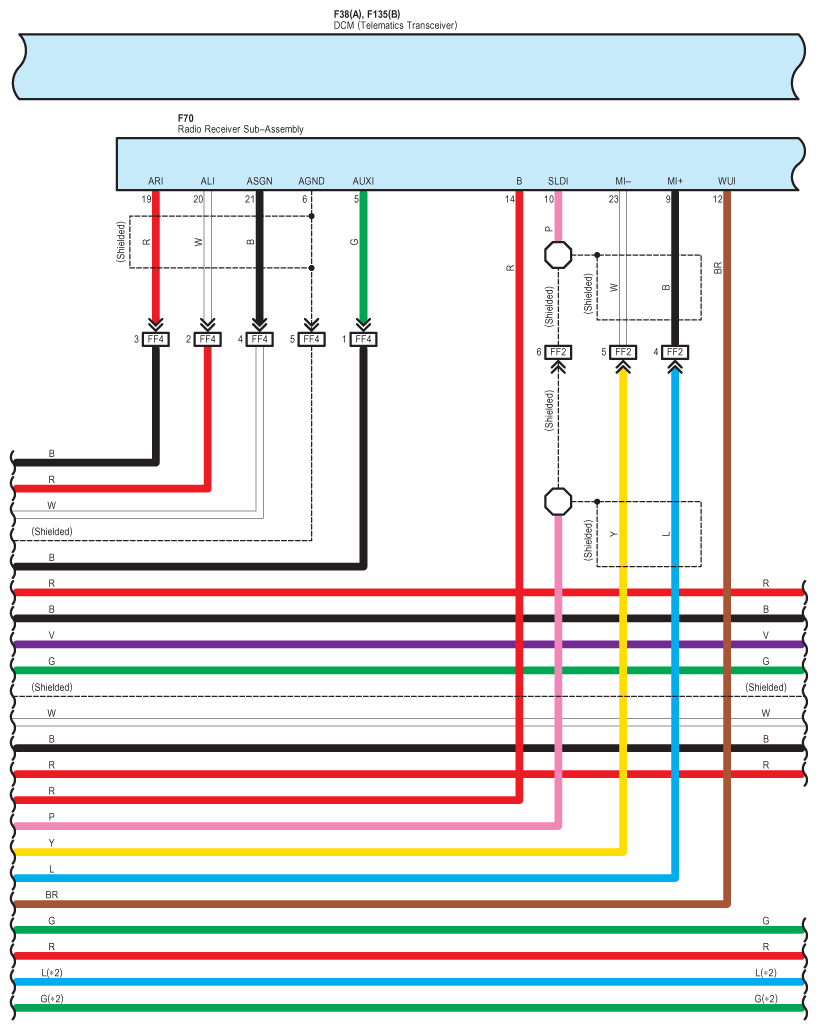

Fig 8: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (8 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (9 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (10 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (11 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (12 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (13 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (14 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (15 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (16 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (17 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (18 Of 26)

Fig 19: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (19 Of 26)

Fig 20: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (20 Of 26)

Fig 21: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (21 Of 26)

Fig 22: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (22 Of 26)

Fig 23: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (23 Of 26)

Fig 24: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (24 Of 26)

Fig 25: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (25 Of 26)

Fig 26: Audio System (W/Lexus Navigation System), Lexus Enform, Lexus Navigation System And Parking Assist (Rear View Monitor) (W/O Wide-View Front Monitor) - Wiring Diagram (26 Of 26)
