Power Source Mode does not Change to ON (IG and ACC): Wiring Diagram

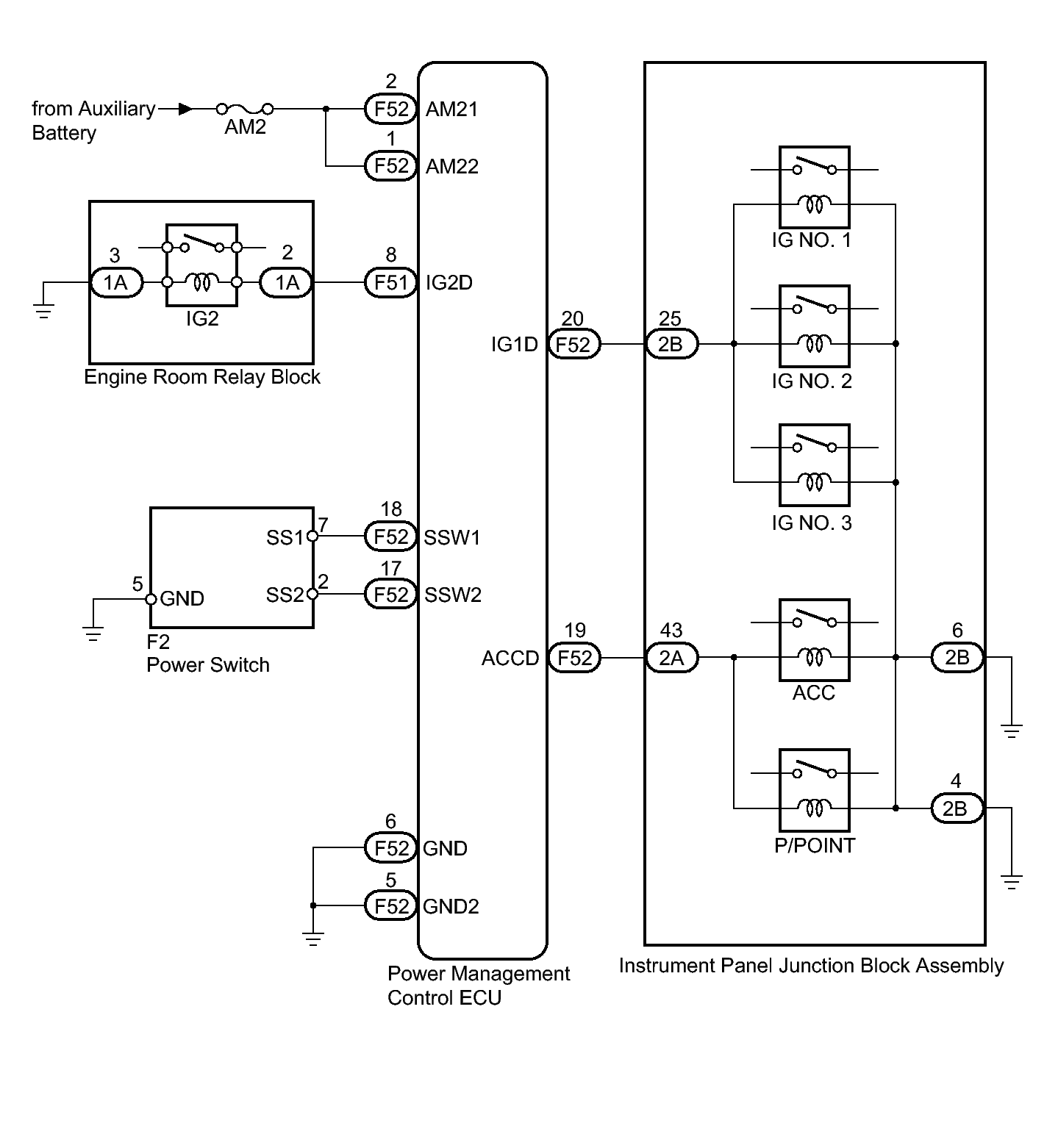

Fig 1: Identifying Power Source Mode Wiring Diagram
GTY395075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
