DTC P0112, P0113: Intake Air Temperature Circuit Low Input; Intake Air Temperature Circuit High Input: Wiring Diagram

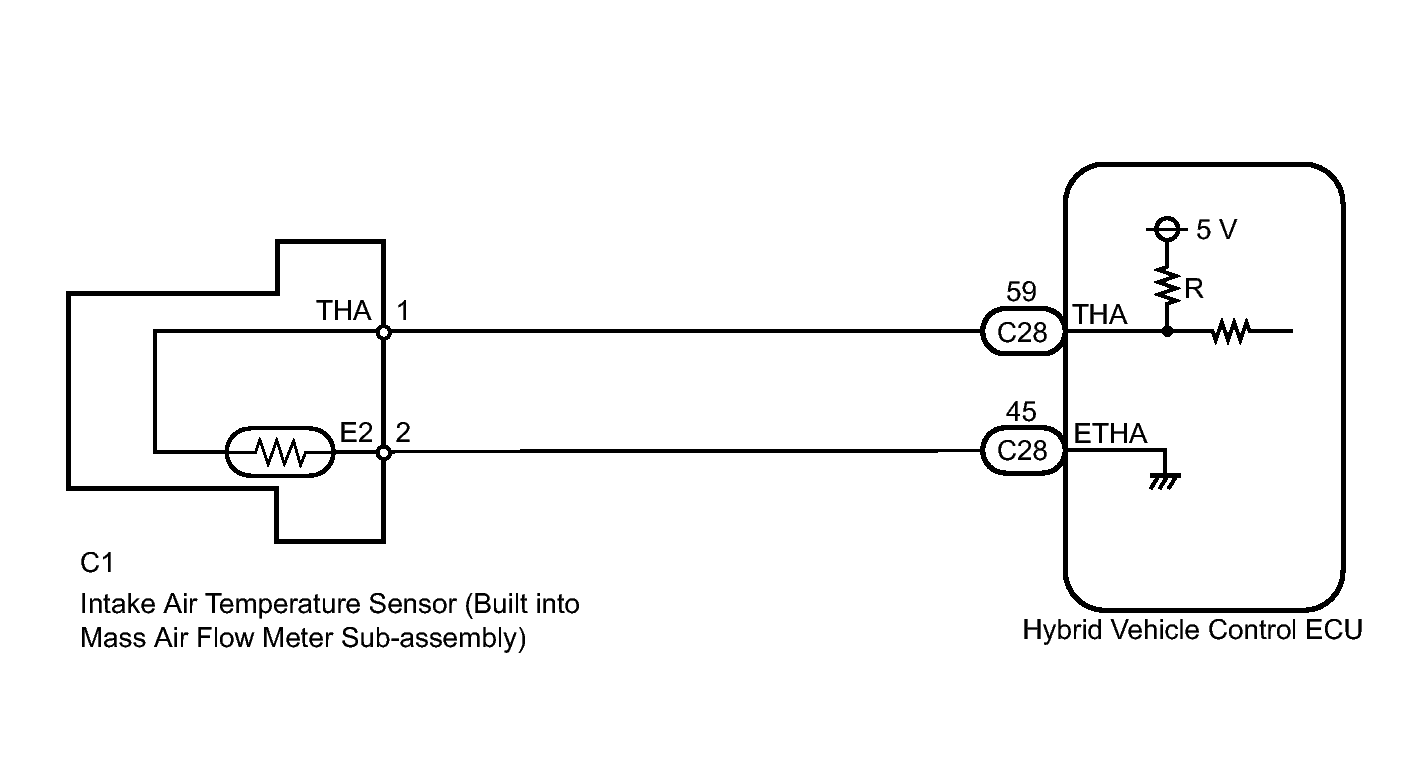

Fig 1: C1 Intake Air Temperature Sensor (Built Into Mass Air Flow Meter Sub - Assembly) - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
