DTC P3108-535, P3108-536, P3108-538: Lost Communication with A/C System Control Module; Lost Communication with A/C System Control Module; Lost Communication with A/C System Control Module: Wiring Diagram

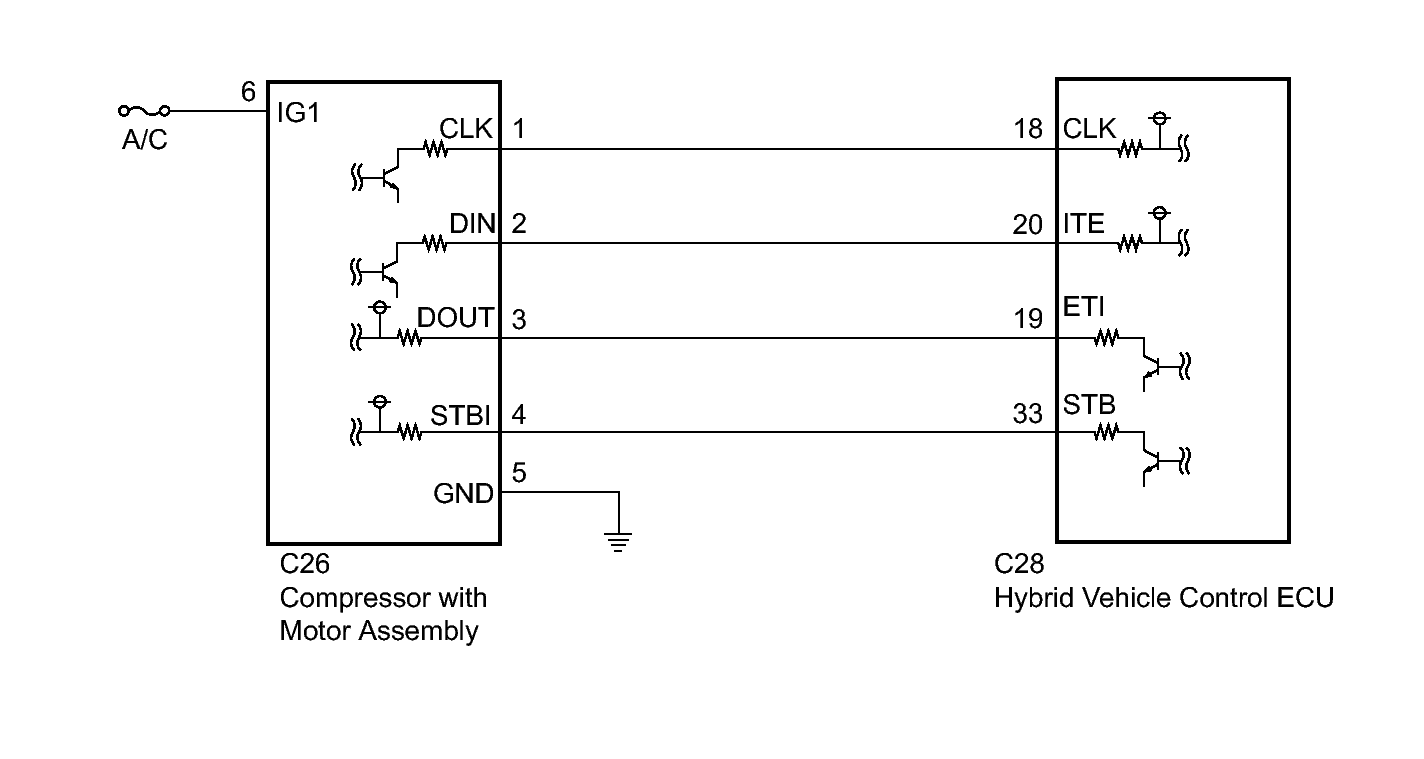

Fig 1: C26 Compressor With Motor Assembly - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
