Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier
- Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier

DESCRIPTION

This circuit is used when an incoming cellular phone voice in the "Bluetooth" hands-free system is received.

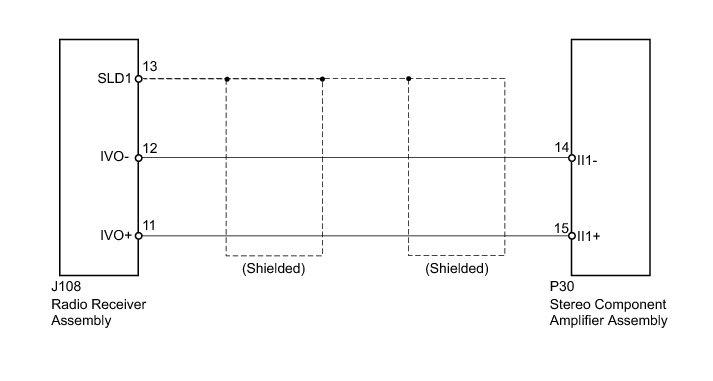

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR

(a) Disconnect the radio receiver assembly and stereo component amplifier assembly connectors.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
