DTC P0230: Fuel Pump Primary Circuit: Wiring Diagram

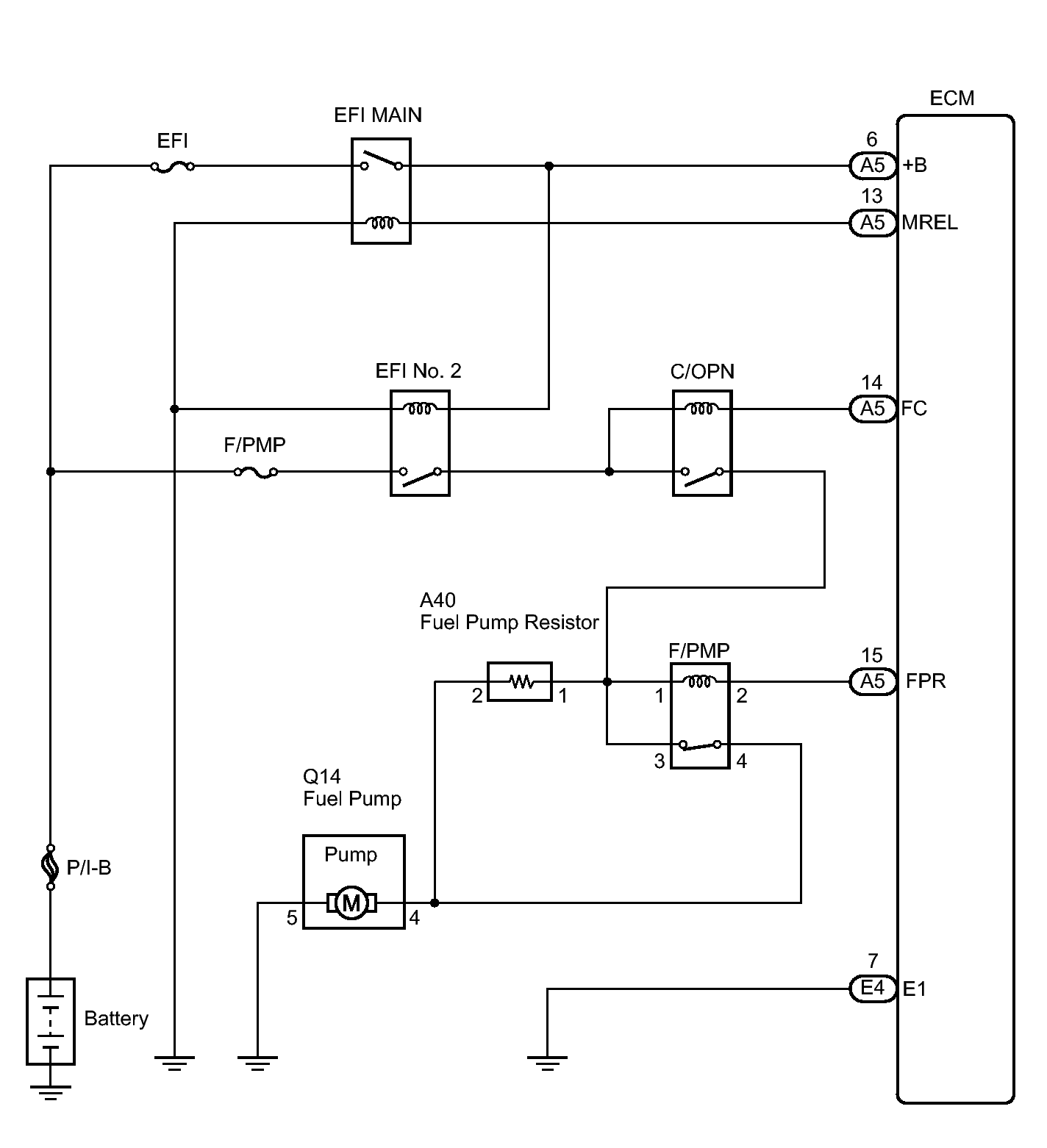

Fig 1: Identifying Engine Control Circuit Wiring Diagram
GTY348183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
