Multi-media Interface ECU Power Source Circuit: Procedure

1. Disconnect the multi-media interface ECU connector.
2. Measure the voltage according to the value(s) in the table below.

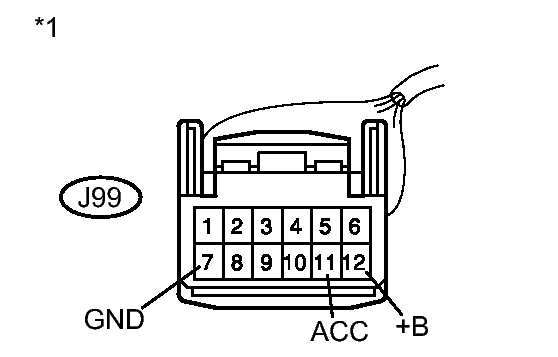

   Fig 1: J99 Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   STANDARD VOLTAGE



   Tester Connection	Condition	Specified Condition
   J99-12 (+B) - J99-7 (GND)	Always	11 to 14 V
   J99-11 (ACC) - J99-7 (GND)	Engine switch on (ACC)	11 to 14 V

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Multi-media Interface ECU)

NG → See step   2

OK → See step   3

1. Disconnect the display and navigation module display connector.
2. Measure the resistance according to the value(s) in the table below.

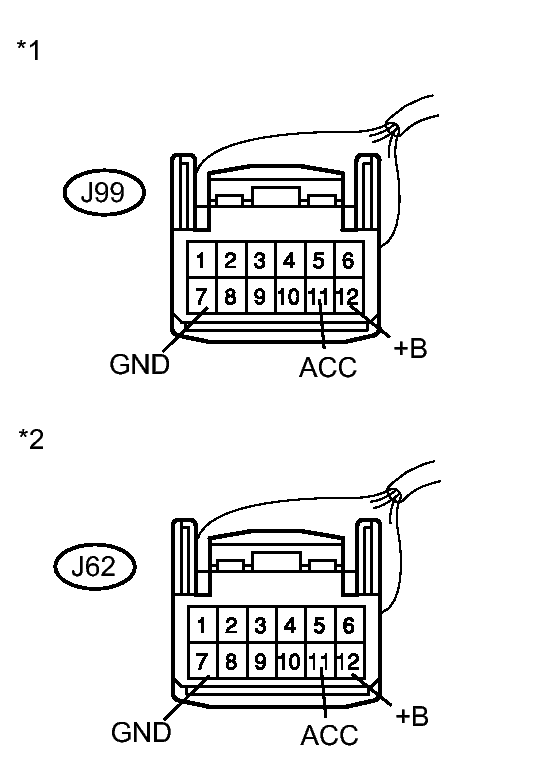

   Fig 2: J99 And J62 Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   J99-11 (ACC) - J62-11 (ACC)	Always	Below 1 Ω
   J99-12 (+B) - J62-12 (+B)	Always	Below 1 Ω
   J99-7 (GND) - J62-7 (GND)	Always	Below 1 Ω
   J99-11 (ACC) - Body ground	Always	10 kΩ or higher
   J99-12 (+B) - Body ground	Always	10 kΩ or higher
   J99-7 (GND) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Multi-media Interface ECU)
   *2	Front view of wire harness connector (to Display and Navigation Module Display)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
