Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier: Procedure

1. Disconnect the radio receiver assembly and stereo component amplifier assembly connectors.

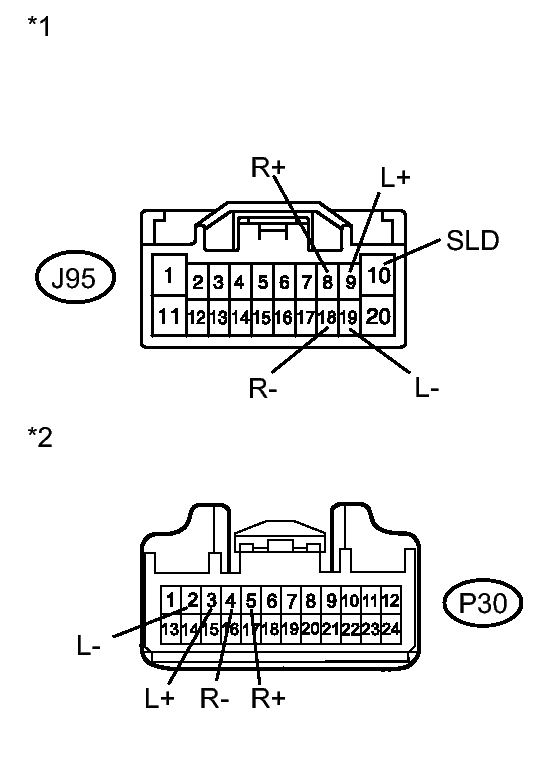

   Fig 1: J95 And P30 Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   J95-9 (L+) - P30-3 (L+)	Always	Below 1 Ω
   J95-19 (L-) - P30-2 (L-)	Always	Below 1 Ω
   J95-8 (R+) - P30-5 (R+)	Always	Below 1 Ω
   J95-18 (R-) - P30-4 (R-)	Always	Below 1 Ω
   J95-9 (L+) - Body ground	Always	10 kΩ or higher
   J95-19 (L-) - Body ground	Always	10 kΩ or higher
   J95-8 (R+) - Body ground	Always	10 kΩ or higher
   J95-18 (R-) - Body ground	Always	10 kΩ or higher
   J95-10 (SLD) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Radio Receiver Assembly)
   *2	Front view of wire harness connector (to Stereo Component Amplifier Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
