Audio / Video System (W/O Navigation) (Multi-Display) (Diagnostic Codes & Symptom Tests)
>>
AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display)
>>
DTC B156B: Multi-media Interface ECU Disconnected; DTC B156E: No Response from Multi-media Interface ECU
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B156B: Multi-media Interface ECU Disconnected; DTC B156E: No Response from Multi-media Interface ECU: Wiring Diagram

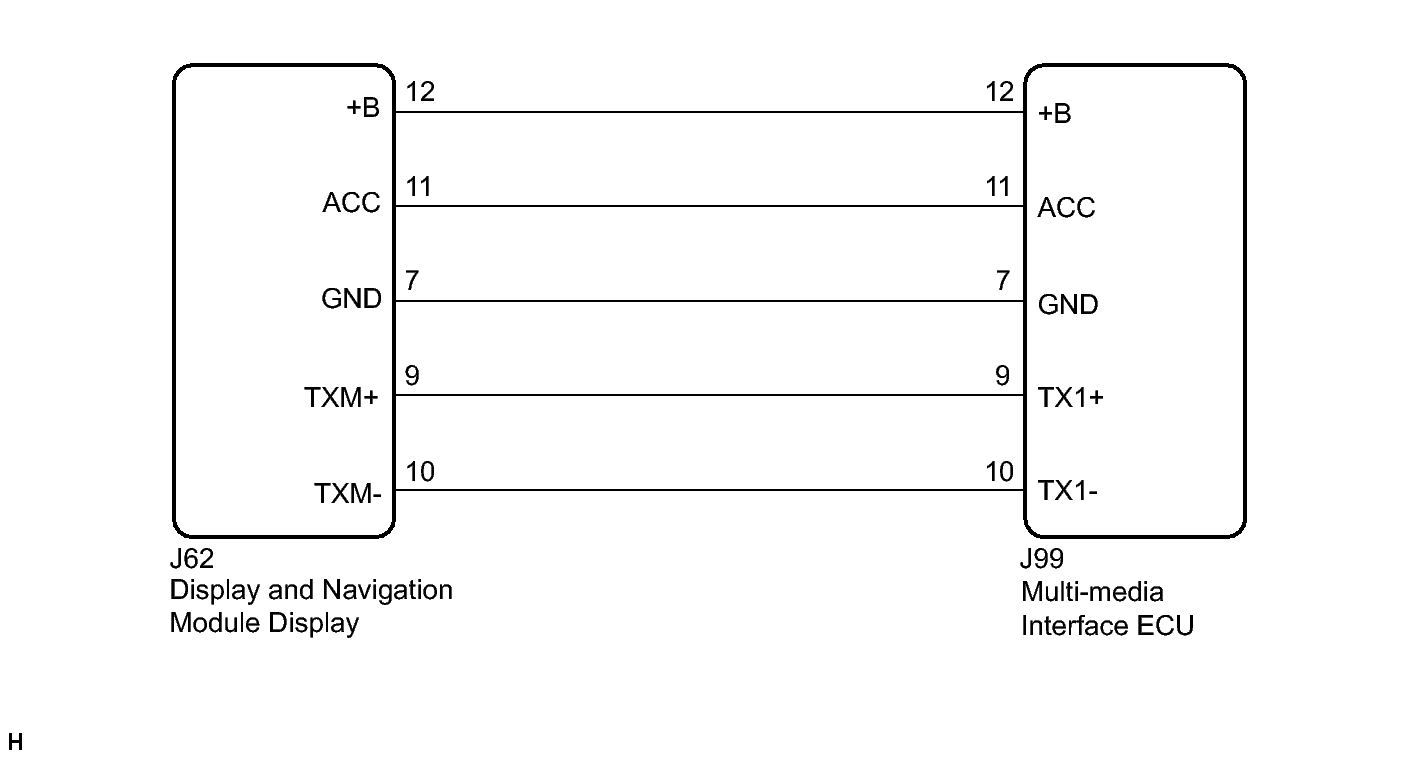

Fig 1: Multi-media Interface ECU Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
