Radio Receiver Power Source Circuit: Procedure

INSPECT RADIO RECEIVER ASSEMBLY

Disconnect the radio receiver assembly connector.

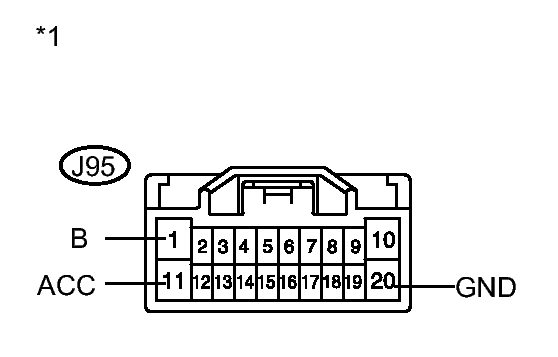

Fig 1: J95 Connector Terminal Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

STANDARD RESISTANCE

Tester Connection	Condition	Specified Condition
J95-20 (GND) - Body ground	Always	Below 1 Ω

Measure the voltage according to the value(s) in the table below.

STANDARD VOLTAGE

Tester Connection	Condition	Specified Condition
J95-1 (B) - J95-20 (GND)	Always	11 to 14 V
J95-11 (ACC) - J95-20 (GND)	Engine switch on (ACC)	11 to 14 V

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Radio Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step 2

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
