Voice Guidance does not Function: Procedure

1. Display the "Voice Settings" screen.
2. Check that "Voice Volume" is not "Off".

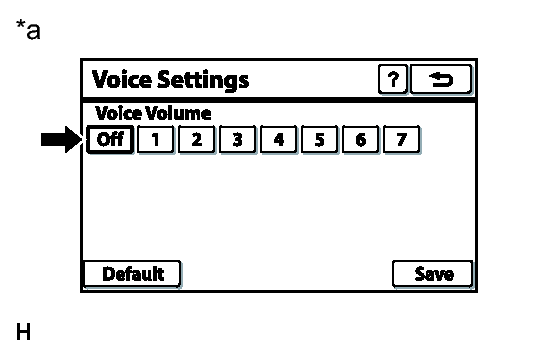

   Fig 1: Voice Settings Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Voice volume is not "Off".

   TEXT IN ILLUSTRATION



   *a

   Example

NG → TURN VOICE VOLUME EXCEPT "Off"

OK: Go to next step

1. Check that the data disc is not deformed or cracked.
   Fig 2: Identifying Map Disc Is Not Cracked Or Deformed

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   No deformations or cracks on the data disc

NG → REPLACE DATA DISC

OK: Go to next step

1. Check that condensation is not likely to occur in the cabin, and that the temperature is not high or extremely low in the cabin.

   HINT:

   • A humid cabin and a rapid change in temperature may lead to condensation. Condensation in the cabin may cause a short circuit.
   • The audio and visual system may not operate normally when the temperature is -20°C (-4°F) or lower, or 65°C (149°F) or higher.

   OK

   Condensation is not likely being produced and the temperature is not high or extremely low.

NG → SET CABIN TO APPROPRIATE TEMPERATURE

OK: Go to next step

1. Check that audio sound can be heard from the driver side speaker.

   OK

   Sound can be heard from the audio system.

NG → See step   5

OK → See step   6
