Sound Signal Circuit between Multi-display and Multi-media Interface ECU: Wiring Diagram

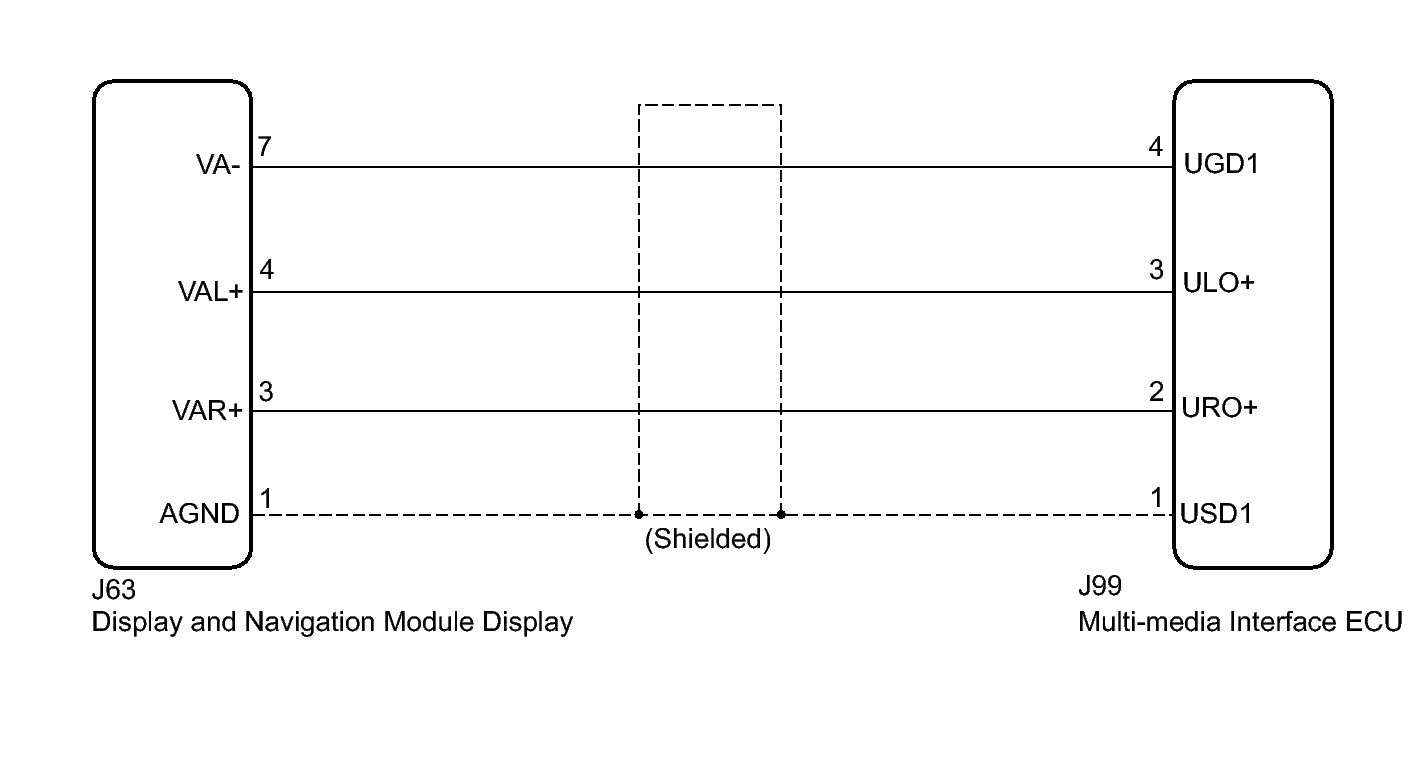

Fig 1: Sound Signal Circuit Wiring Diagram
GTY394546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
