Wiper and Washer Switch Circuit: Wiring Diagram

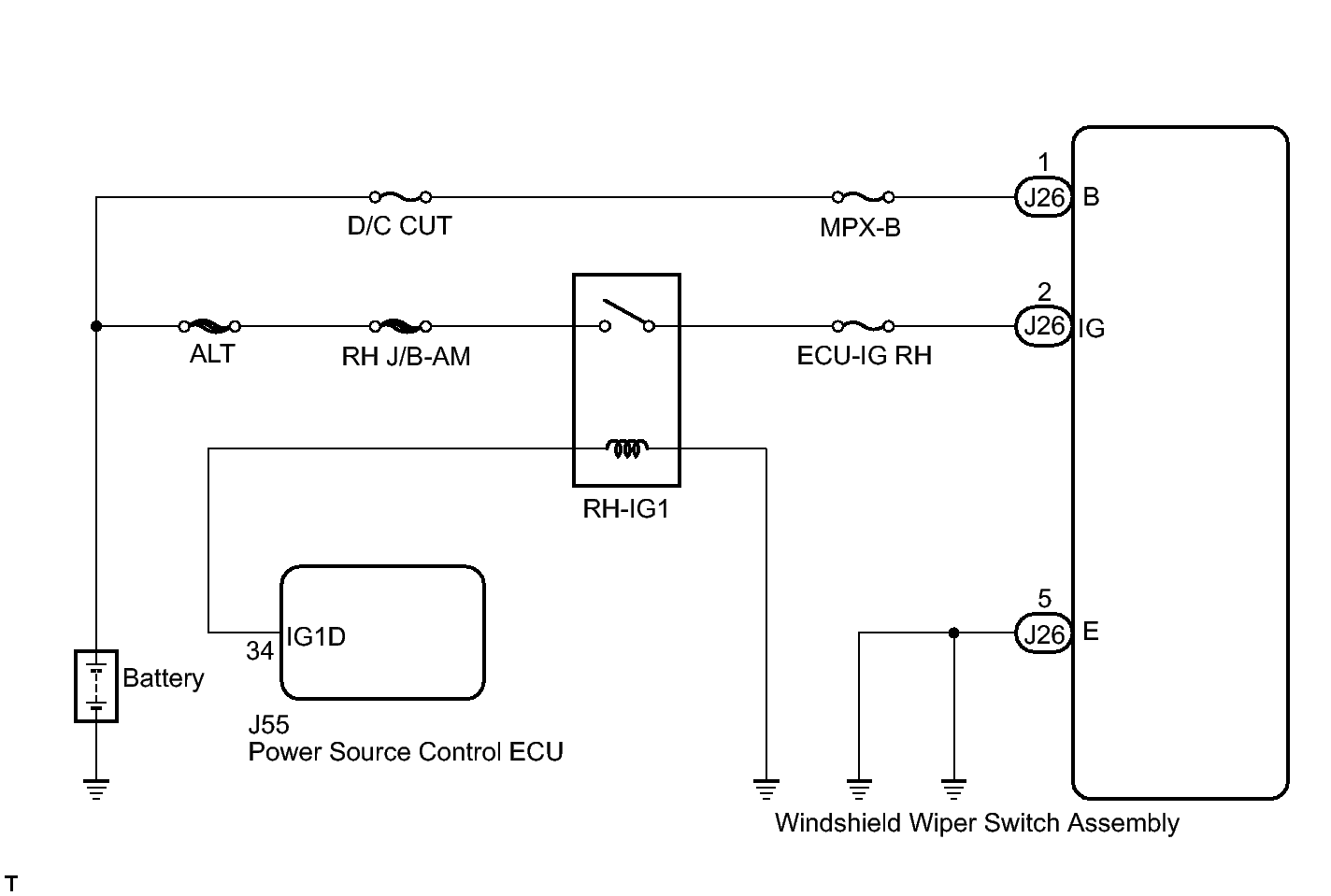

Fig 1: Wiper and Washer Switch Circuit Wiring Diagram
GTY151004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
