Engine Room Relay Block No. 2 Assembly and Engine Room Junction Block No. 2 Assembly Inner Circuit

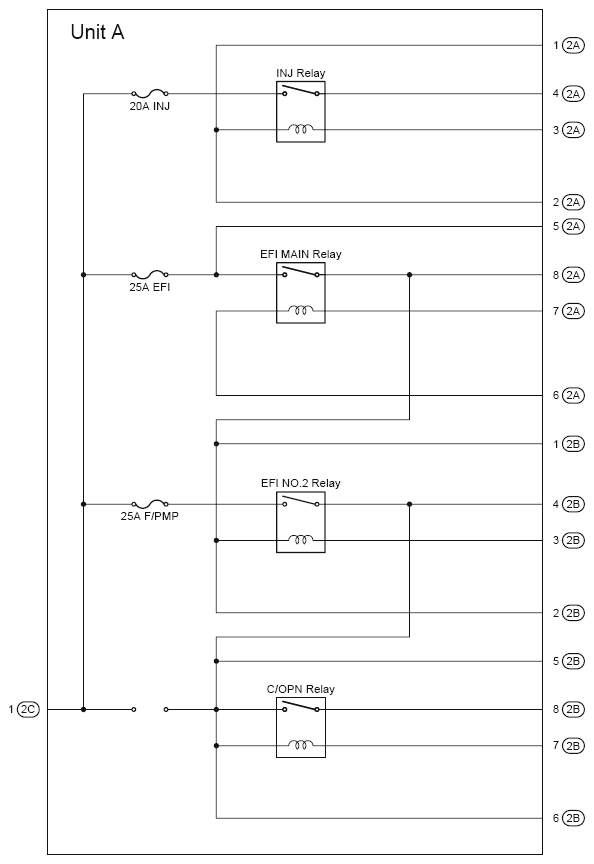

Fig 1: Engine Room Relay Block No. 2 Assembly And Engine Room J/B No. 2 Assembly Inner Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 2 AND J/B NO. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
INJ Relay
EFI Main Relay
EFI No. 2 Relay
C/OPN Relay

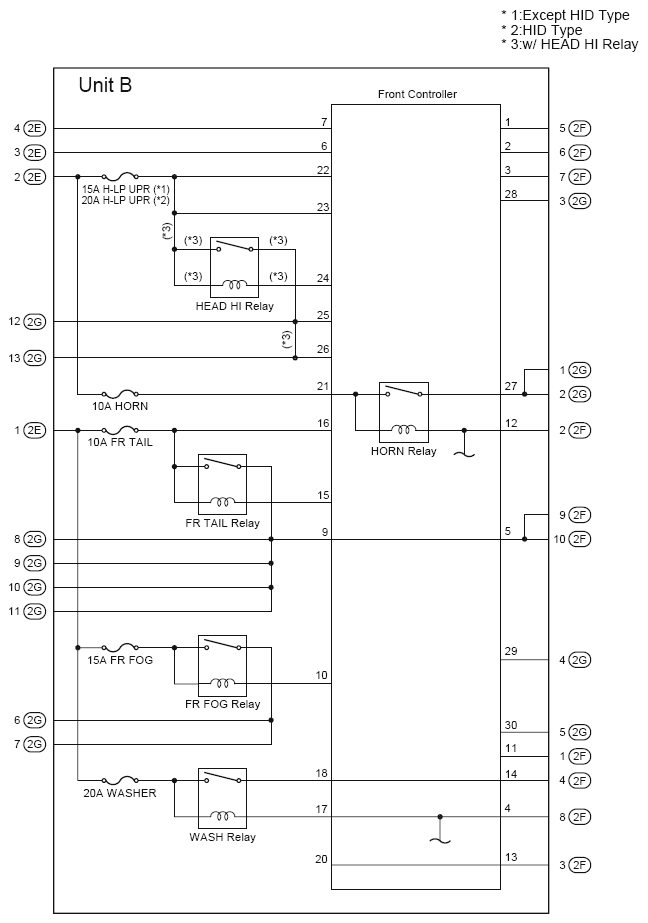

Fig 2: Engine Room Relay Block No. 2 Assembly And Engine Room J/B No. 2 Assembly Inner Circuit Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 2 AND J/B NO. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
*3	w/ Head HI Relay
-	Head HI Relay
-	Horn Relay
-	FR Tail Relay
-	FR Fog Relay
-	Wash Relay

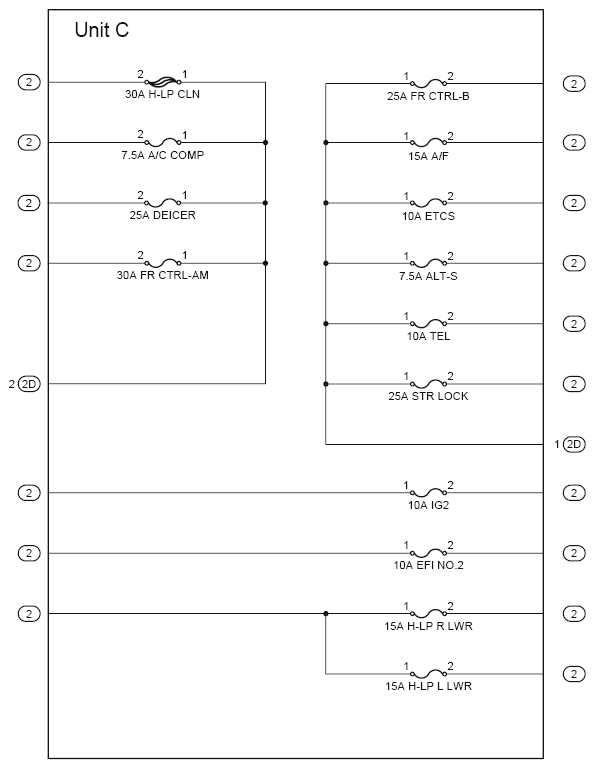

Fig 3: Engine Room R/B No. 2 Assembly And Engine Room J/B No. 2 Assembly Inner Circuit Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
