Parts Location: Illustration

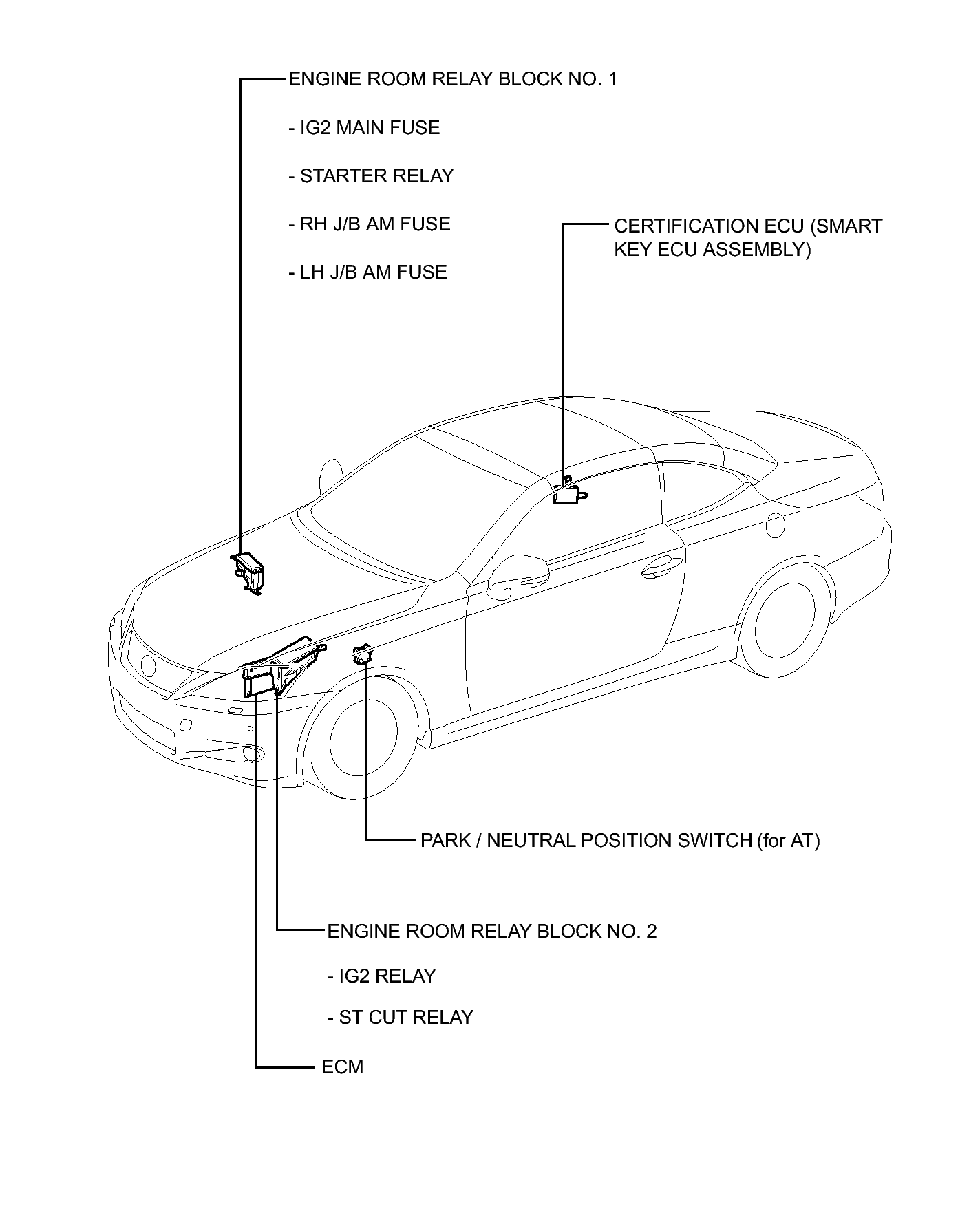

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (1 Of 3)
GTY277647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

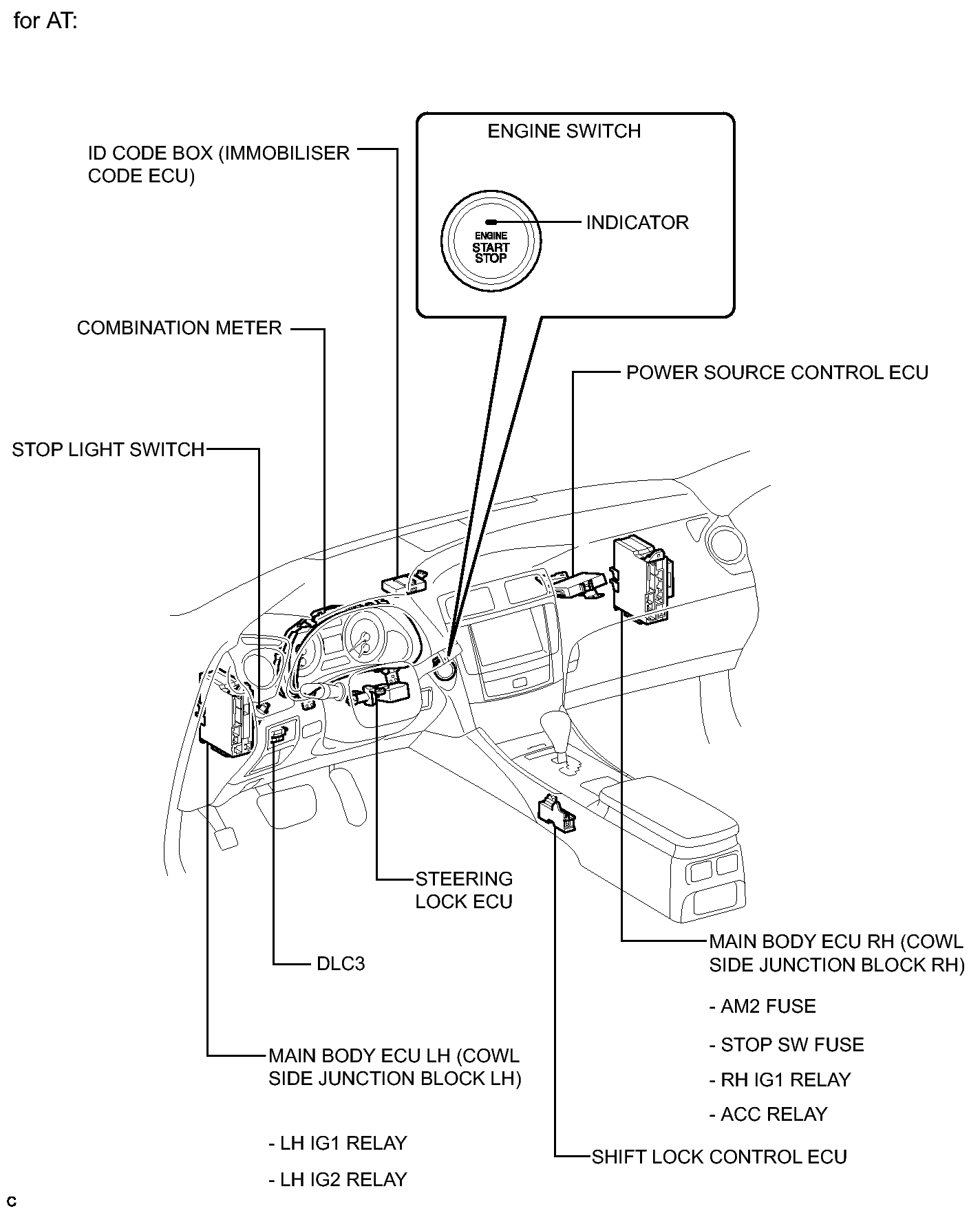

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (2 Of 3)
GTY277852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

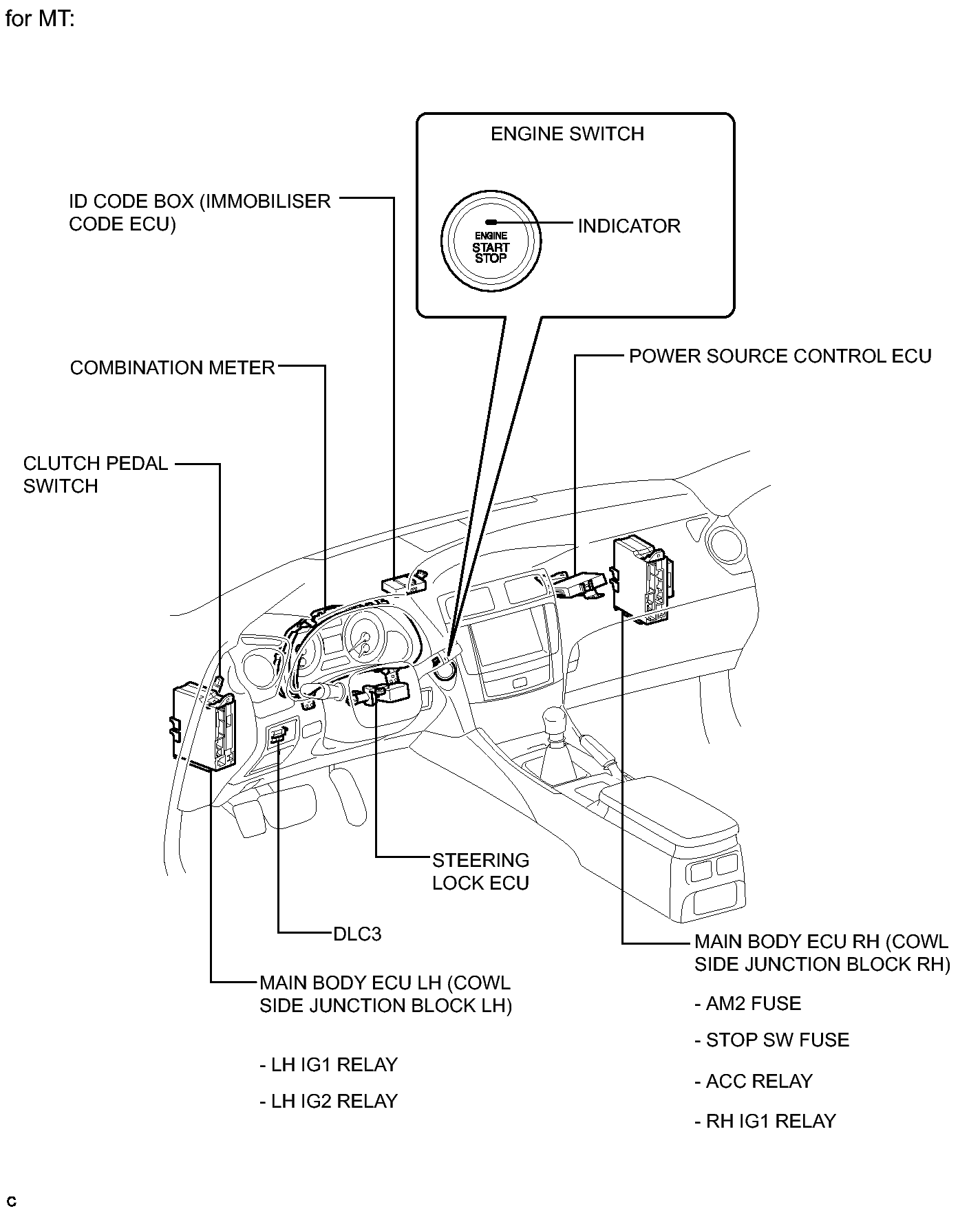

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (3 Of 3)
GTY255015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
