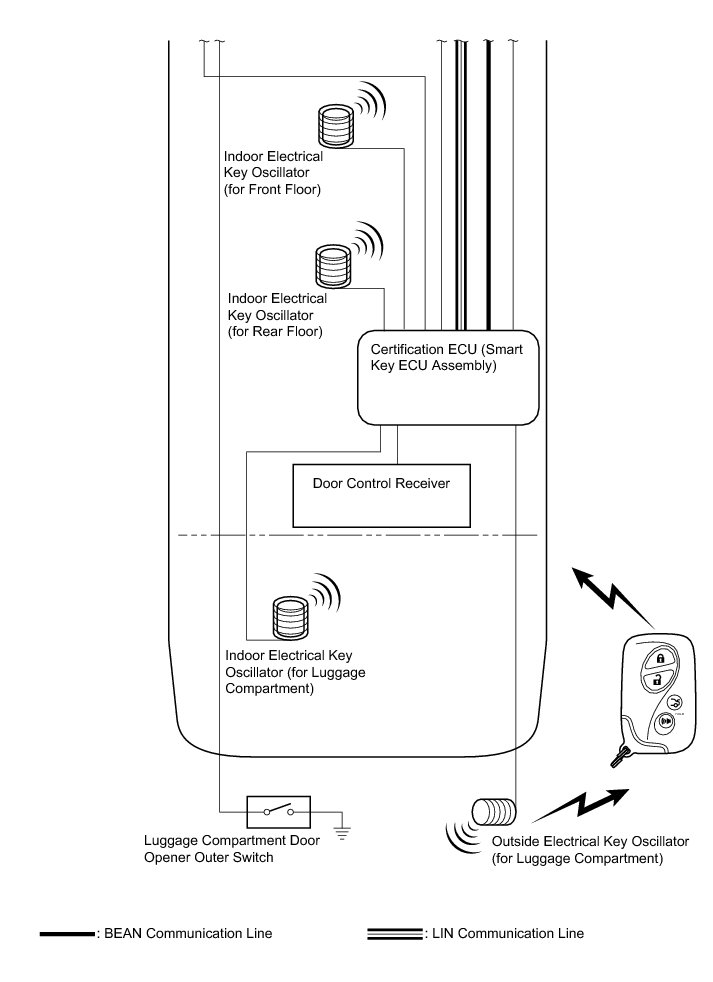

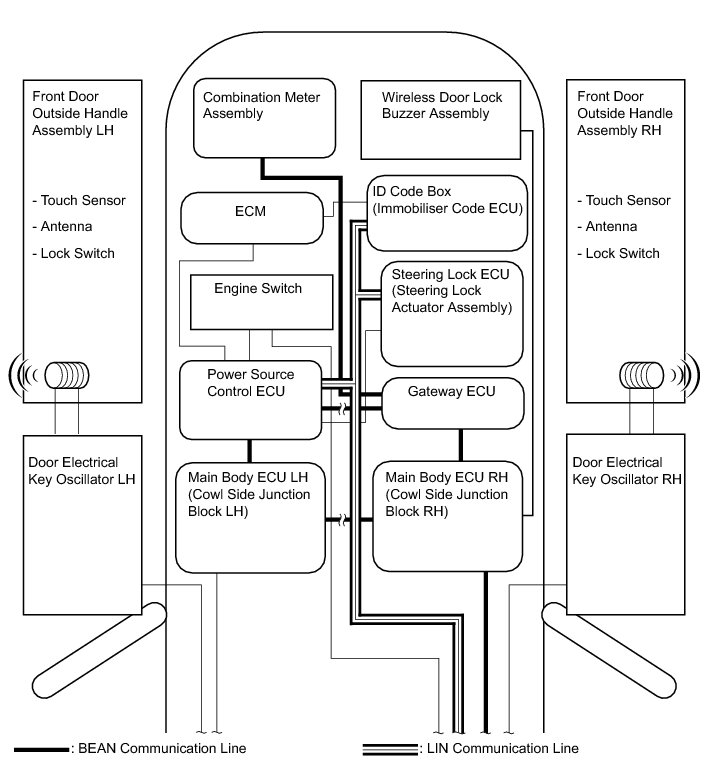

System Diagram
THEFT DETERRENT /
KEYLESS ENTRY
: SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function): SYSTEM DIAGRAM
