Multi-media Interface ECU Power Source Circuit

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): Multi-media Interface ECU Power Source Circuit
- Multi-media Interface ECU Power Source Circuit

DESCRIPTION

This circuit provides power to the multi-media interface ECU.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT MULTI-MEDIA INTERFACE ECU

(a) Disconnect the multi-media interface ECU connector.

(b) Measure the voltage according to the value(s) in the table below.





Standard Voltage:

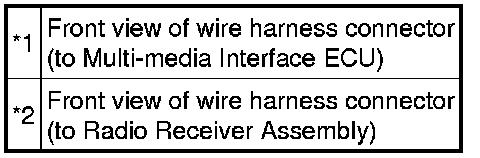

Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR

OK -- REPLACE MULTI-MEDIA INTERFACE ECU Removal

2. CHECK HARNESS AND CONNECTOR

(a) Disconnect the radio receiver assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

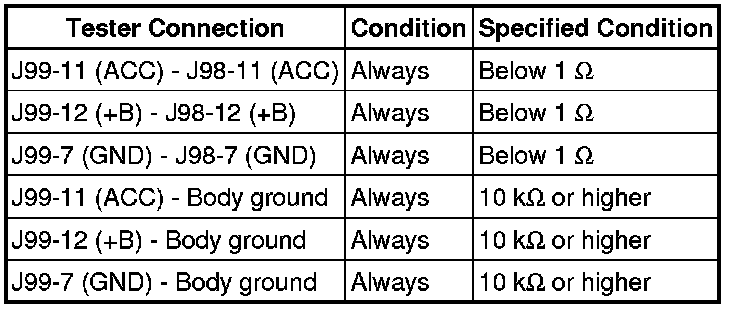

Standard Resistance:

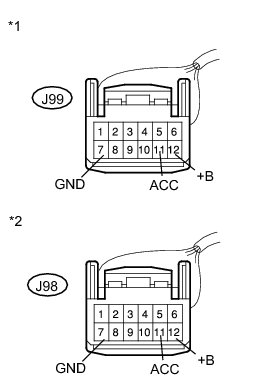

Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
