Integration Control and Panel Assembly Power Source Circuit: Wiring Diagram

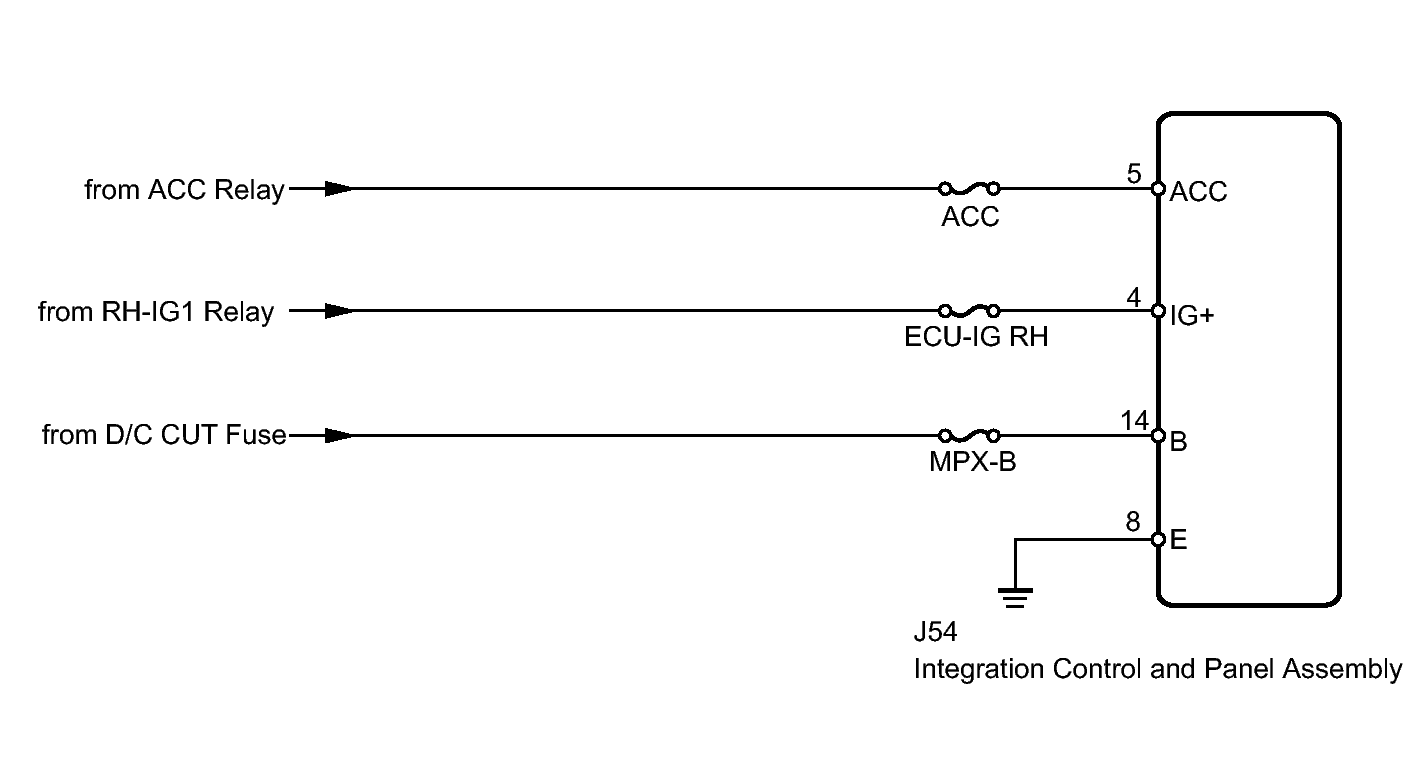

Fig 1: View Of Integration Control and Panel Assembly Power Source Circuit Wiring Diagram
GTY277023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
