Starter Relay: Testing and Inspection

2UR-GSE STARTING: RELAY: ON-VEHICLE INSPECTION

1. INSPECT STARTER RELAY

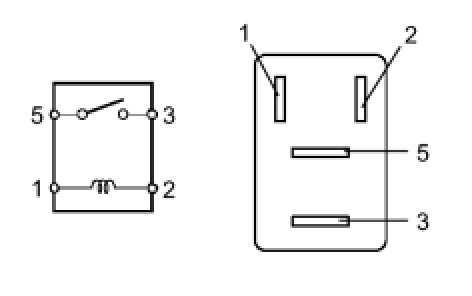

(a) Measure the resistance according to the value(s) in the table below.

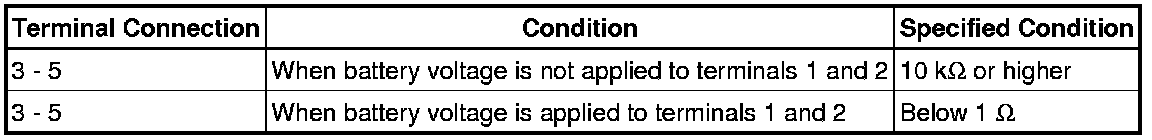

Standard Resistance:





If the resistance is not as specified, replace the relay.

2. INSPECT STARTER CUT RELAY

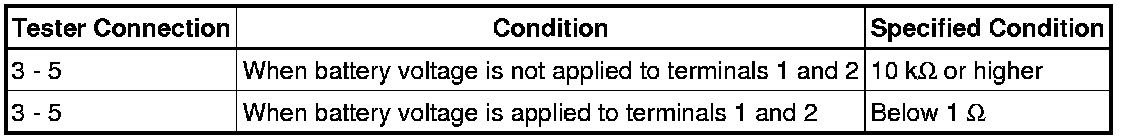

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the resistance is not as specified, replace the relay.
