Pattern Select Switch: Components: Illustration

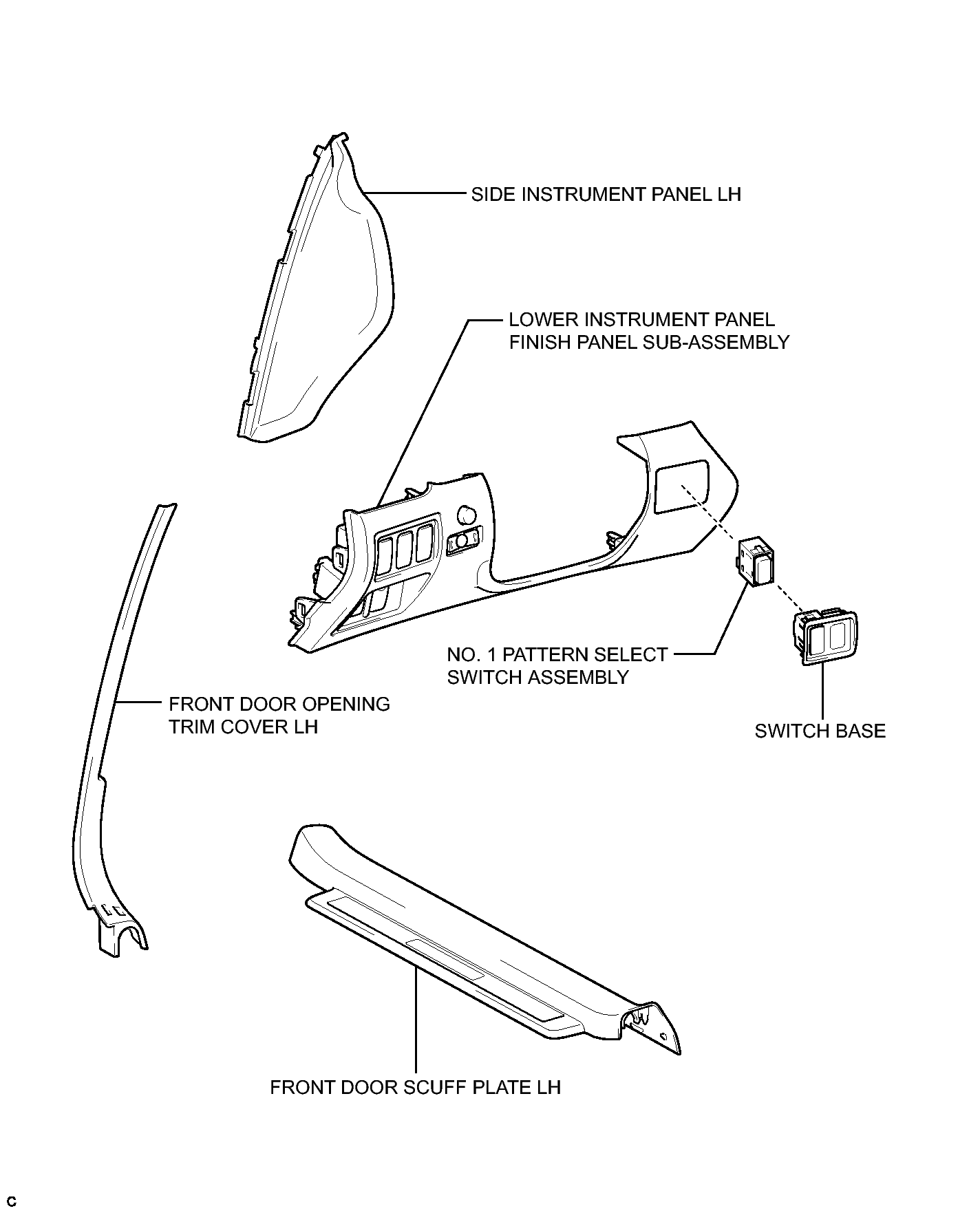

Fig 1: Identifying Pattern Select Switch Replacement Components
GTY395327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
