Automatic Transmission (Service Information): TCM: Components: Illustration

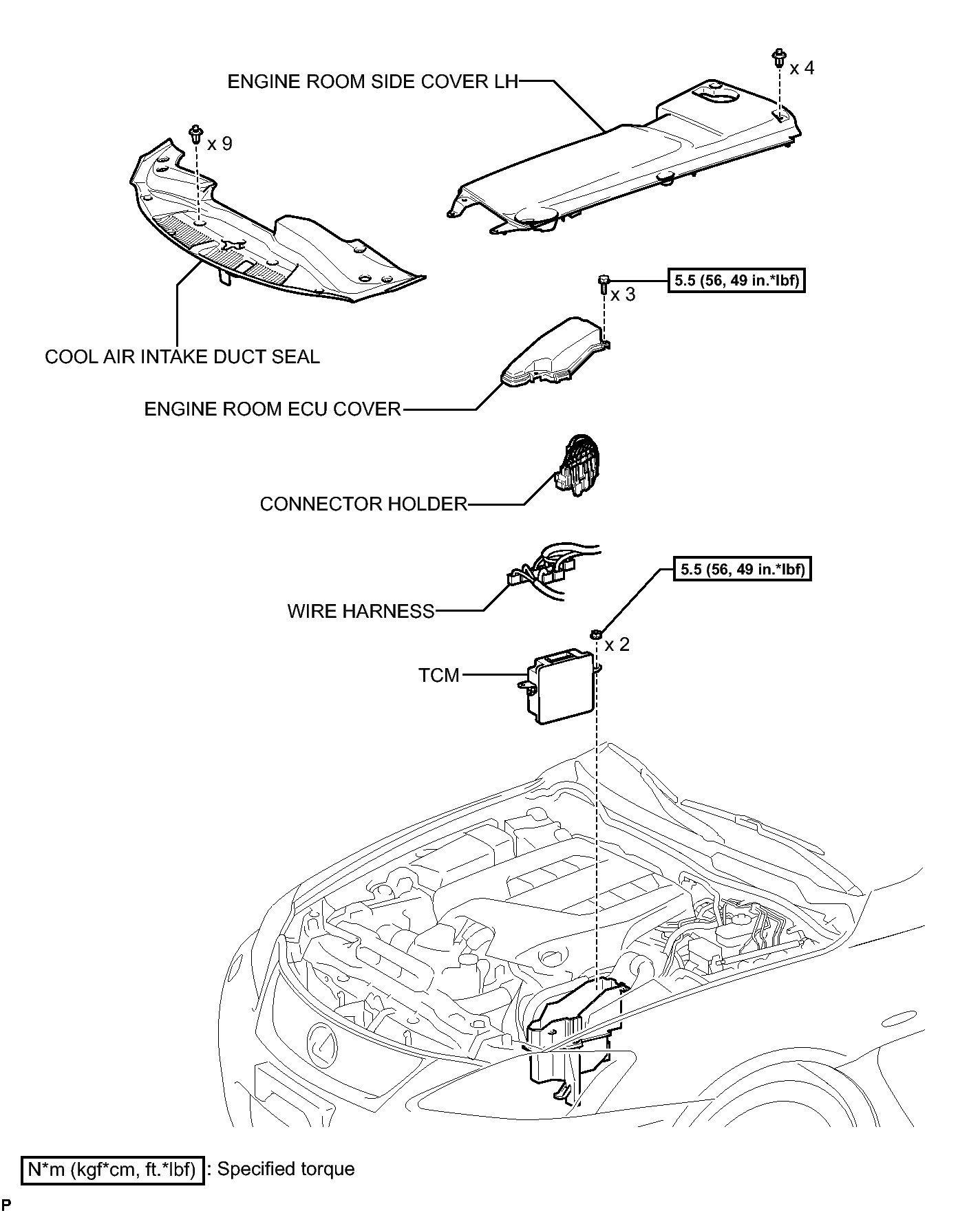

Fig 1: Identifying TCM Replacement Components with Torque Specifications
GTY149258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
