HEATED OXYGEN SENSOR (for AWD): Inspection: Inspection
- INSPECT HEATED OXYGEN SENSOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

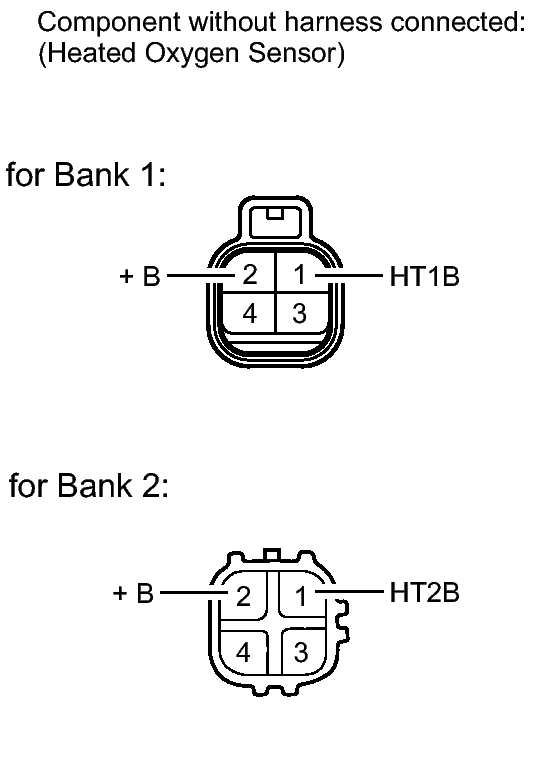

- Measure the resistance according to the value(s) in the table below.
Standard resistance
| Tester Connection |
Condition |
Specified Condition |
1 (HT1B) - 2 (+B)
1 (HT2B) - 2 (+B) |
20°C (68°F) |
11 to 16 Ω |
If the result is not as specified, replace the heated oxygen sensor.
