Audio System and LEXUS Navigation System: Notes

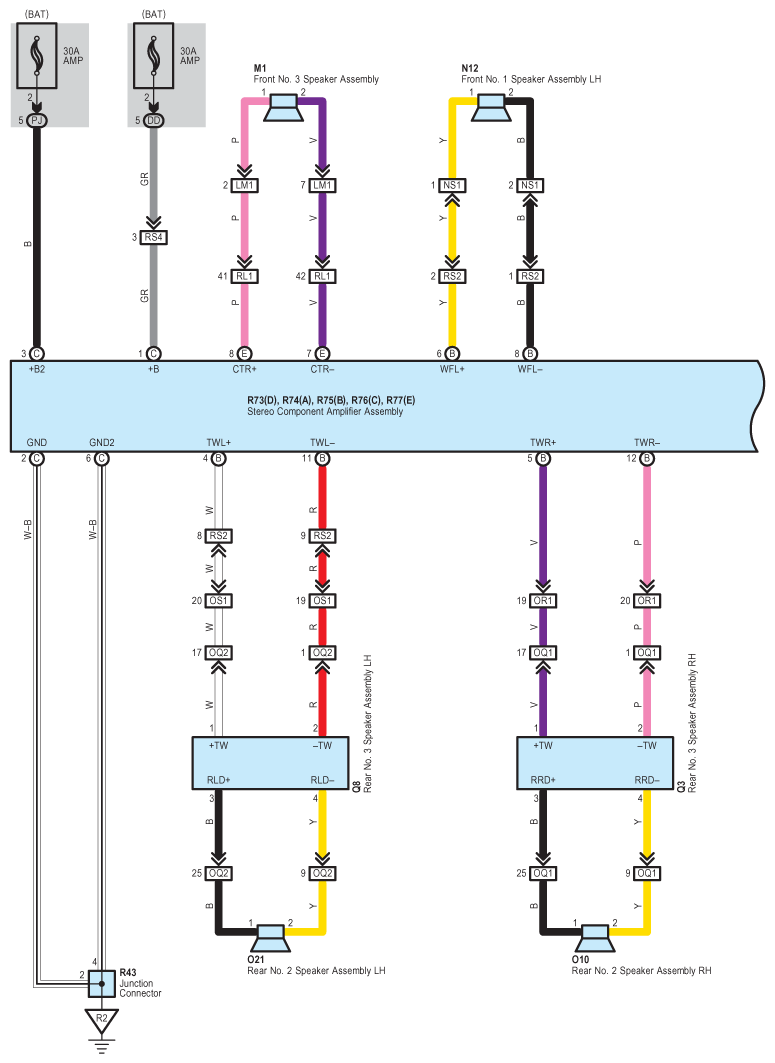

Fig 1: Audio System And LEXUS Navigation System - Wiring Diagram (1 Of 24)

G08937083

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

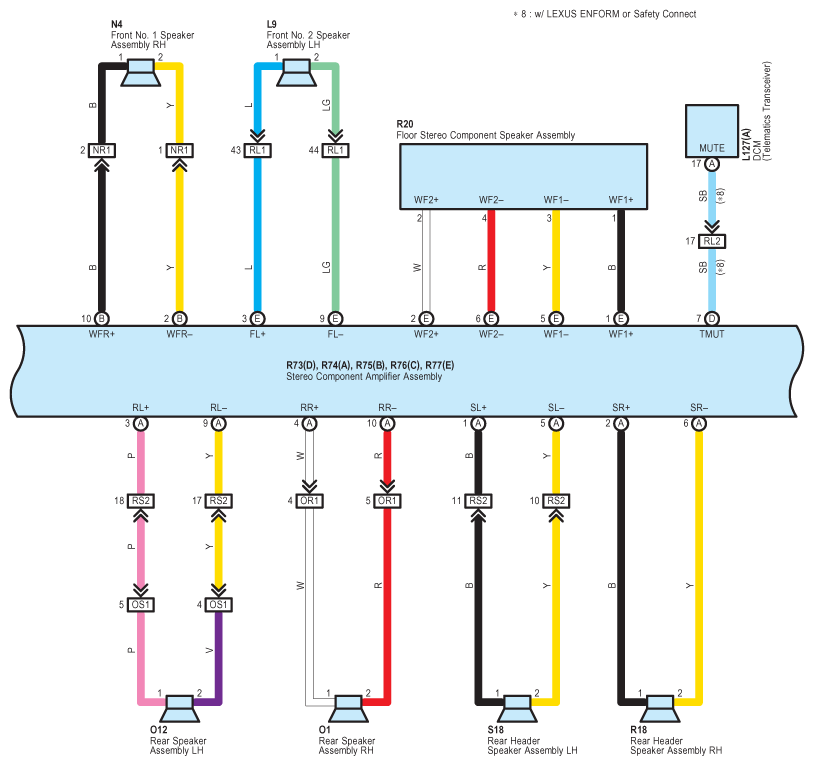

Fig 2: Audio System And LEXUS Navigation System - Wiring Diagram (2 Of 24)

G08937084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

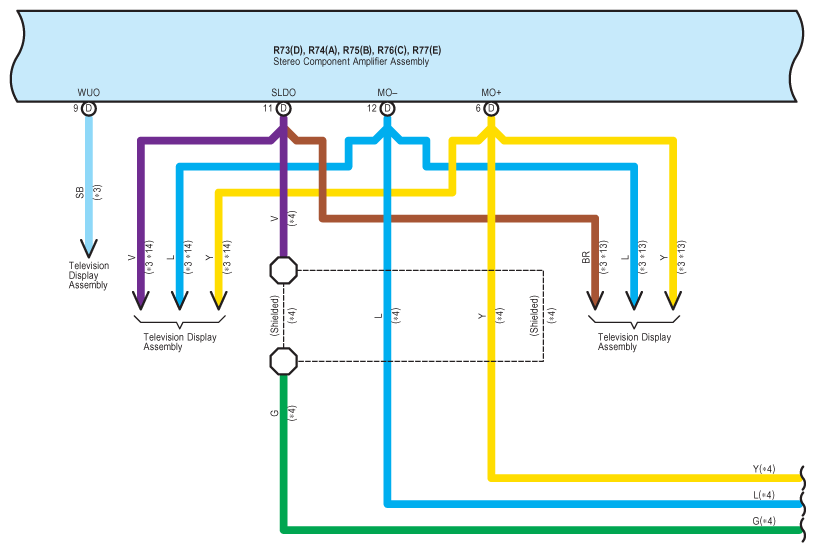

Fig 3: Audio System And LEXUS Navigation System - Wiring Diagram (3 Of 24)

G08937085

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

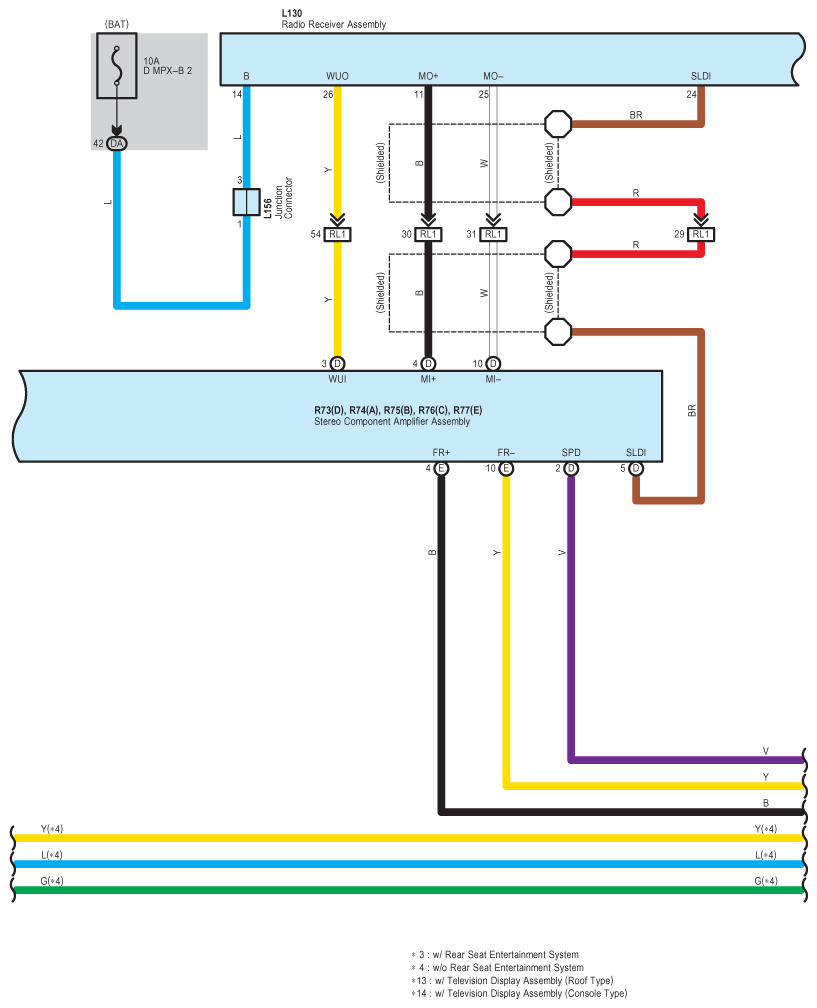

Fig 4: Audio System And LEXUS Navigation System - Wiring Diagram (4 Of 24)

G08937086

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

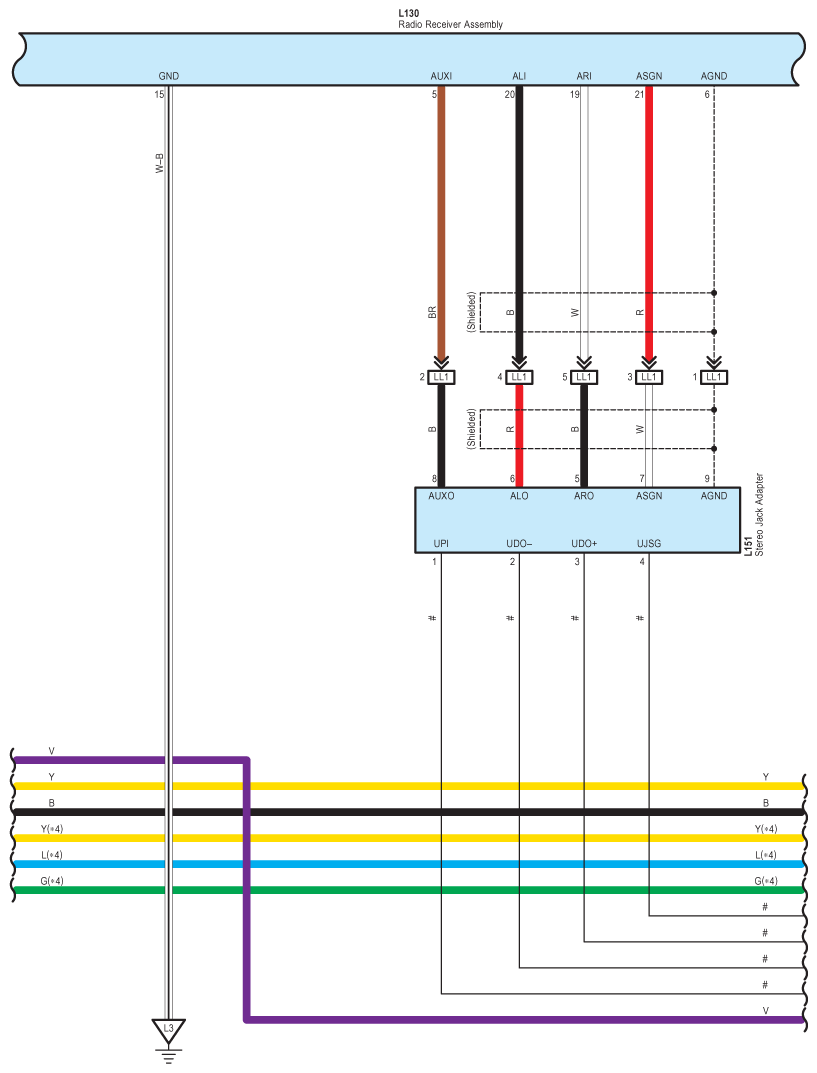

Fig 5: Audio System And LEXUS Navigation System - Wiring Diagram (5 Of 24)

G08937087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

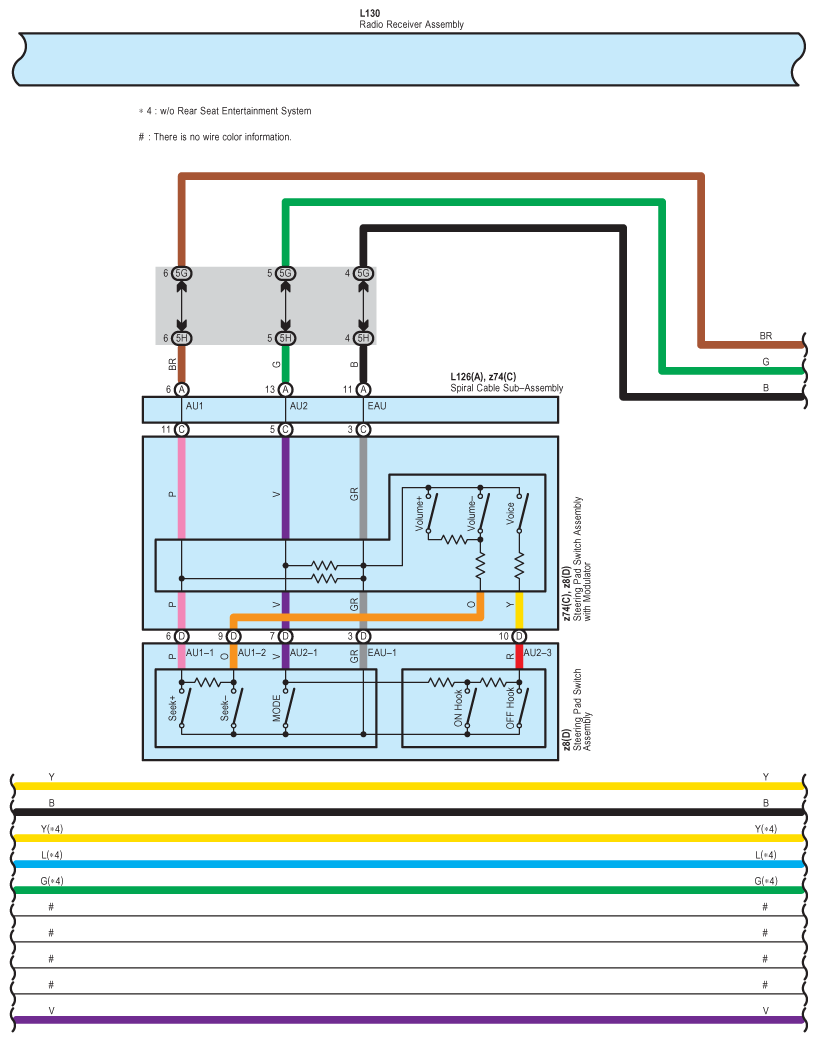

Fig 6: Audio System And LEXUS Navigation System - Wiring Diagram (6 Of 24)

G08937088

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

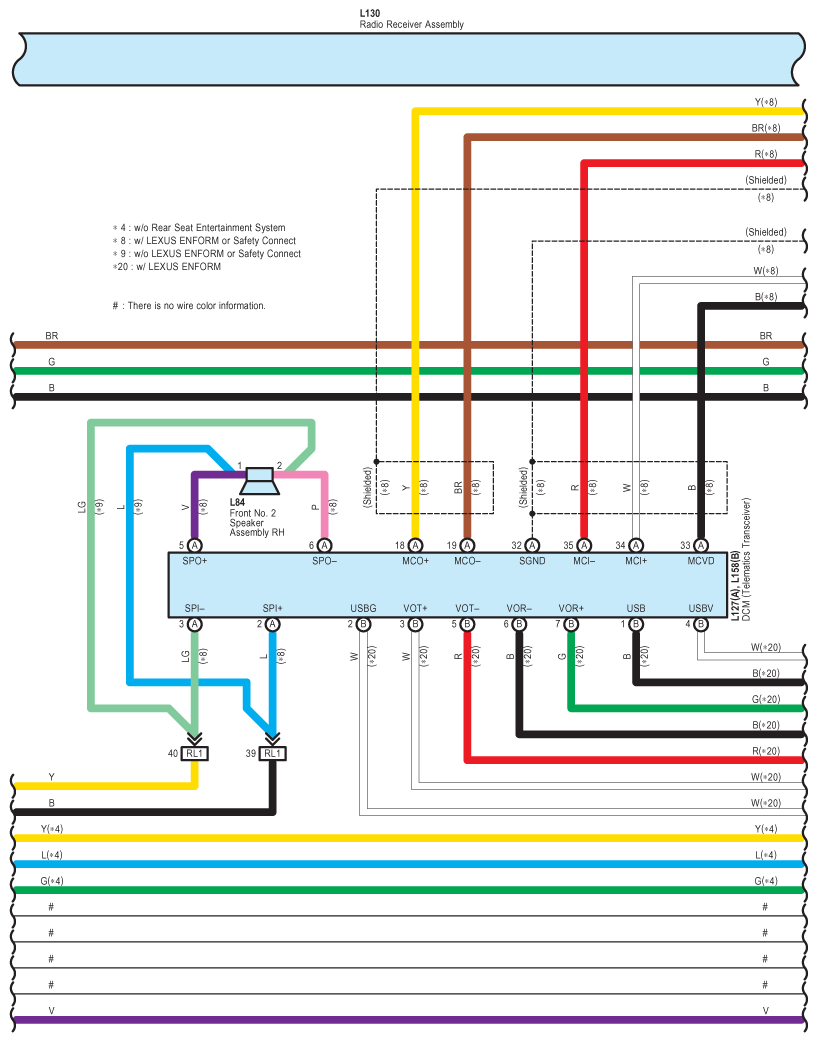

Fig 7: Audio System And LEXUS Navigation System - Wiring Diagram (7 Of 24)

G08937089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

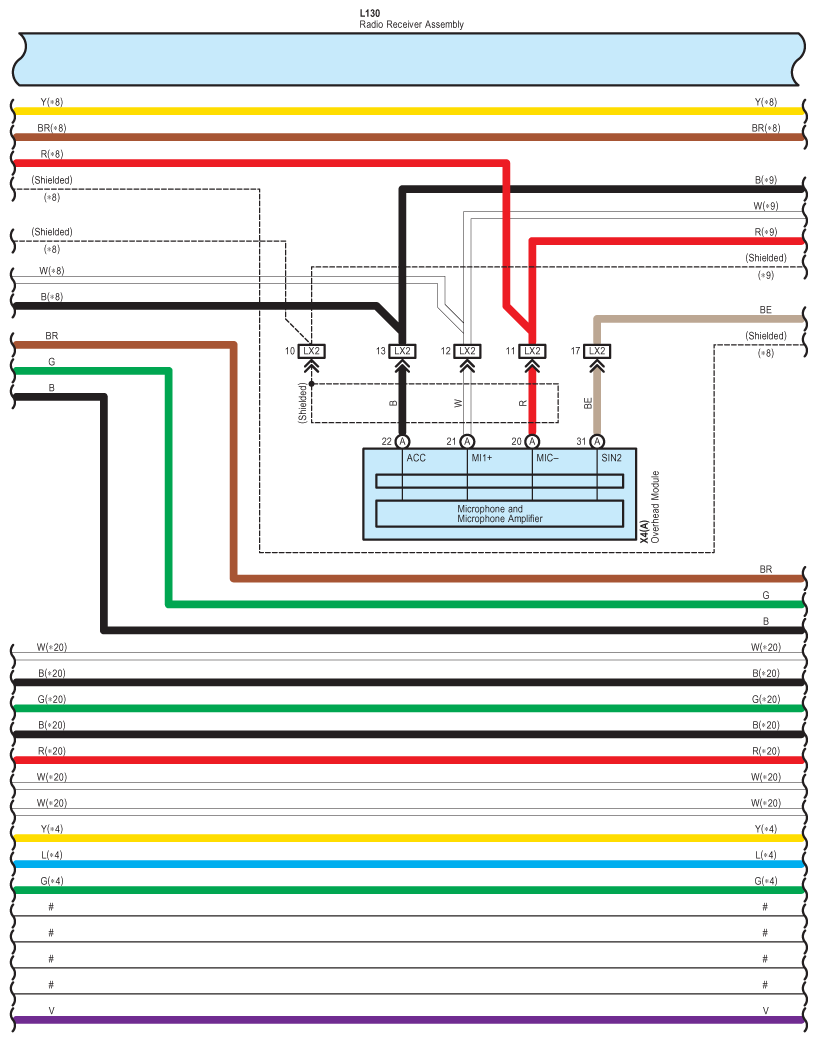

Fig 8: Audio System And LEXUS Navigation System - Wiring Diagram (8 Of 24)

G08937090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

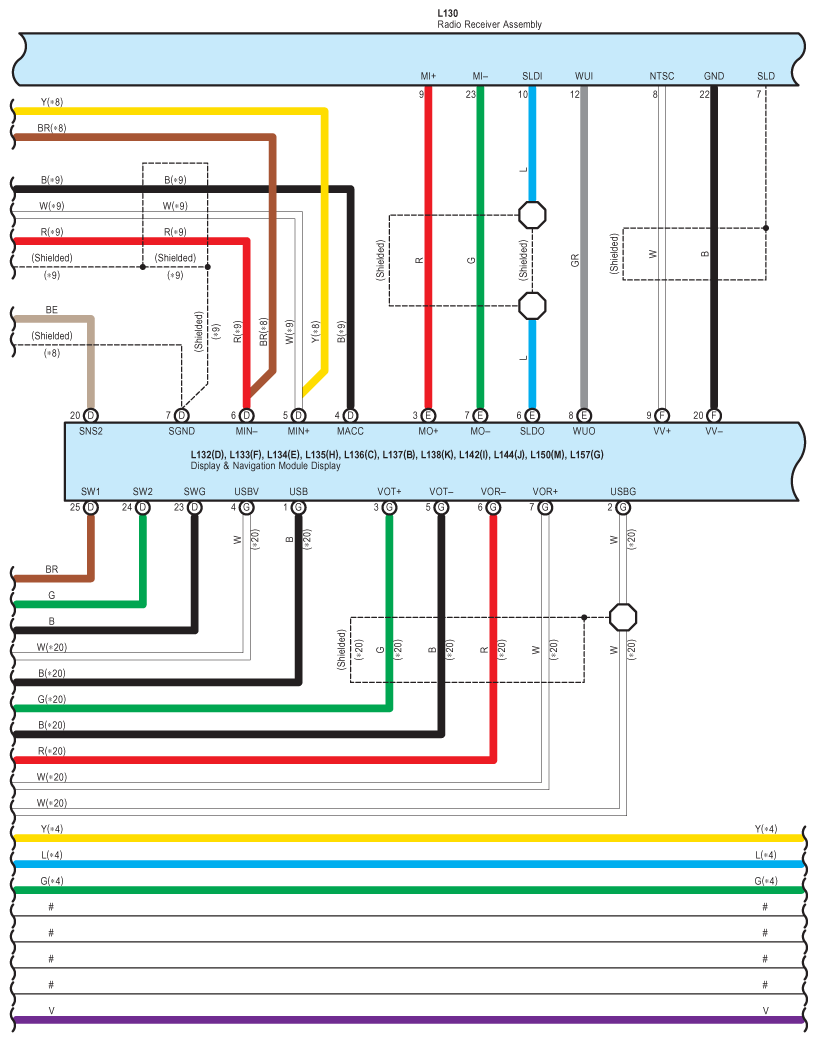

Fig 9: Audio System And LEXUS Navigation System - Wiring Diagram (9 Of 24)

G08937091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

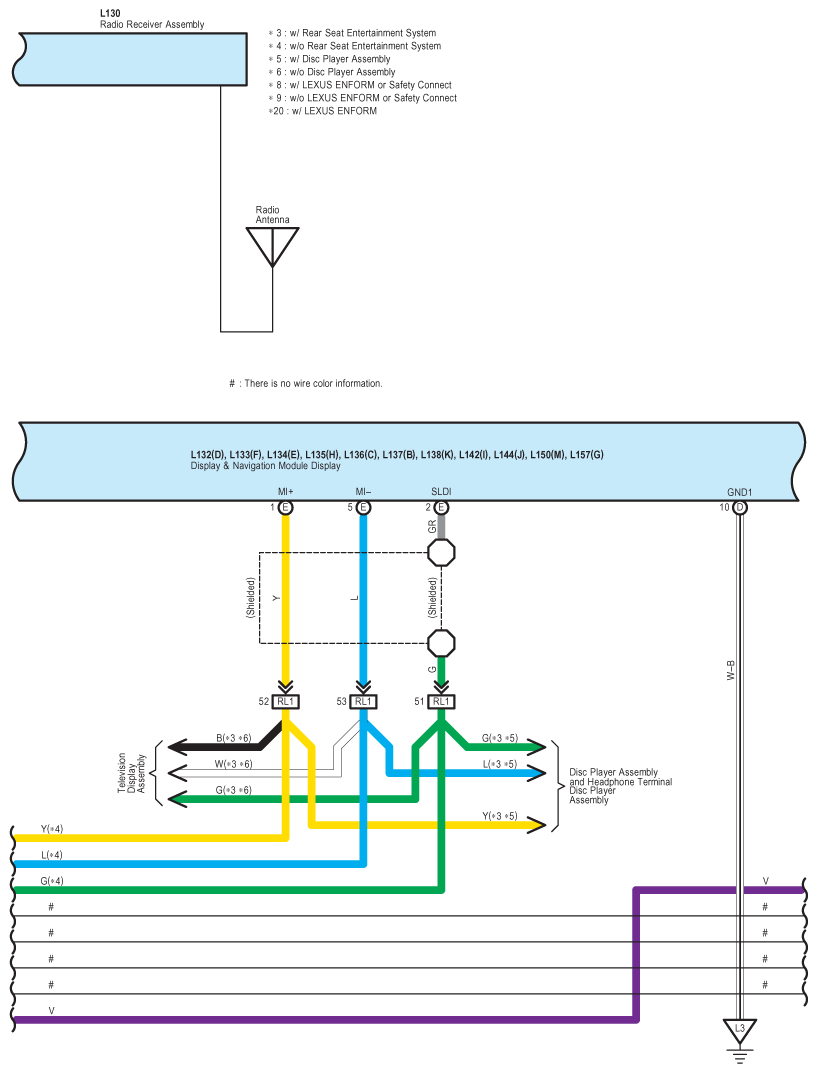

Fig 10: Audio System And LEXUS Navigation System - Wiring Diagram (10 Of 24)

G08937092

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

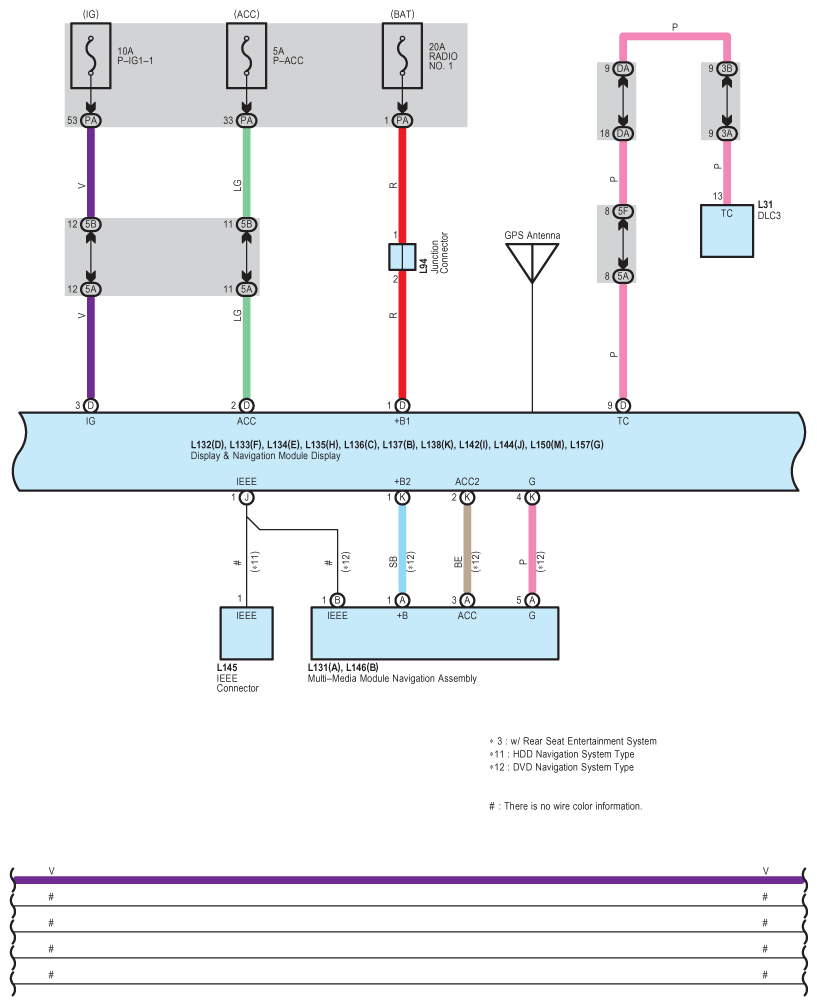

Fig 11: Audio System And LEXUS Navigation System - Wiring Diagram (11 Of 24)

G08937093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System And LEXUS Navigation System - Wiring Diagram (12 Of 24)

G08937094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

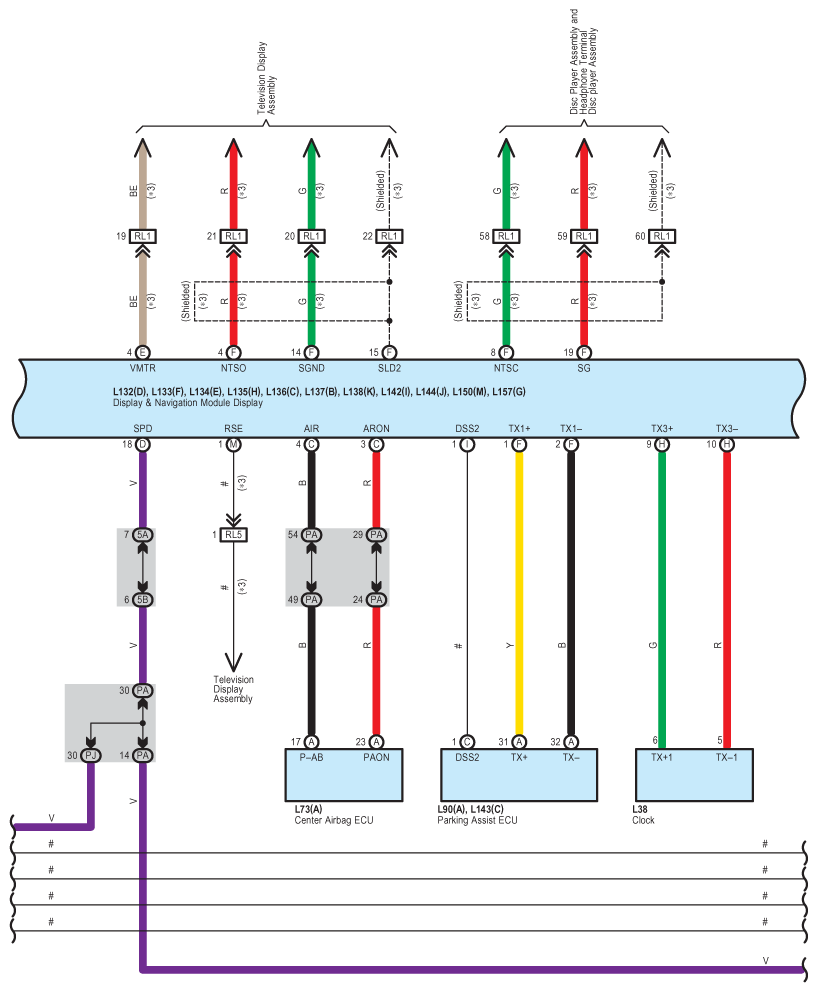

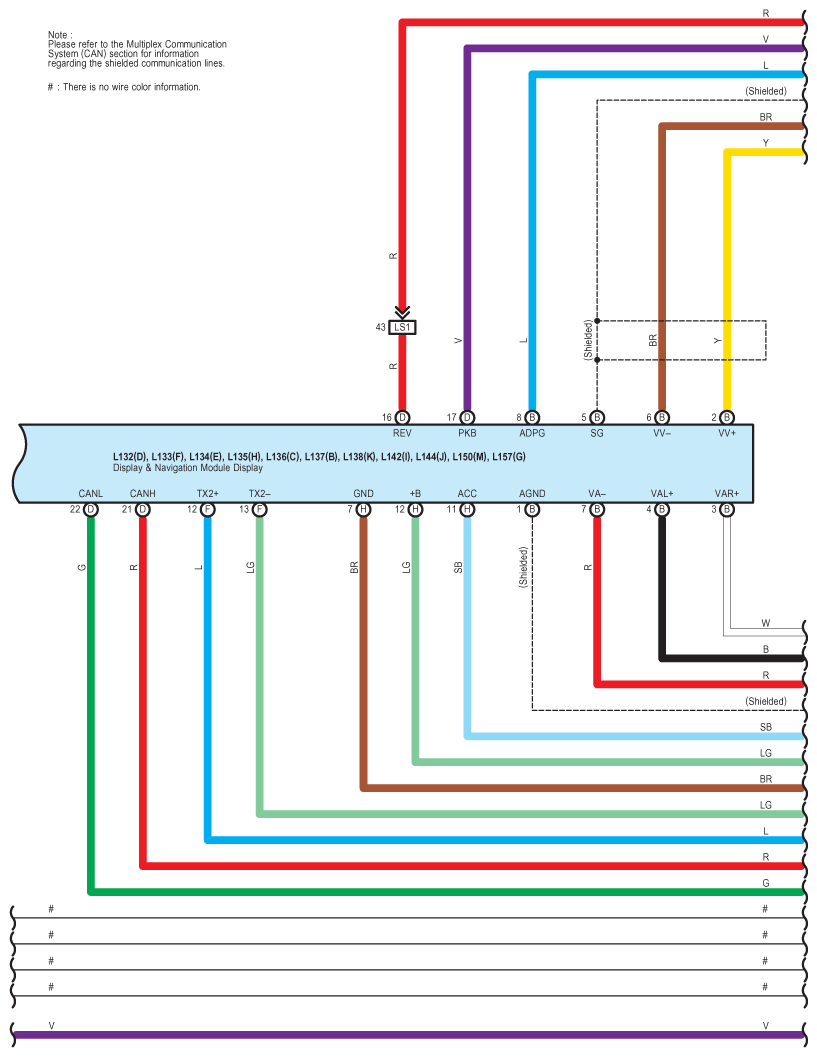

Fig 13: Audio System And LEXUS Navigation System - Wiring Diagram (13 Of 24)

G08937095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

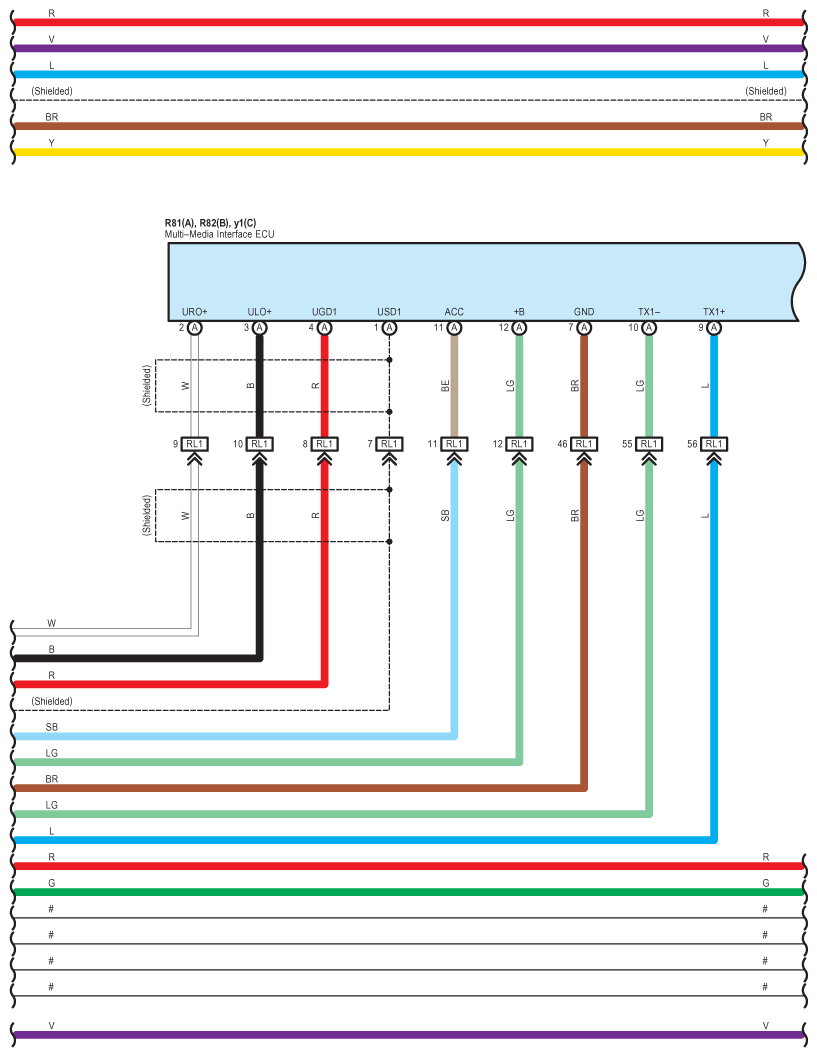

Fig 14: Audio System And LEXUS Navigation System - Wiring Diagram (14 Of 24)

G08937096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Audio System And LEXUS Navigation System - Wiring Diagram (15 Of 24)

G08937097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

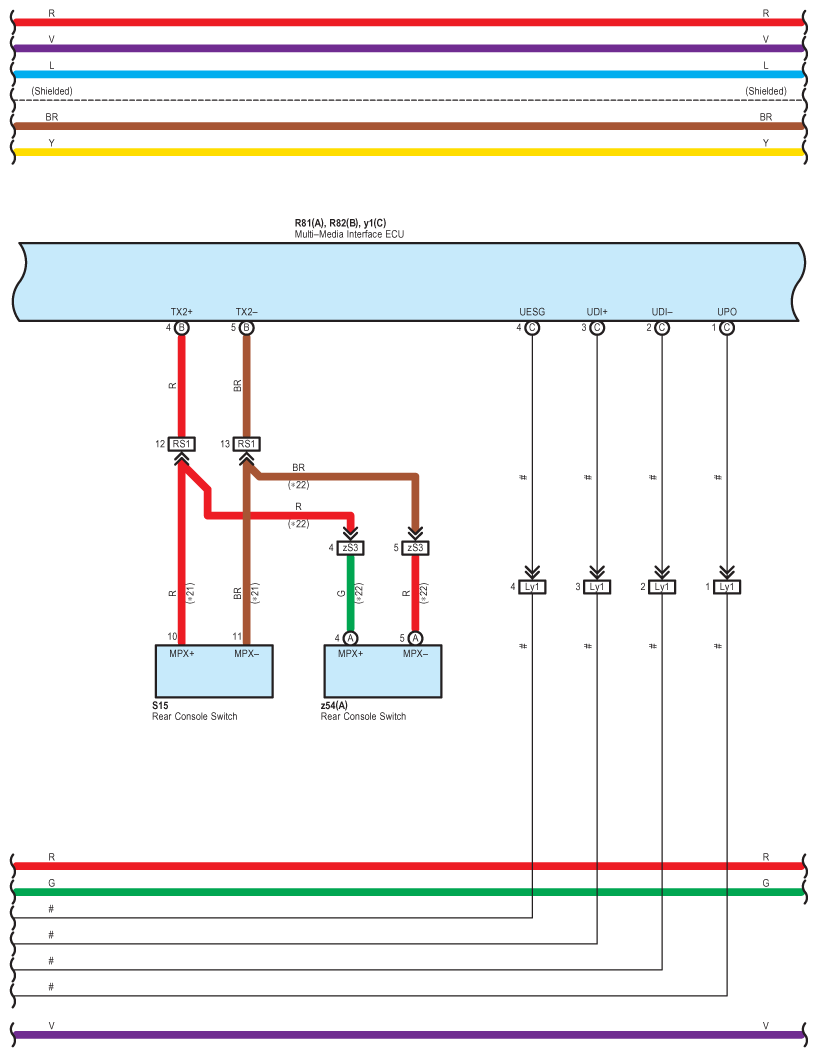

Fig 16: Audio System And LEXUS Navigation System - Wiring Diagram (16 Of 24)

G08937098

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

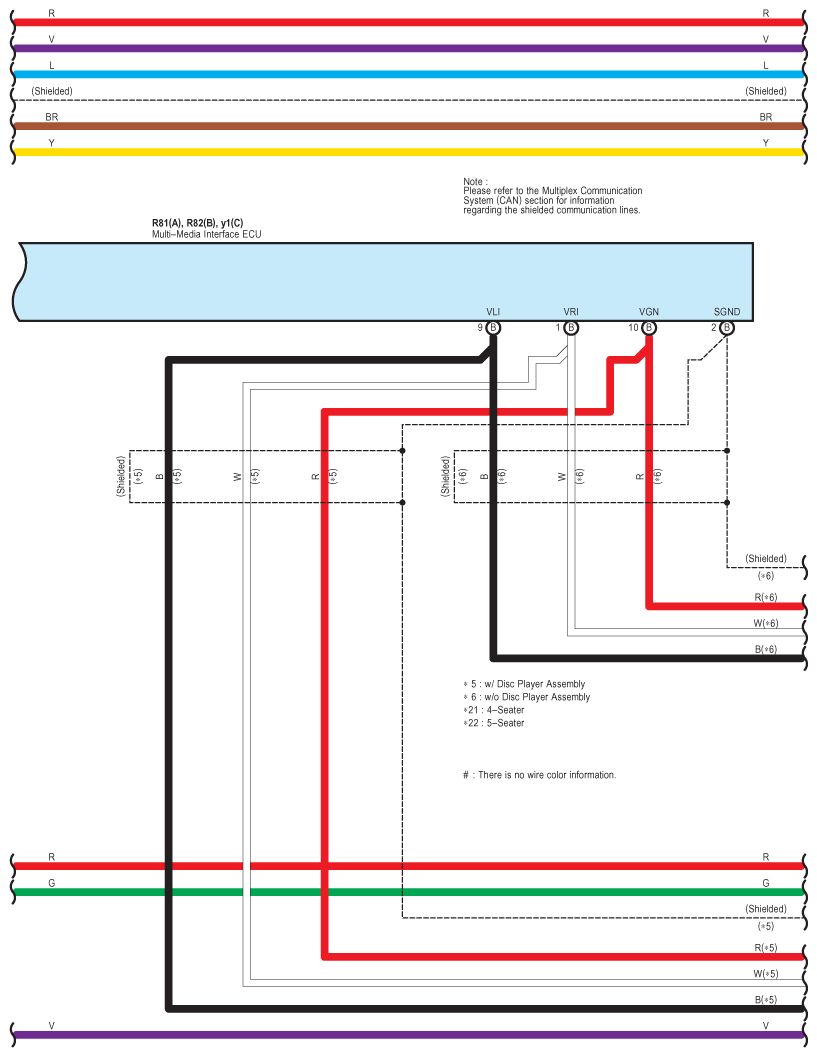

Fig 17: Audio System And LEXUS Navigation System - Wiring Diagram (17 Of 24)

G08937099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

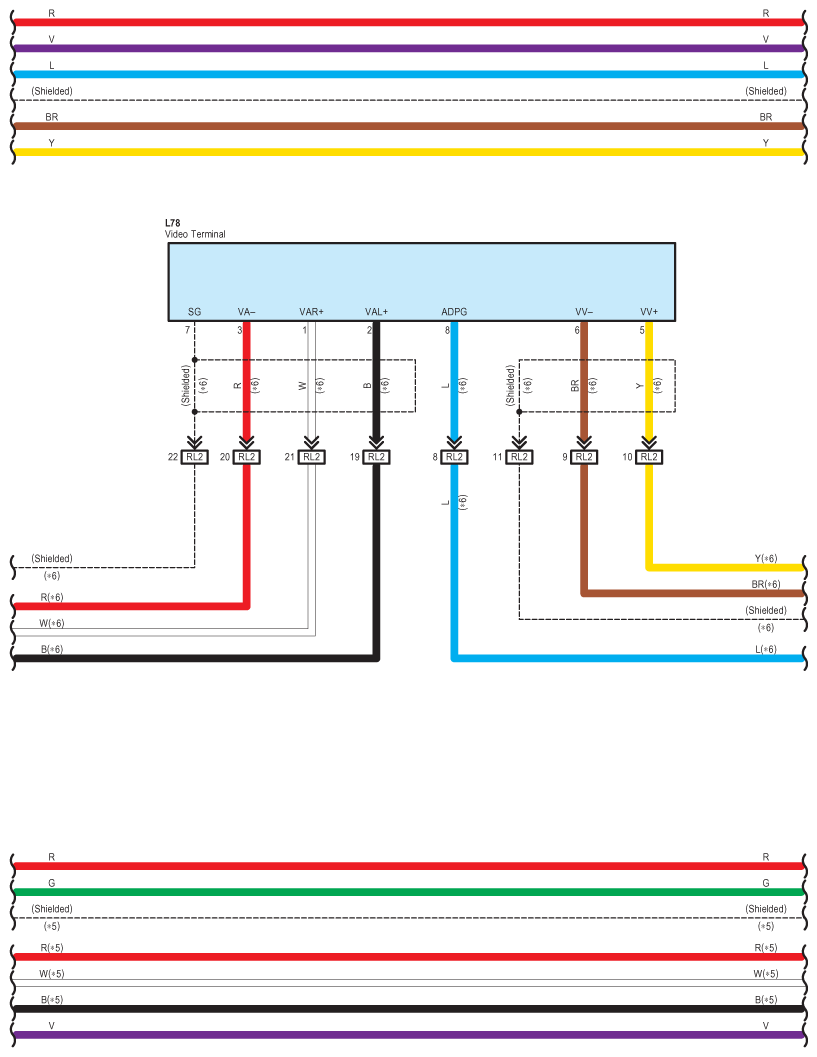

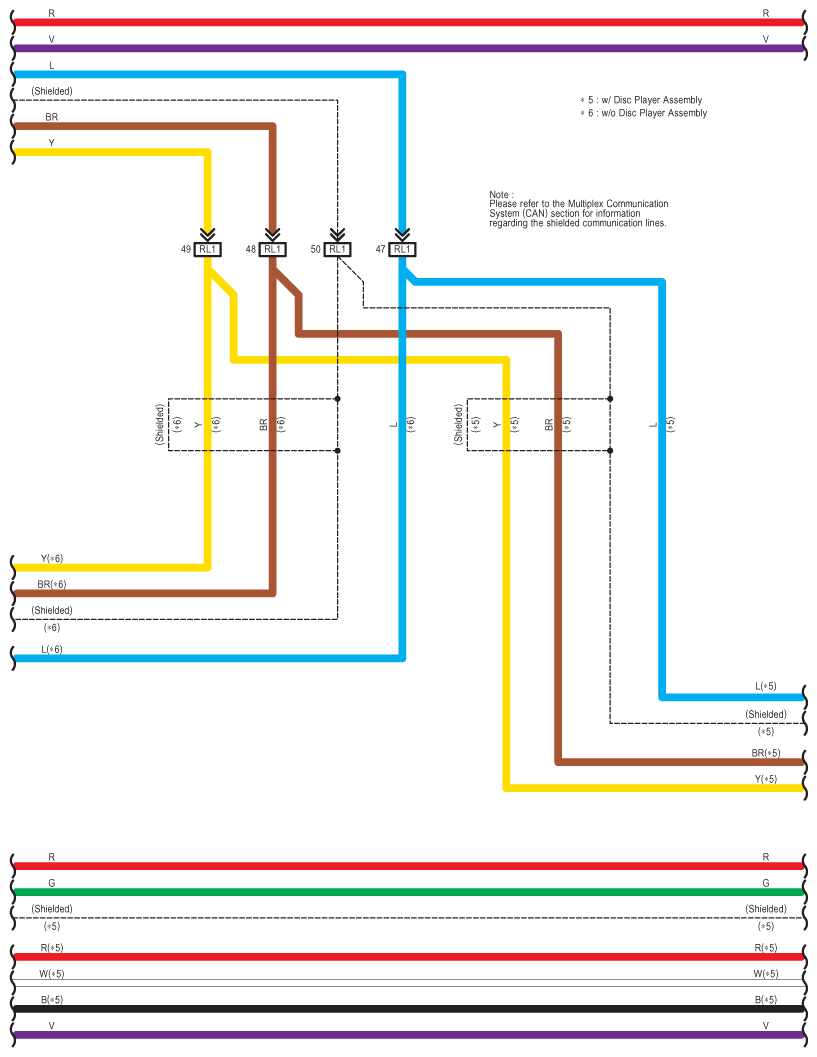

Fig 18: Audio System And LEXUS Navigation System - Wiring Diagram (18 Of 24)

G08937100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

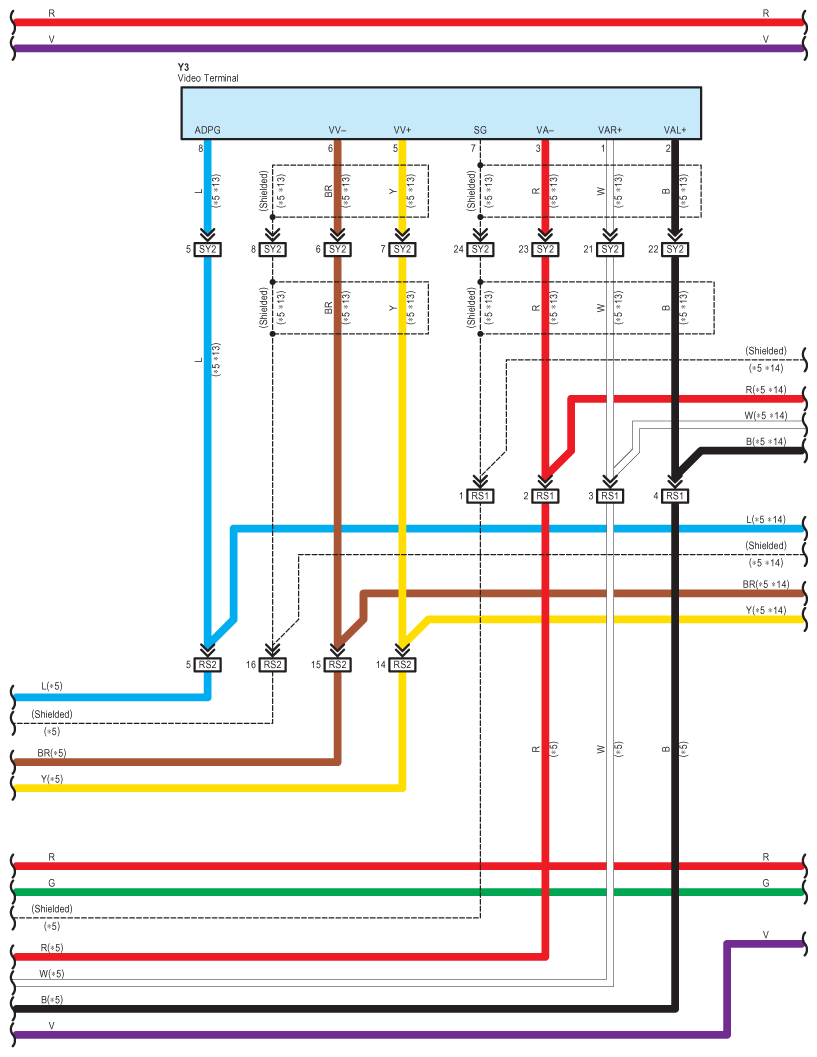

Fig 19: Audio System And LEXUS Navigation System - Wiring Diagram (19 Of 24)

G08937101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

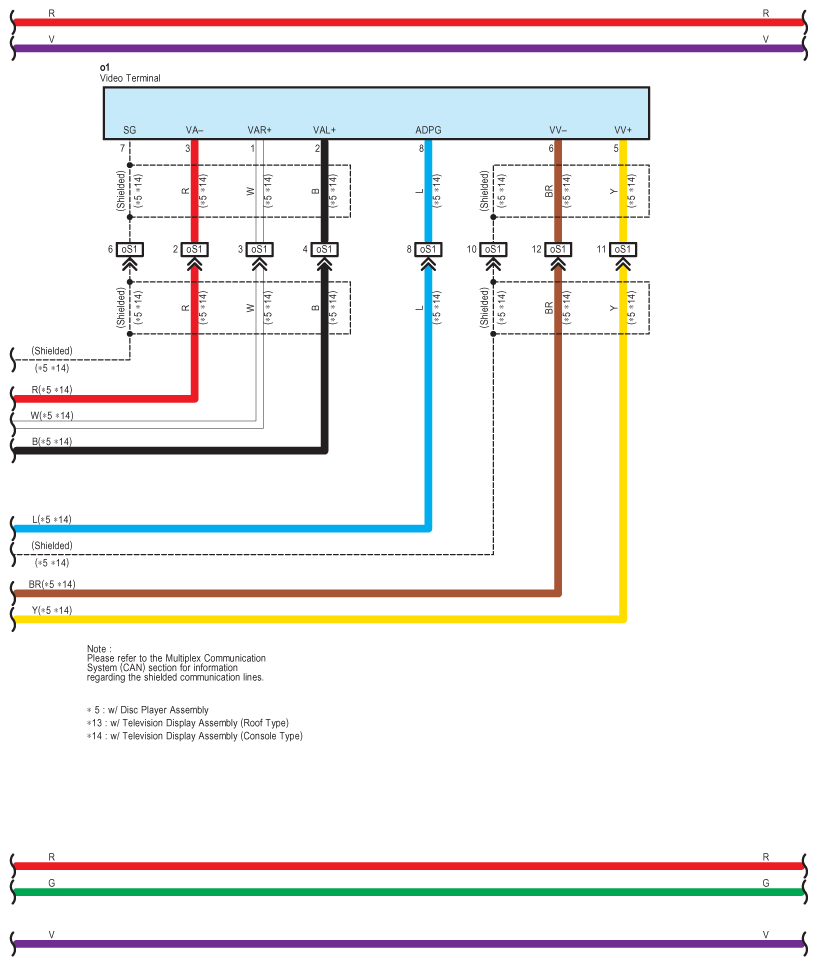

Fig 20: Audio System And LEXUS Navigation System - Wiring Diagram (20 Of 24)

G08937102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

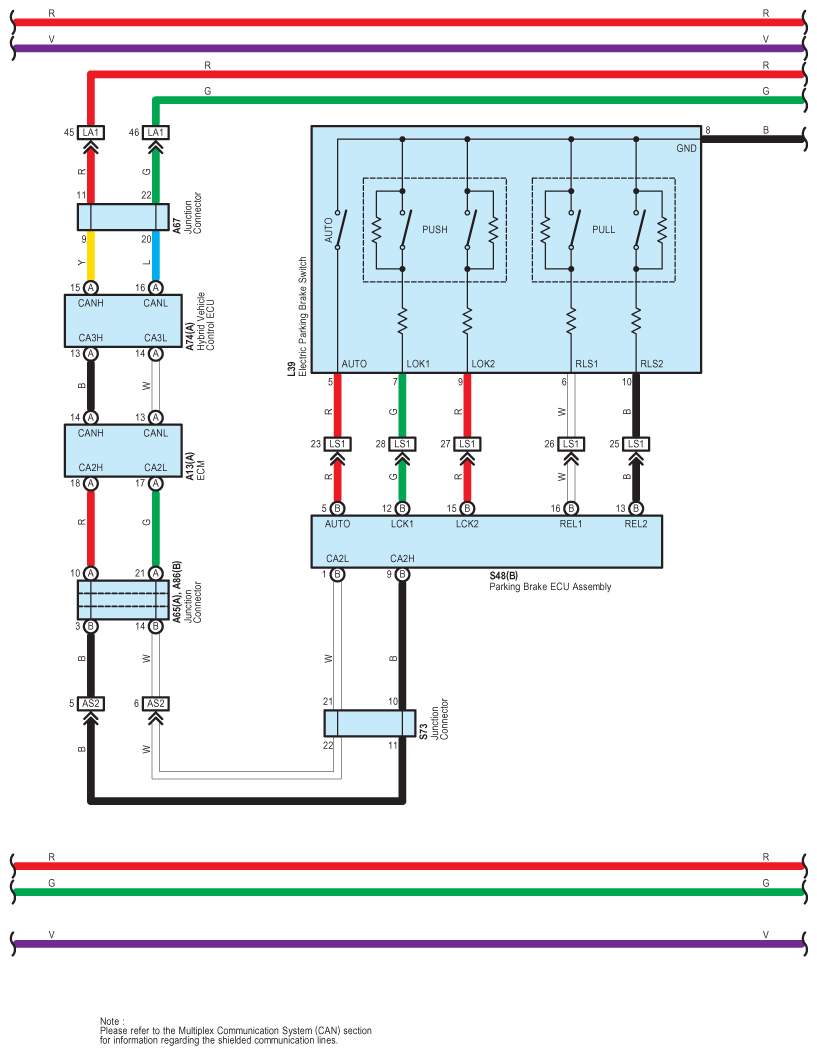

Fig 21: Audio System And LEXUS Navigation System - Wiring Diagram (21 Of 24)

G08937103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

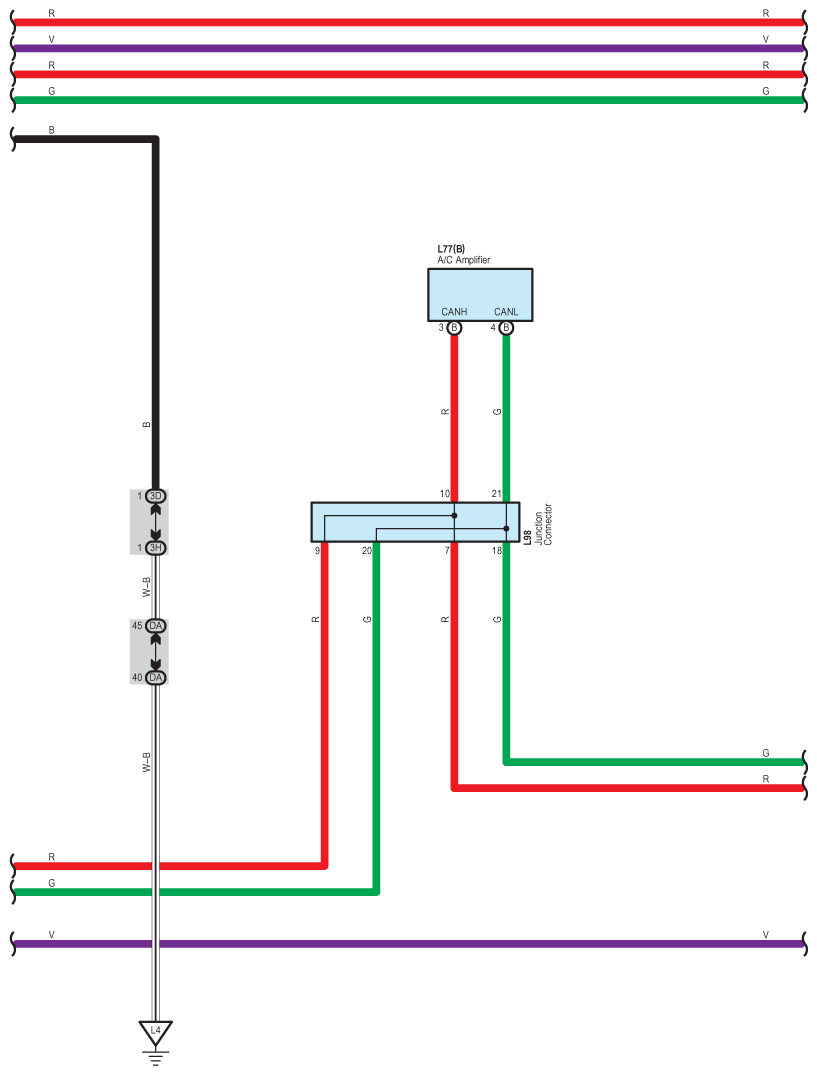

Fig 22: Audio System And LEXUS Navigation System - Wiring Diagram (22 Of 24)

G08937104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

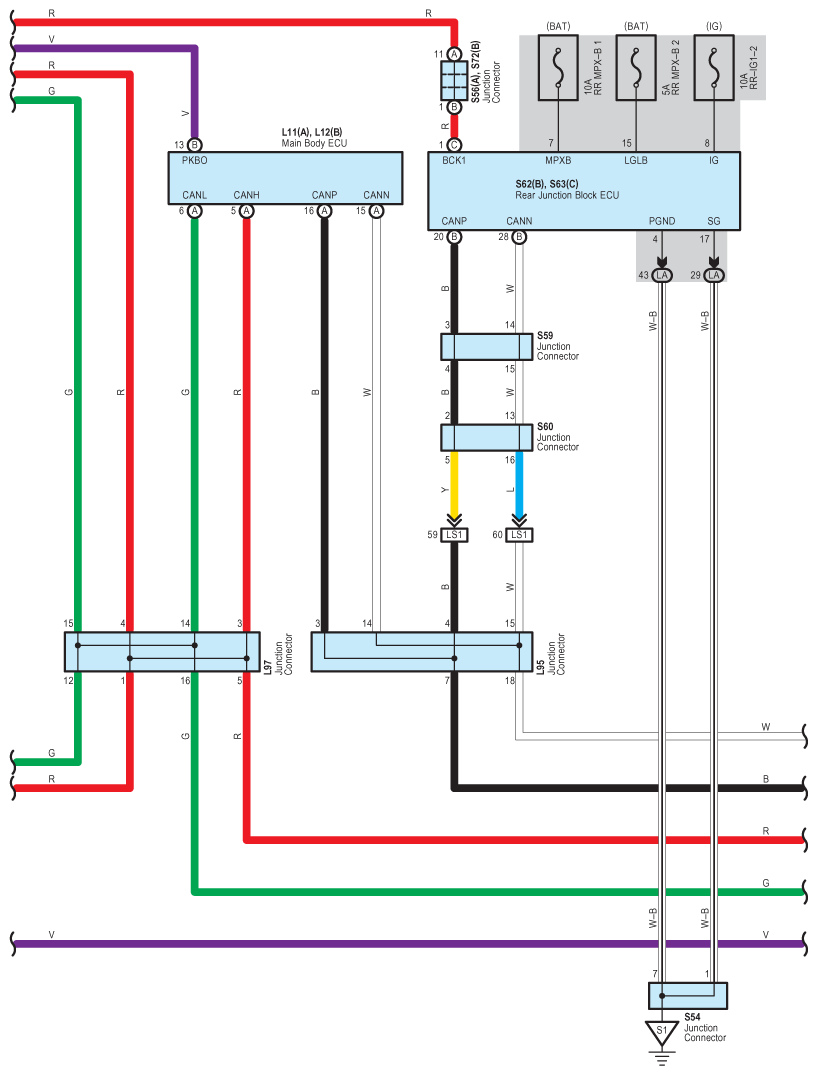

Fig 23: Audio System And LEXUS Navigation System - Wiring Diagram (23 Of 24)

G08937105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

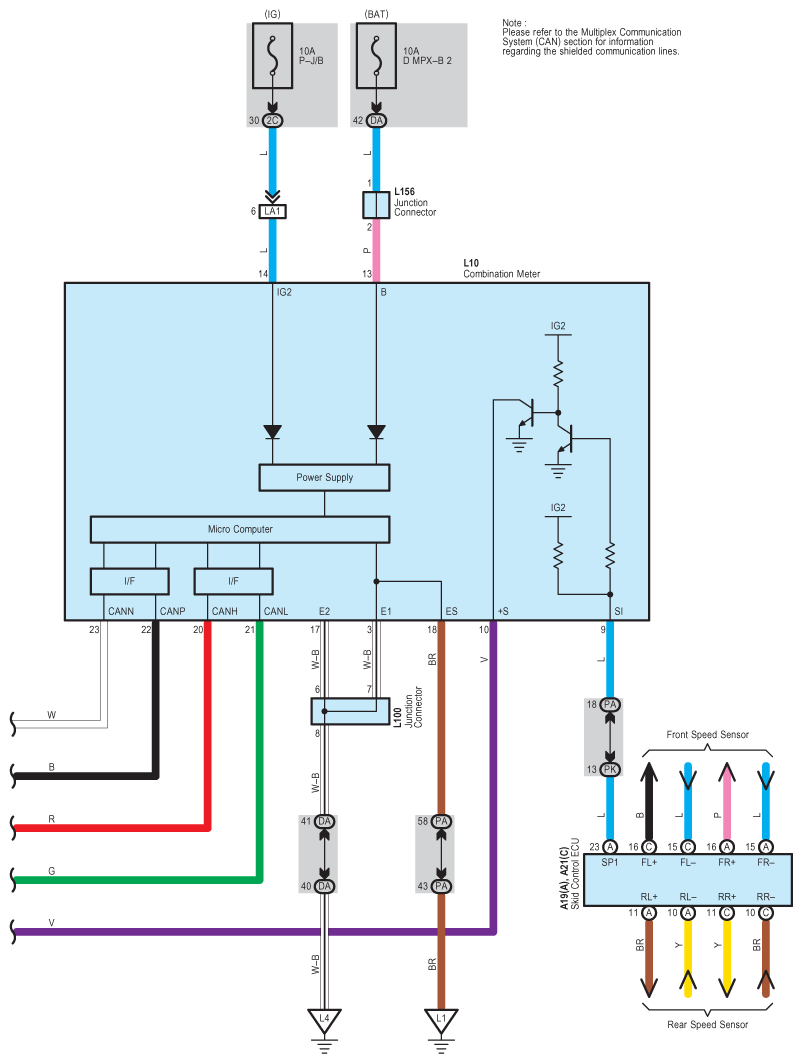

Fig 24: Audio System And LEXUS Navigation System - Wiring Diagram (24 Of 24)

G08937106
