Sound Signal Circuit between Navigation ECU and Multi-media Interface ECU: Wiring Diagram

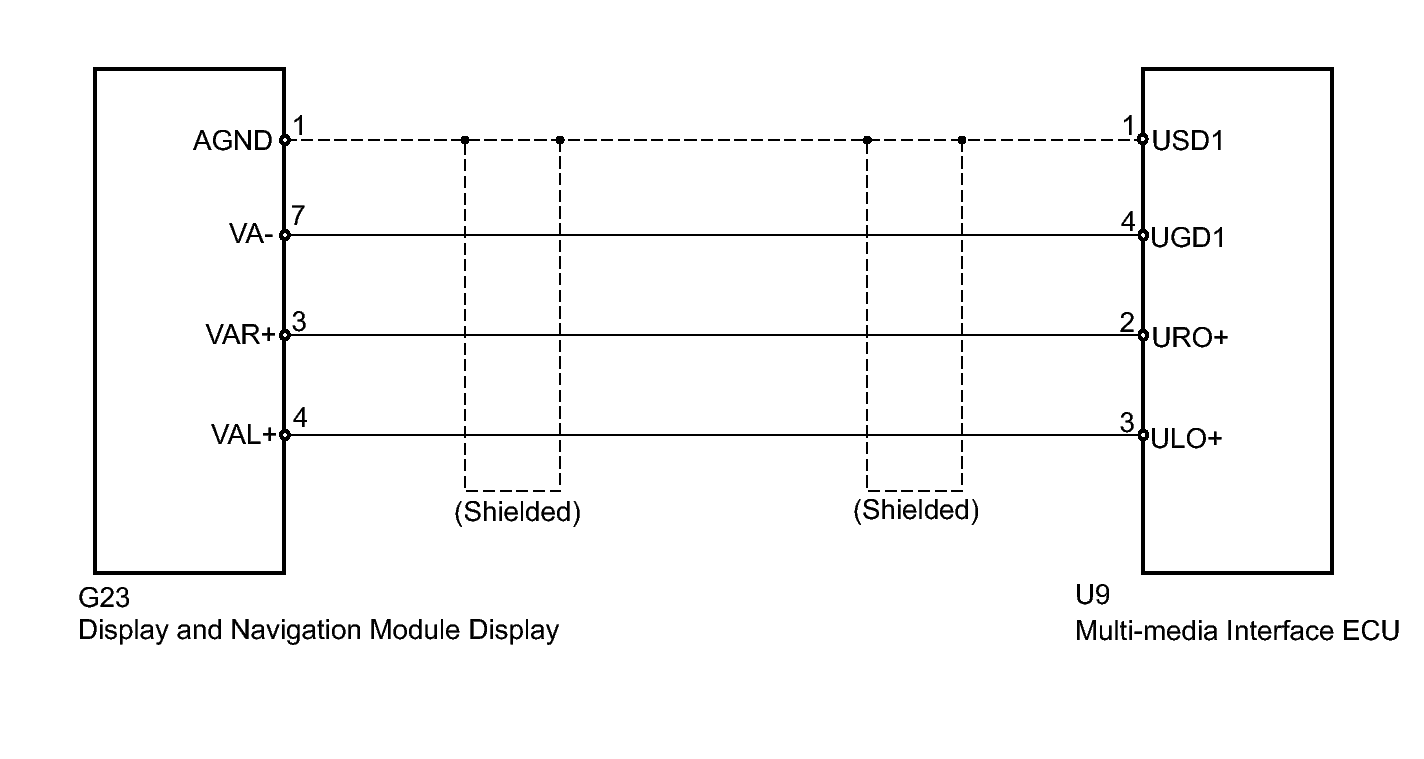

Fig 1: Identifying Sound Signal Circuit Wiring Diagram
GTY356691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
