Engine Room Relay Block Assembly and Engine Room Junction Block Assembly Inner Circuit

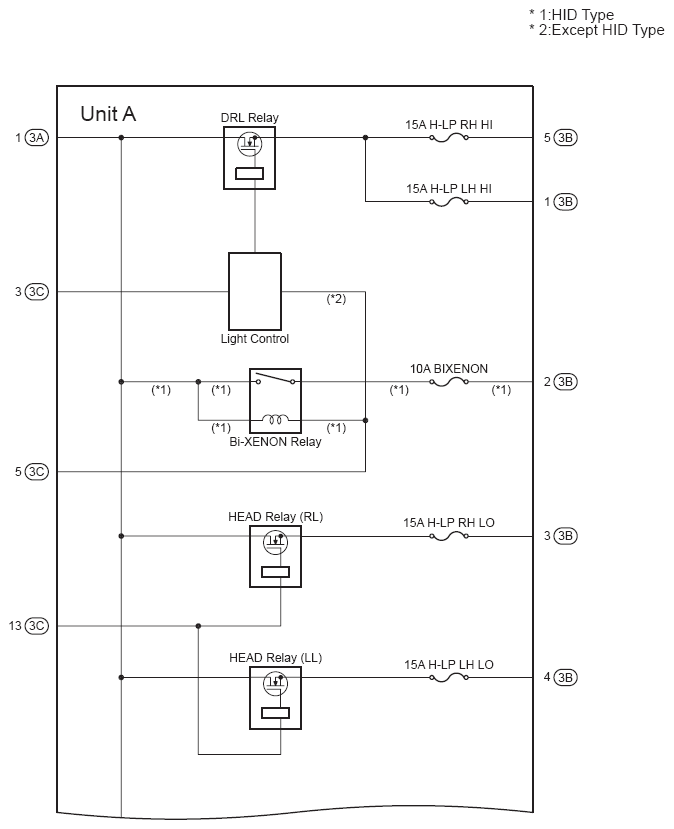

Fig 1: Engine Room R/B Assembly And J/B Assembly Inner Circuit Diagram (1 Of 2) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL Relay
Bi-XENON Relay
Head Relay (RL)
Head Relay (LL)

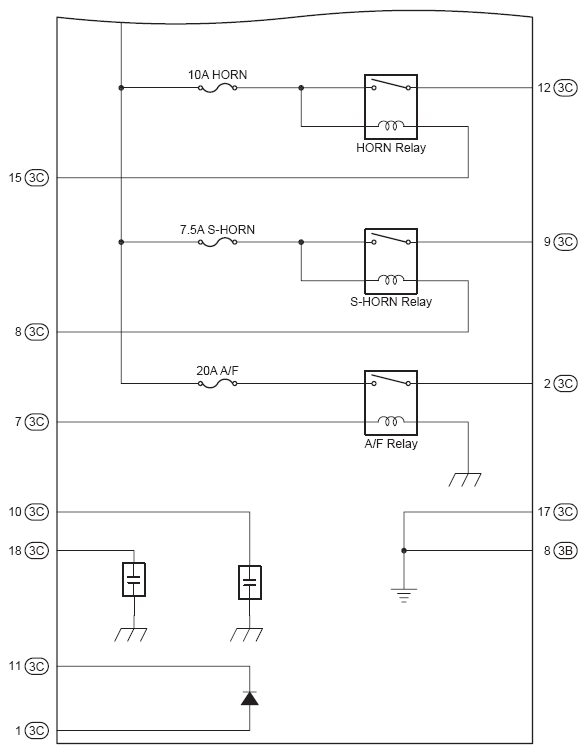

Fig 2: Engine Room R/B Assembly And J/B Assembly Inner Circuit Diagram (2 Of 2) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
Horn Relay
S-Horn Relay
A/F Relay
