Open in CAN Main Bus Line: Wiring Diagram

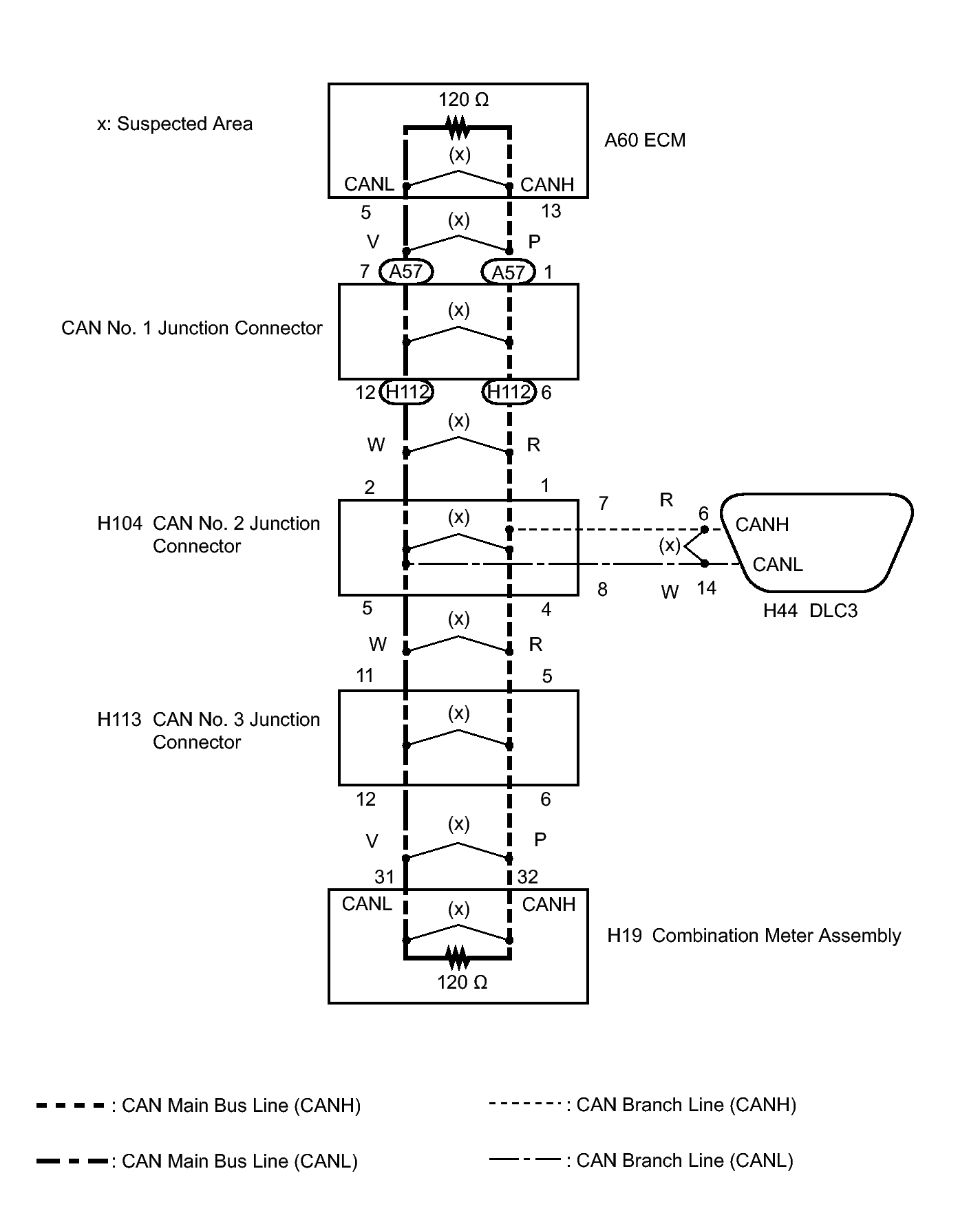

Fig 1: Identifying Open in CAN Main Bus Line Wiring Diagram
GTY355446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
