Multi-media Module Receiver Assembly Communication Stop Mode: Procedure

1. Turn the power switch off.
2. Disconnect the H140 multi-media module receiver assembly connector.
   Fig 1: Identifying H140 Harness Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multi-media Module Receiver Assembly)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H140-1 (CANH) - H140-2 (CANL)	Power switch off	54 to 69 Ω

NG → REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (MULTI-MEDIA MODULE RECEIVER ASSEMBLY)

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

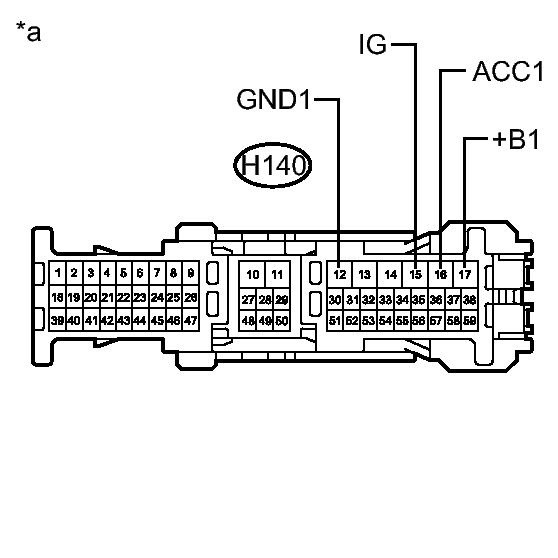

   Fig 2: Identifying H140 Harness Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H140-12 (GND1) - Body ground	Power switch off	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multi-media Module Receiver Assembly)

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H140-16 (ACC1) - Body ground	Power switch on (ACC)	11 to 14 V
   H140-17 (+B1) - Body ground	Power switch off	11 to 14 V
   H140-15 (IG) - Body ground	Power switch on (IG)	11 to 14 V

   Result

   Result	Proceed to
   OK (w/ Navigation system)	A
   OK (w/o Navigation system with multi-display)	B
   NG	C

B → See step   4

C → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

A → See step   3
