Visual Mute Signal Circuit Between Navigation Receiver Assembly And Multi-Display: Procedure

INSPECT MULTI-MEDIA MODULE WIRE

Measure the voltage according to the value(s) in the table below.

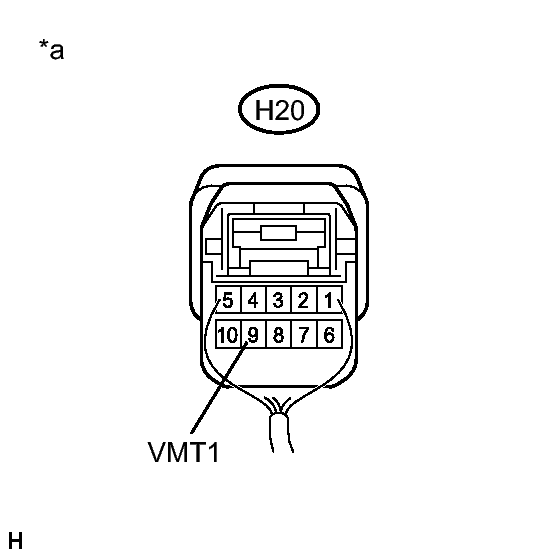

Fig 1: Identifying H20 Harness Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Voltage

Tester Connection	Condition	Specified Condition
H20-9 (VMT1) - Body ground	Power switch on (ACC), screen display changes.	3.5 V or higher → Below 1 V → 3.5 V or higher

TEXT IN ILLUSTRATION

*a	Component with harness connected (Multi-media Module Wire)

NG → See step 2

OK → See step 5

CHECK HARNESS AND CONNECTOR (MULTI-MEDIA MODULE WIRE - MULTI-MEDIA MODULE RECEIVER ASSEMBLY)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
H20-9 (VMT1) - H140-10 (VMTF)	Always	Below 1 Ω
H20-9 (VMT1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

REPLACE MULTI-MEDIA MODULE WIRE
1. Replace the multi-media module wire and check if the navigation system operates normally. Refer to DISASSEMBLY [08/2012 - ] .
  OK

  The navigation system operates normally.
NG → See step 4

OK → END
REPLACE MULTI-DISPLAY
1. Replace the multi-display and check if the navigation system operates normally. Refer to DISASSEMBLY [08/2012 - ] .
  OK

  The navigation system operates normally.
NG → See step 6

OK → END
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [08/2012 - ]
REPLACE MULTI-MEDIA MODULE RECEIVER ASSEMBLY. Refer to REMOVAL [08/2012 - ]
