System Diagram [06/2012 - ]

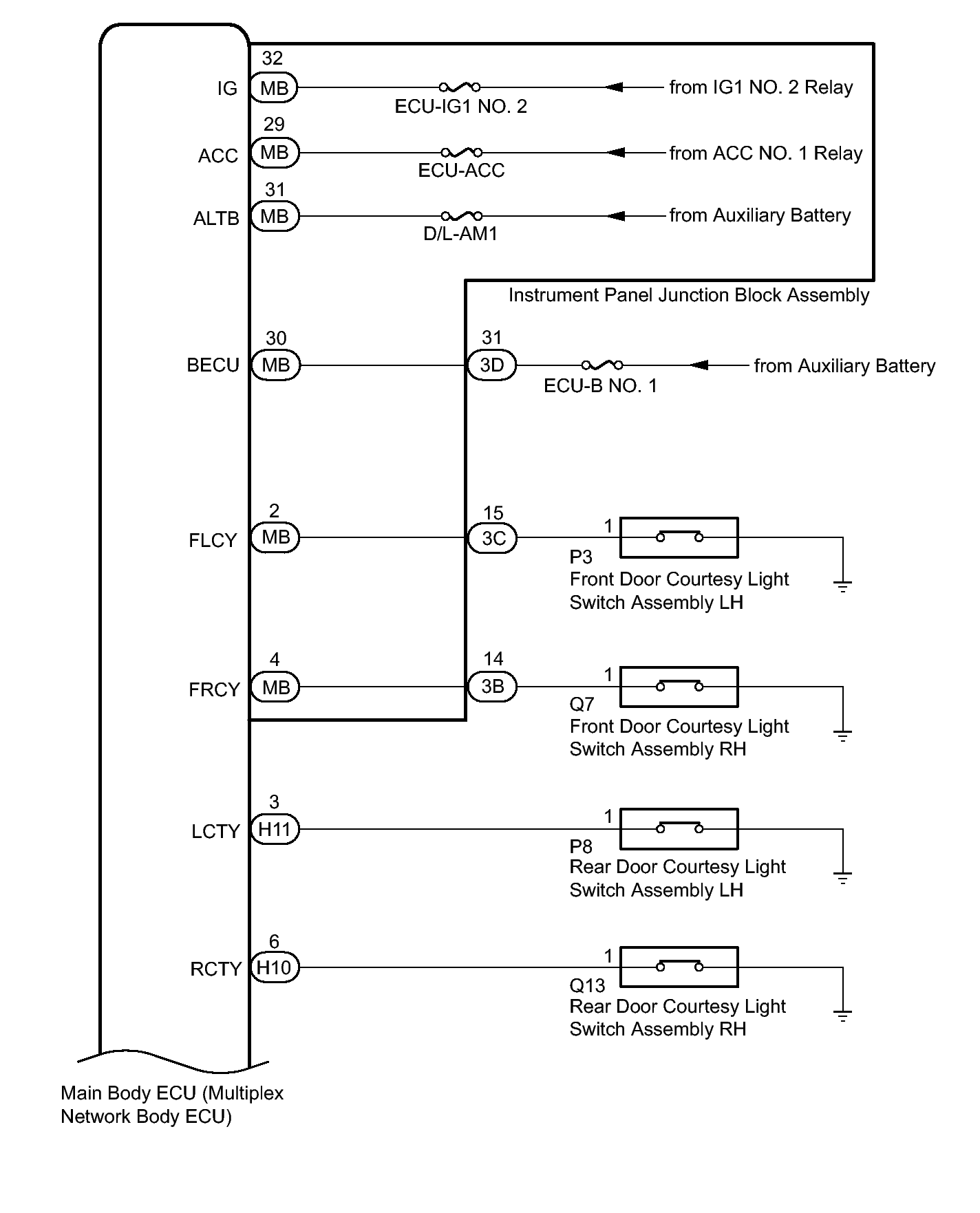

Fig 1: Identifying Power Door Lock Control System Wiring Diagram (1 Of 3)
GTY409081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Power Door Lock Control System Wiring Diagram (2 Of 3)
GTY410668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

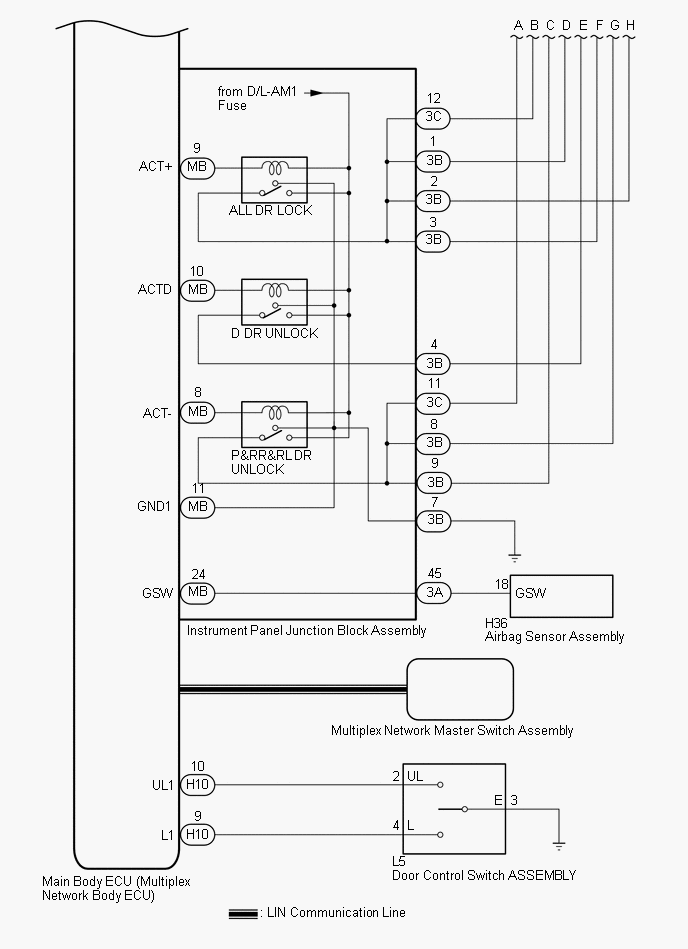

Fig 3: Identifying Power Door Lock Control System Wiring Diagram (3 Of 3)
GTY412010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
