Audio System (w/o LEXUS Navigation System w/Multimedia Module Display), Parking Assist (Rear View Monitor w/o LEXUS Navigation System)

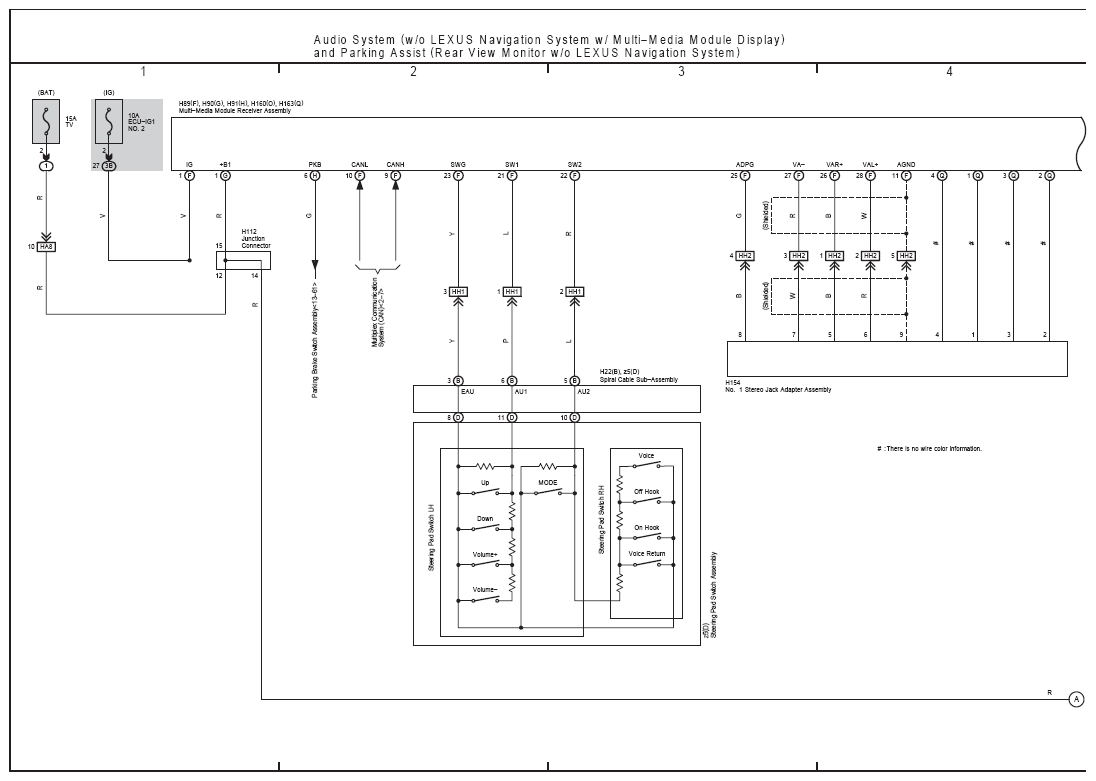

Fig 1: Audio System (W/O Lexus Navigation System W/Multi-Media Module Display) And Parking Assist (Rear View Monitor W/O LEXUS Navigation System) Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

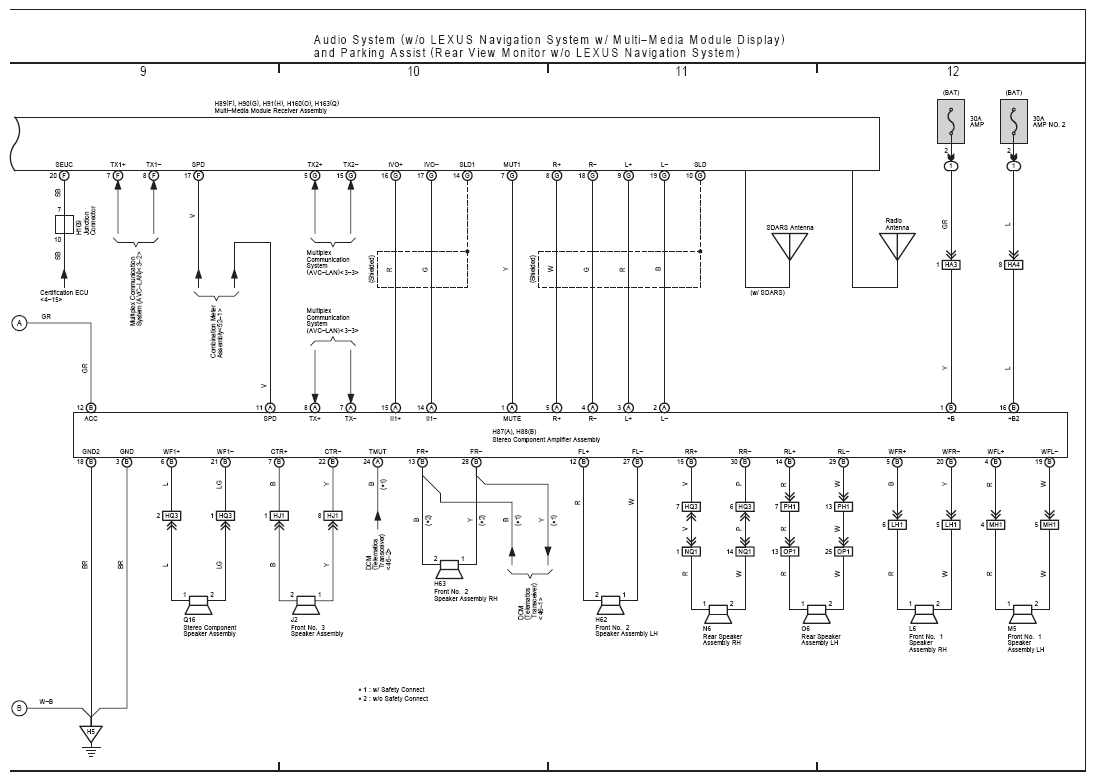

Fig 2: Audio System (W/O Lexus Navigation System W/Multi-Media Module Display) And Parking Assist (Rear View Monitor W/O LEXUS Navigation System) Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

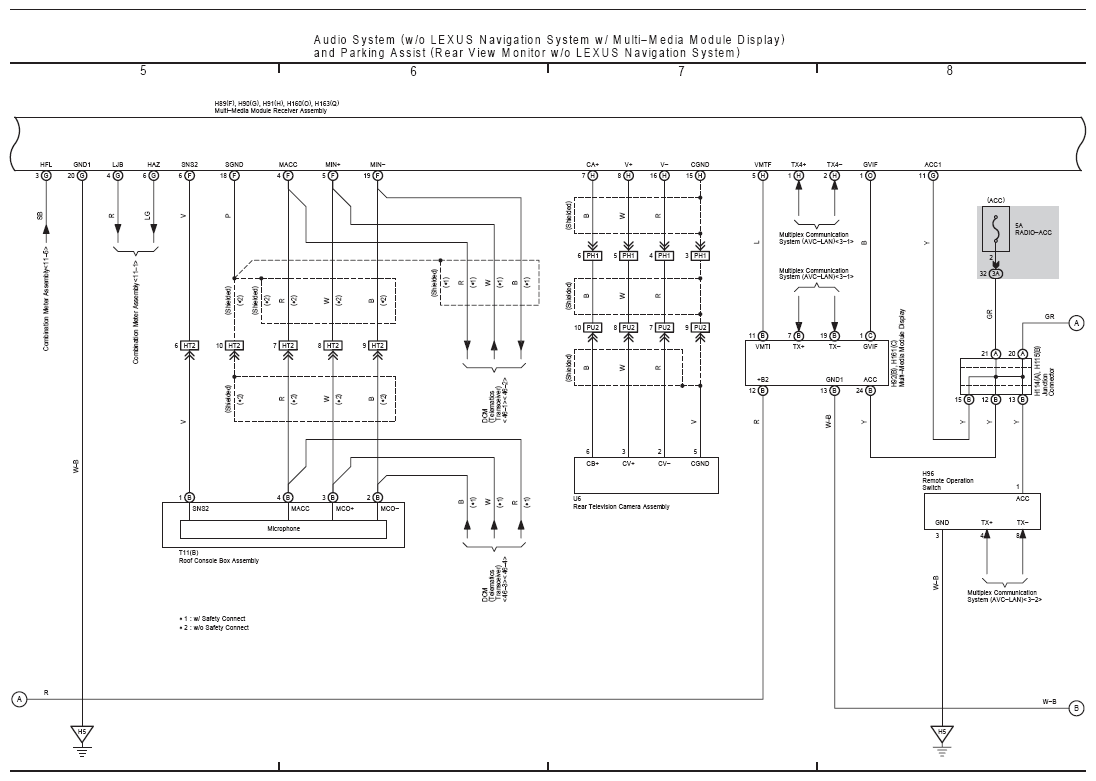

Fig 3: Audio System (W/O Lexus Navigation System W/Multi-Media Module Display) And Parking Assist (Rear View Monitor W/O LEXUS Navigation System) Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
