Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter: Procedure

1. Disconnect the H98 multi-media module receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the H154 No. 1 stereo jack adapter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H98-16 (ADPG) - H154-9 (AUXO)	Always	Below 1 Ω
   H98-7 (VAR+) - H154-6 (ARO)	Always	Below 1 Ω
   H98-8 (VAL+) - H154-7 (ALO)	Always	Below 1 Ω
   H98-15 (VA-) - H154-8 (ASGN)	Always	Below 1 Ω
   H98-5 (AGND) - H154-10 (AGND)	Always	Below 1 Ω
   H98-16 (ADPG) - Body ground	Always	10 kΩ or higher
   H98-7 (VAR+) - Body ground	Always	10 kΩ or higher
   H98-8 (VAL+) - Body ground	Always	10 kΩ or higher
   H98-15 (VA-) - Body ground	Always	10 kΩ or higher
   H98-5 (AGND) - Body ground	Always	10 kΩ or higher

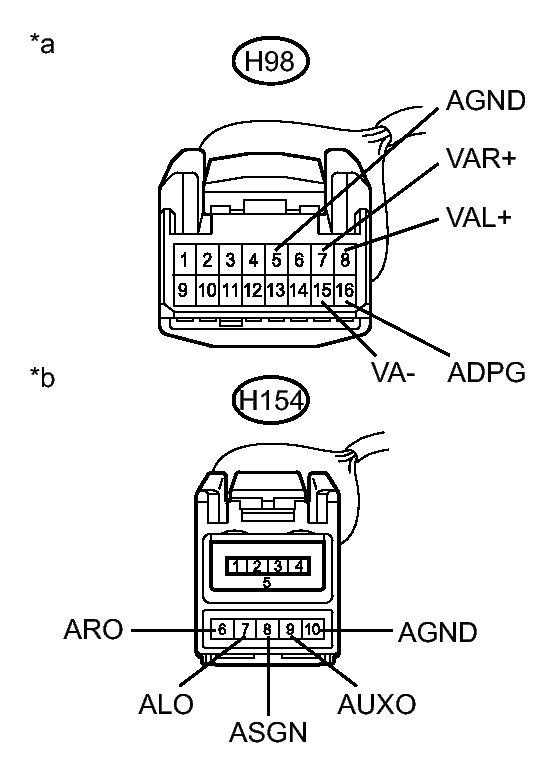

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multi-media Module Receiver Assembly)
   *b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
