DTC B27A5: Open in Front Floor Electrical Key Oscillator Circuit: Procedure

1. Turn the engine switch off.
2. Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 1 indoor electrical key antenna assembly (front floor).

   OK

   Connectors are properly connected.

NG → CONNECT CONNECTORS PROPERLY

OK: Go to next step

1. Disconnect the A34 and N93 certification ECU (smart key ECU assembly) connectors.
2. Disconnect the N53 No. 1 indoor electrical key antenna assembly (front floor) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N93-3 (CLG5) - N53-1 (ANTE5)	Always	Below 1 Ω
   N93-2 (CG5B) - N53-3 (CLGB)	Always	Below 1 Ω
   A34-11 (E) - Body ground	Always	Below 1 Ω
   N93-3 (CLG5) or N53-1 (ANTE5) - Body ground	Always	10 kΩ or higher
   N93-2 (CG5B) or N53-3 (CLGB) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Connect the A34 and N93 certification ECU (smart key ECU assembly) connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

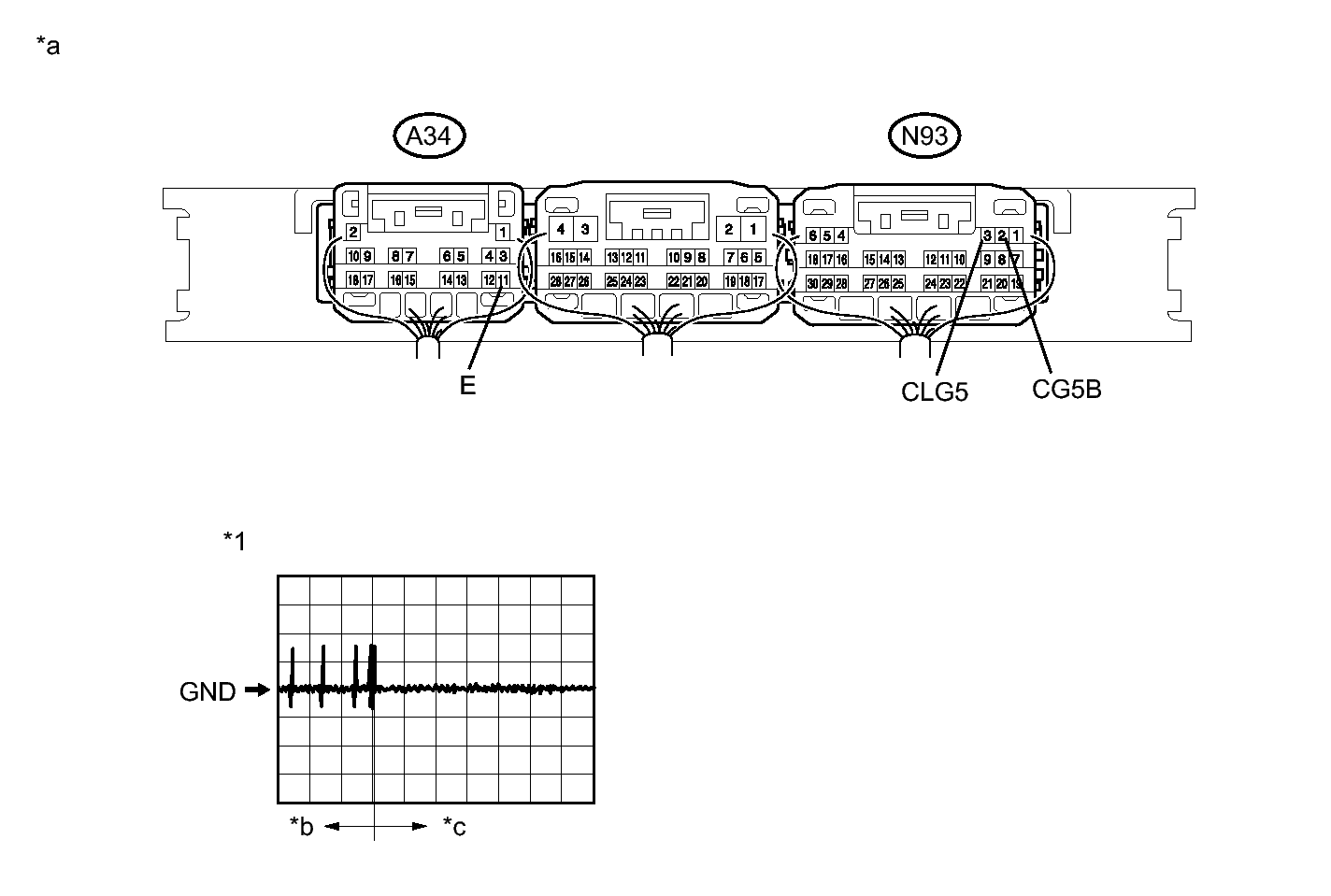

   TEXT IN ILLUSTRATION



   *1	Waveform	-	-
   *a	Component with harness connected (Certification ECU [Smart Key ECU Assembly])	*b	Within approximately 30 seconds from when the door is closed
   *c	After approximately 30 seconds from when the door is closed	-	-

2. Connect the N53 No. 1 indoor electrical key antenna assembly (front floor) connector.
3. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Switch Condition	Tool Setting	Specified Condition
   N93-3 (CLG5) - A34-11 (E)	Procedure: Engine switch off Electrical key transmitter sub-assembly not inside vehicle Door is open Door is closed Within 30 seconds	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)
   N93-2 (CG5B) - A34-11 (E)	Procedure: Engine switch off Electrical key transmitter sub-assembly not inside vehicle Door is open Door is closed Within 30 seconds	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

NG → See step   7

OK: Go to next step

1. Temporarily replace the No. 1 indoor electrical key antenna assembly (front floor) with a new or known good one. Refer to REMOVAL [12/2011 - ] .

NEXT: Go to next step

1. Clear the DTCs. Refer to DTC CHECK / CLEAR [12/2011 - ] .

NEXT: Go to next step

1. Check for DTCs. Refer to DTC CHECK / CLEAR [12/2011 - ] .

   OK

   DTC B27A5 is not output.

NG → See step   7

OK → END (NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY [FRONT FLOOR] WAS DEFECTIVE)
